Titan PowrLiner 2800 Gun Holder Assembly – Spray Gun Mounting Bracket
The Titan PowrLiner 2800 Gun Holder Assembly is the mounting component that secures the spray gun to the frame of the PowrLiner 2800 line striping machine. It positions the gun at the correct height and angle to produce clean, consistent lines during marking operations.
Fits
- Titan PowrLiner 2800 line striping machine
Where It Is Used
This assembly is installed on the front section of the Titan PowrLiner frame. It holds the spray gun firmly in place while the machine is pushed forward, helping maintain a steady spray path across pavement or turf surfaces. Accurate line striping depends on stable gun alignment. If the holder becomes bent, loose, or worn, it can affect line width, sharpness, and overall striping precision.
Function in Striping Applications
On any Titan sprayer configured for walk-behind striping, the gun holder assembly plays a critical role in line control. It helps:
- Maintain consistent spray tip height
- Support straight-line tracking
- Reduce vibration at the spray gun
- Provide stable positioning during curves and arcs
Because the PowrLiner 2800 is widely used in commercial striping, dependable Pavement Marking Sprayer Parts such as this holder assembly help contractors achieve uniform results on parking lots, roadways, and industrial floors.
Designed for Field Marking Work
The Titan paint sprayer. setup used in the PowrLiner series is also common in athletic field layout. Contractors marking soccer fields, football fields, and other sports facilities rely on accurate gun positioning supported by durable Field Marking Sprayer Parts. A secure gun holder ensures that the spray fan pattern remains aligned with the intended path, reducing overspray and helping maintain crisp line edges.
Component Details
- Application: Spray gun mounting and positioning
- Machine Compatibility: Titan PowrLiner 2800
- Location: Front spray assembly area
- Use Case: Pavement and athletic field striping
Always verify your machine model before ordering replacement components. For additional Titan PowrLiner parts and striping equipment support, here AllTitanParts.com we offer correct replacement assemblies for your equipment.

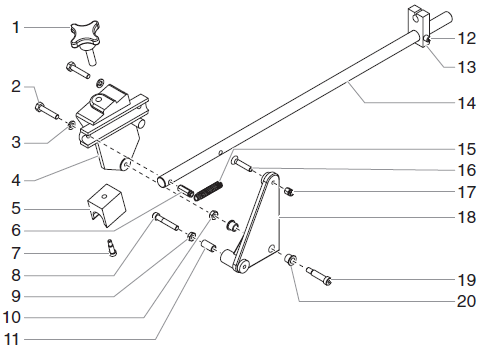

PowrLiner 2800 Gun Holder Assembly (P/N 779-276)
The PowrLiner 2800 Gun Holder Assembly is a crucial accessory that provides stability, support, and precise positioning for your spray gun during line striping operations. Designed for durability and ease of use, this assembly helps operators maintain consistent line quality while reducing fatigue and preventing damage to the spray gun. Using genuine Titan components ensures smooth functionality and long-lasting performance.
Key parts include the Titan 759-057 Holder Spring (Long), which provides tension to securely hold the spray gun in place; the Titan 424-249 Sleeve Bearing, which allows smooth movement of the holder arms without friction; and the Titan 424-224 Arm Support, which stabilizes the assembly and ensures proper alignment during operation. Together, these components help maintain control, improve ergonomics, and enhance overall efficiency on parking lots, roadways, and athletic fields.
FAQs
1. What is the purpose of the PowrLiner 2800 Gun Holder Assembly?
It securely holds the spray gun in position, providing stability and precise control during line striping operations.
2. How does the Titan 759-057 Holder Spring (Long) work?
The spring provides tension to keep the spray gun firmly in place while allowing smooth movement when adjusting or repositioning the gun.
3. What role does the Titan 424-249 Sleeve Bearing play?
The sleeve bearing reduces friction, allowing the gun holder arms to move smoothly for precise adjustments.
4. Why is the Titan 424-224 Arm Support important?
The arm support stabilizes the assembly, keeping the spray gun properly aligned and preventing wobbling or misplacement during operation.
5. How do I know when to service or replace the gun holder assembly parts?
Replace or service parts if the gun holder becomes loose, the spring loses tension, movement feels stiff, or alignment issues affect striping accuracy.
