Shop RX-80 Airless Spray Guns and Accessories
Shop RX-80 Airless Spray Guns and Accessories, a complete range of professional-grade spray guns, hoses, tips, and repair components designed for durability, comfort, and precise coating performance. The RX-80 Airless Spray Gun operates at a maximum pressure of 3600 PSI (24.8 MPa) and comes with either a two-finger or four-finger trigger, a no-build tip guard, and a 517 tip. Built for both contractors and industrial users, the RX-80 spray system delivers consistent spray pressure, smooth material flow, and reduced operator fatigue during extended use. This category includes multiple RX-80 gun variations and accessories engineered for performance and compatibility, allowing users to upgrade, maintain, or customize their spray setup.
Choose the Correct RX-80 Spray Gun
Selecting an RX-80 Airless Spray Gun requires matching the gun to your specific sprayer model and coating requirements. The RX-80 Airless Spray Gun is a high-performance replacement gun that replaces the older Titan 296329 and is compatible with PowrLiner 2850, PowrBeast 4700/7700/9700/4700T, and Impact 1640/440/410 sprayers.
Key selection factors include: sprayer compatibility (PowrLiner, PowrBeast, and Impact series), trigger preference (two-finger or four-finger design), tip configuration (with or without tip and guard), and coating type (suitable for water, oil, and solvent-based paints). The gun connects via standard 1/4" NPSM swivel fitting.

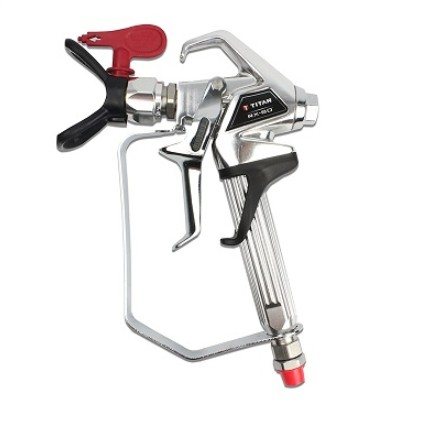

RX-80 Airless Spray Gun Specifications
The RX-80 Airless Spray Gun is a professional-grade gun engineered for durability, comfort, and precision. The chart below summarizes key specifications. Confirm the current orderable part number when selecting equipment.
| Specification | Value |
|---|---|
| Max Operating Pressure | 3600 PSI (24.8 MPa) |
| Material Inlet Thread Size | NPSM 1/4 (M16 x 1.5) |
| Diffuser Thread Size | 7/8 - 14 UN-2A |
| Wetted Parts Material | High-grade steel, aluminum, PTFE, hard metal |
| Weight | 1.3 lbs (599 g) |
| Spray Pattern Width | 1 in to 12 in |
| Included Tip | 517 Reversible Tip |
| Trigger Options | 2-Finger or 4-Finger |
Core RX-80 Features
RX-80 Airless Spray Guns are engineered with features that improve comfort, reduce fatigue, and extend service life. Understanding these components helps you select the right gun and maintain it properly.
Ergonomic design brings added comfort during extended use, reducing hand fatigue on long jobs.
Lasts 50% longer with improved performance. Engineered for longer service intervals and better overall durability.
Smart tools that make job site life easier. Built-in filter wrench for easy maintenance and access to the gun filter.
1/4" stainless steel swivel to minimize hose kinks and enhance maneuverability during spraying.
Engage the gun's trigger lock when the gun is not in use for added safety and reduced fatigue.
All-metal body with a tungsten carbide ball valve and seat for enhanced durability and consistent performance.
RX-80 Airless Spray Gun Applications
RX-80 Airless Spray Guns and Accessories serve diverse applications across residential, commercial, and industrial projects. Match your gun configuration to the coating type and finish quality requirements.
Ideal for interior and exterior wall coatings, trim work, and general painting projects requiring consistent spray patterns.
Suitable for industrial coating and finishing work, wood, metal, and machinery finishing with high-pressure capability.
Perfect for maintenance, renovation, and contractor applications where reliable performance and reduced downtime matter.
The RX-80 Airless Spray Guns and Accessories provide reliability, ergonomic handling, and long service life in demanding job environments. Whether used for fine finishing or high-coverage coating applications, the RX-80 spray system delivers consistent spray pressure and smooth material flow.
Maintenance and Service Considerations
Regular maintenance extends gun life and ensures consistent spray quality. Recognizing early warning signs prevents costly downtime.
Clean the gun thoroughly after each use with compatible solvent. Flush the spray gun at low working pressure with a suitable cleaning agent.
Inspect the needle, seat, and swivel seals periodically for leaks or wear. Lubricate the trigger pivot points with a light oil if the trigger becomes stiff.
Always install a gun filter to protect the tip. Replace if clogged or torn. The built-in filter wrench makes access easy.
When replacement is recommended: leaking gun, uneven fan pattern, hard trigger pull, or damaged swivel. The Titan 0538215 RX-80 Gun Repair Kit is the rebuild kit for most Titan RX-80 Gun variations.
OEM vs Aftermarket RX-80 Parts
| Consideration | Genuine OEM Parts | Aftermarket Parts |
|---|---|---|
| Durability | Built for professional airless spraying performance | Short lifespan, especially in high-pressure systems |
| Fit | Perfect fit for your RX-80 gun | Poor fit and reduced spray quality |
| Warranty | Keeps your warranty valid | No warranty or reliability |
| Risk | Designed for your specific gun | Can damage critical spray components |
| Long-term value | Provides long-term reliability and spray consistency | Often leads to repeated failures and downtime |
Although OEM parts cost more upfront, they provide long-term value and reliability. Invest once in quality parts and keep your RX-80 Airless Spray Gun running efficiently for years to come.
How to Select the Correct RX-80 Spray Gun
- Identify your sprayer model (PowrLiner, PowrBeast, or Impact series).
- Determine your trigger preference (two-finger or four-finger design).
- Assess whether you need a model with or without tip and guard included.
- Verify the current manufacturer ordering number for your chosen model.
- Check documented specifications for pressure rating and tip size compatibility.
- Confirm whether a repair kit or complete gun better suits your service need.
- Order only after the model number, application match, and specification requirements are confirmed.
Physical similarity, brand name, or matching component names alone do not prove complete equipment compatibility. Always verify specifications and application suitability before ordering.
Compare Related Titan Parts & Equipment
RX-80 Airless Spray Guns are one part of Titan's broader professional spraying system. Compare the components and equipment required for your application before ordering.
The safest way to select an RX-80 Airless Spray Gun is sprayer compatibility + trigger preference + tip configuration + coating type + pressure requirements + specification confirmation. Choosing "RX-80 gun" alone is not enough: different models offer different trigger configurations and tip inclusions for various applications.
FAQ Section
Use these answers to narrow the correct RX-80 Airless Spray Gun before ordering.
