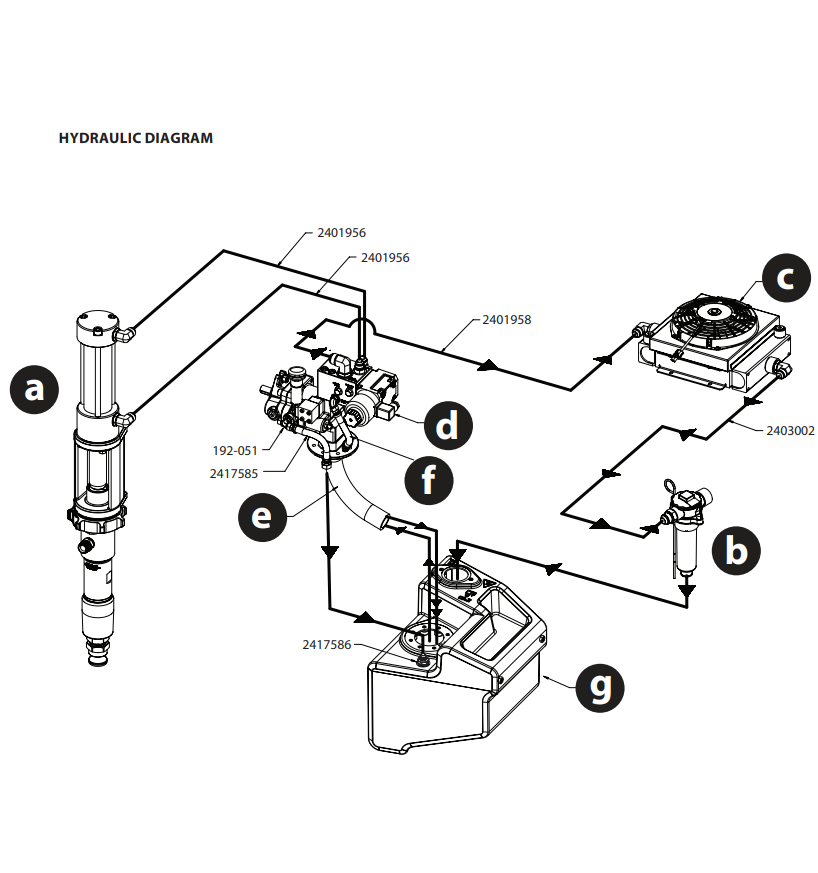

Hydra X (4540,7230) Hydraulic Diagram

Item No: B

Part #: 2401654A

Part 2401654A is a replacement filter breather assembly for hydrax 4540 - 7230 equipment. This a...

Item No: C

Part #: 2401591A

Part 2401591A is a replacement hydraulic cooler for hydrax 4540 - 7230 equipment. This cooler di...

Item No: D

Part #: 02401711A

Titan 02401711A Hydraulic Pump and Valve Assembly is an original Titan Pump for use in Titan's hydra...

Item No: G

Part #: 2401653A

Part 2401653A is a replacement hydraulic tank assembly, packaged, for hydrax 4540 - 7230 equipme...
