Titan EPX2455 | Main Assembly Replacement Parts
Shop Titan EPX2455 Main Assembly Parts
Restore your Titan EPX2455 airless piston pump with genuine Titan EPX2455 Main Assembly Parts from AllTitanParts. Shop OEM fluid section assemblies, bypass valves, fluid hoses, fittings, down tubes and pressure-control components using the model-specific exploded parts diagram.
Find the correct replacement by Titan part number or diagram reference, then order the component needed to repair your EPX2455 sprayer.
Main Assembly Overview
Buy Genuine Titan EPX2455 Main Assembly Replacement Parts
The Titan EPX2455 Main Assembly brings together important components involved in pumping, routing and controlling coating material. Its listed parts include the fluid section assembly, fluid connections, down tube, bypass tube, bypass valve and pressure-control cap.
These components can experience wear, leakage, impact damage or coating buildup during service. Use the exploded diagram to identify the affected component and confirm its exact Titan part number before purchasing.
OEM Parts Reference
Titan EPX2455 Main Assembly Parts List
The category lists eight individual products. Seven display numbered diagram references; the fluid hose is listed without a visible reference number.
| Diagram Ref. | Titan Part Number | Part Description |
|---|---|---|
| 2 | 700-175 | Potentiometer Cap, replaces Titan 507748 |
| 4 | 0508343 | Fitting |
| 6 | 0552155A | Fluid Section Assembly |
| 7 | 0507798 | Down Tube |
| 12 | 800-904 | Bypass Tube |
| 14 | 0507690 | Bypass Valve Assembly |
| 16 | 0507671 | Fitting |
| Not displayed | 0507387 | Fluid Hose |
This table reflects products listed in the category, not necessarily every component shown in the factory assembly diagram.
Featured Replacement Components
Find the Right EPX2455 Main Assembly Repair Parts
REF. 2
Titan 700-175 Potentiometer Cap
A replacement cap associated with the pressure-control potentiometer. Inspect it when the existing cap is missing, cracked or damaged.
700-175 replaces Titan 507748.
REF. 4
Titan 0508343 Fitting
A fluid-system fitting used at the designated main assembly connection. Check for damaged threads, leakage or physical damage before selecting a replacement.
REF. 6
Titan 0552155A Fluid Section Assembly
A genuine Titan pump lower assembly. Consider this listed assembly when the fluid section requires extensive repair. Compare the cost and suitability of a complete assembly against individual service parts.
REF. 7

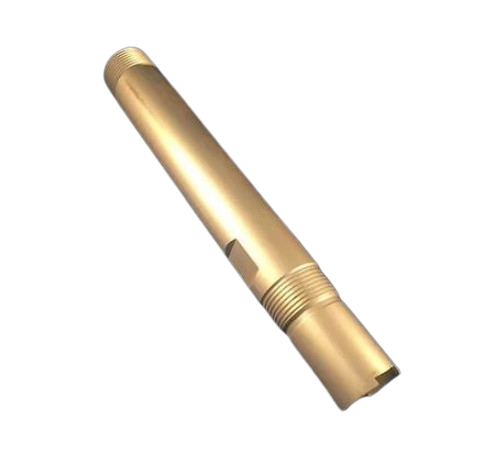

Titan 0507798 Down Tube
The down tube provides a designated fluid-routing connection in the main assembly. Inspect for leakage, damage or restrictions when diagnosing fluid-delivery problems.
REF. 12

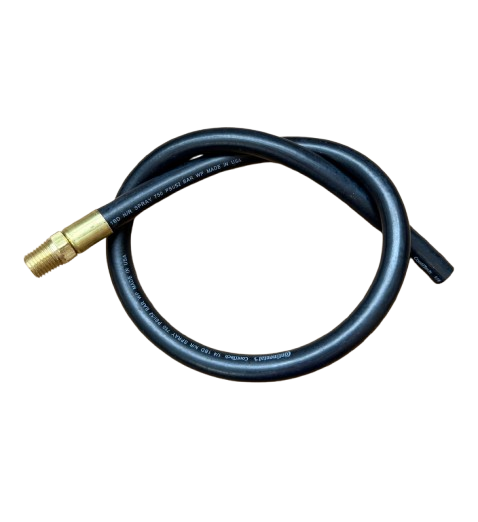

Titan 800-904 Bypass Tube
This bypass return component helps route fluid through the recirculation pathway. Inspect it for kinks, cracks, leakage or coating restrictions.
REF. 14
Titan 0507690 Bypass Valve Assembly
The bypass valve assembly controls a fluid-routing function used during priming and spraying. Inspect it when the sprayer has unwanted return flow or difficulty changing operating modes.
REF. 16
Titan 0507671 Fitting
A replacement fluid connection fitting. Match the exact part number rather than assuming that fittings with similar appearances have identical threads or dimensions.
FLUID CONNECTION
Titan 0507387 Fluid Hose
A fluid hose listed for the EPX2455 main assembly. Replace hoses showing abrasion, cuts, leakage, damaged fittings or other signs of deterioration.
System Operation
How EPX2455 Main Assembly Components Work Together
Pump Pressurization
The fluid section uses piston movement and valve action to draw in and pressurize coating material.
Fluid Connections
Fittings, tubes and hoses provide specified connections between fluid-system components.
Bypass Operation
The bypass valve and return pathway help direct material during priming and recirculation.
Pressure Adjustment
The pressure-control interface allows the operator to adjust the sprayer's operating pressure.
Troubleshooting
Common Titan EPX2455 Main Assembly Problems
| Symptom | Inspect | Recommended Check |
|---|---|---|
| Fluid leaks near a connection | 0508343, 0507671 fittings | Check threads, mating surfaces and the exact source of leakage. |
| Pump will not build pressure | 0552155A fluid section, 0507690 bypass valve | Check valve sealing, pump wear and unintended bypass flow. |
| Fluid returns during spray mode | 0507690 bypass valve | Check valve position and inspect the bypass mechanism for leakage. |
| Return line leaks | 800-904 bypass tube | Inspect the tube and connections for deterioration or damage. |
| Fluid hose is damaged | 0507387 fluid hose | Replace damaged hoses with the specified compatible part. |
| Pressure-control cap is missing | 700-175 potentiometer cap | Check the cap and underlying control for damage. |
| Poor material delivery | Down tube, fluid section, filters and suction system | Check restrictions, air entry, valve wear and filter condition. |
Part Number Cross-Reference
Titan 700-175 Replaces Titan 507748
The category identifies Titan 700-175 Potentiometer Cap as the replacement for Titan 507748. If your older parts reference uses 507748, compare it with the current 700-175 listing before ordering. This replacement reference applies to the potentiometer cap only.
