Titan EPX2305 Main Assembly Parts
Shop Titan EPX2305 Main Assembly Parts for maintenance, repair and restoration of your airless sprayer. Use the applicable EPX2305 exploded parts diagram to identify fittings, brackets, controls, mounting components, connections, fasteners and related machine hardware by diagram callout, description and replacement part number.
Find Titan EPX2305 Main Assembly Replacement Parts
The Main Assembly is an important reference point when repairing a Titan EPX2305 airless sprayer. It groups applicable machine components that support, connect, position or secure different areas of the sprayer, making the exploded diagram useful when identifying individual replacement parts.
Depending on the component being serviced, the Main Assembly can direct you to applicable brackets, fittings, mounting parts, control-related components, connections, fasteners and supporting hardware. Always match the diagram callout with the corresponding parts listing before ordering.
Find the Correct Titan EPX2305 Main Assembly Part
Confirm EPX2305
Verify that the sprayer being repaired is the Titan EPX2305 before using the model-specific parts diagram.
Open the Correct Diagram

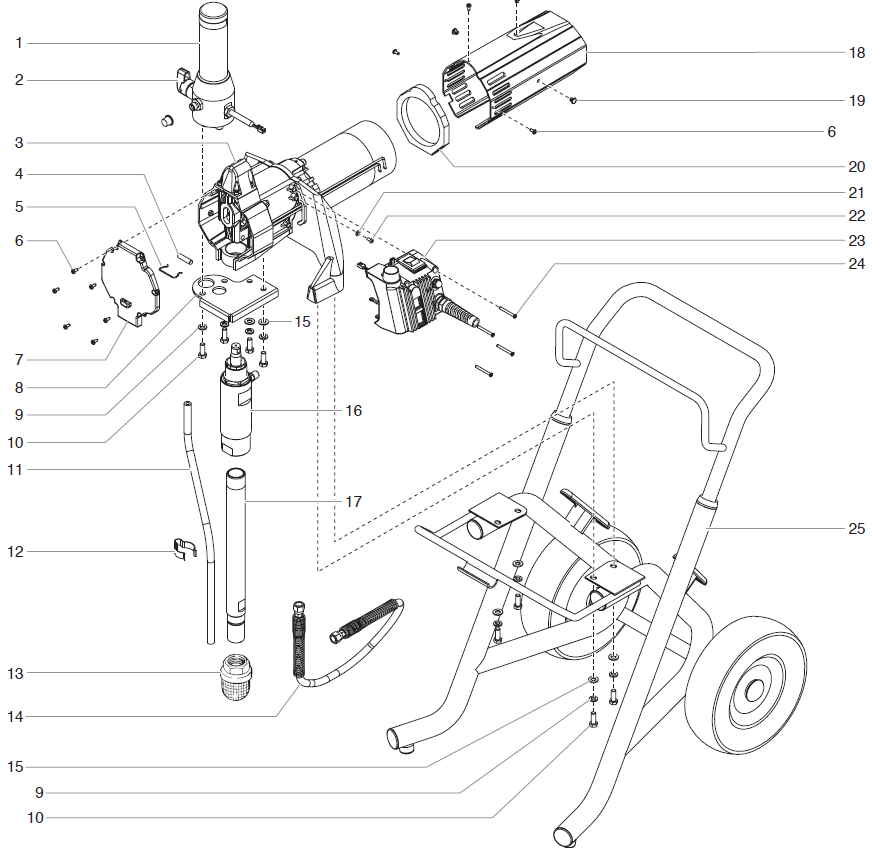

Use the applicable EPX2305 Main Assembly exploded illustration to locate the component requiring repair or replacement.
Match the Callout
Match the numbered callout with the corresponding component description and replacement part number.
Verify Quantity
Confirm the required quantity and verify the complete part information before placing your order.
Understanding the Titan EPX2305 Main Assembly
The Main Assembly diagram provides a visual relationship between applicable components installed around the primary sprayer structure. This helps technicians and equipment owners distinguish general machine parts from components belonging to separate pump, drive, motor or cart assemblies.
Brackets & Supports
Applicable brackets and supports help locate and secure components in their intended positions on the sprayer.
Fittings & Connectors
Applicable fittings and connectors provide attachment or connection points between related sprayer components.
Control-Related Components
Applicable control-related components should be identified from the correct EPX2305 diagram before replacement.
Fasteners & Hardware
Applicable screws, bolts, nuts, washers and related hardware help secure components and assemblies to the machine.
EPX2305 Main Assembly Components to Inspect
Inspect applicable brackets for bending, cracks, looseness, damaged mounting holes or deformation.
Inspect applicable fittings for damaged threads, leakage, physical damage or problems at their connection points.
Check applicable mounts and supports for wear, looseness, deformation or damage that can affect component positioning.
Check connection points for looseness, damaged surfaces, contamination or improper seating.
Inspect applicable control-related components and their attachment areas when troubleshooting operational concerns.
Check applicable screws, bolts, nuts, washers and other hardware for looseness, damage, missing pieces or damaged threads.
Inspect EPX2305 Main Assembly Problems Before Ordering
A damaged or loose component can affect surrounding hardware and mounting points. Inspect the complete affected area before ordering so that related damage is not overlooked.
1. Locate the Problem
Identify the exact location of the loose, damaged, leaking or missing component.
2. Identify the Assembly
Confirm whether the component belongs to the Main Assembly or to a separate EPX2305 assembly.
3. Inspect Related Parts
Check nearby brackets, fittings, mounts, connectors and hardware for secondary wear or damage.
4. Verify the Callout
Match the component with the numbered diagram callout, replacement part number and required quantity.
Common Titan EPX2305 Main Assembly Repair Areas
Use the conditions below as inspection starting points. Identify the actual affected component on the EPX2305 exploded diagram before selecting a replacement part.
| Condition | What to Inspect | Repair Direction |
|---|---|---|
| Loose Bracket or Component | Bracket, mounting surface, fasteners and surrounding hardware. | Determine whether the issue involves loose hardware, damaged threads, a worn mount or a damaged bracket. |
| Missing or Damaged Hardware | Screws, bolts, nuts, washers, retainers and mounting locations. | Identify the exact hardware from the diagram instead of substituting a visually similar fastener. |
| Leak Around a Connection | Fitting, adjoining component, connection and applicable sealing area. | Relieve system pressure and locate the actual source before selecting the replacement component. |
| Component Is Misaligned | Mounting brackets, supports, fasteners and attachment points. | Inspect for bending, deformation, missing hardware or damaged mounting surfaces. |
| Impact or Physical Damage | Brackets, fittings, connections, mounts and surrounding components. | Inspect the complete affected area for secondary damage before replacing the visibly damaged component. |
Main Assembly or EPX2305 Piston Pump Parts?
EPX2305 Main Assembly
Start here for applicable fittings, brackets, controls, connectors, mounting components, fasteners and general machine hardware.
EPX2305 Piston Pump
Browse pump packings, piston components, valves, seals and related EPX2305 pumping-system repair parts.
View EPX2305 Piston Pump PartsTitan SprayTech EP & EPX Parts
Browse additional Titan SprayTech EP and EPX sprayer models, assemblies and replacement parts.
Browse Titan EP & EPX PartsVerify Titan EPX2305 Main Assembly Part Compatibility
Do not select a bracket, fitting, control component, connector, mount, fastener or other replacement component based only on appearance. Similar-looking parts can differ in dimensions, thread configuration, mounting arrangement, connection type or intended application.
Confirm the Titan EPX2305 model, applicable machine configuration, correct Main Assembly diagram, numbered callout, component description, exact replacement part number and required quantity before ordering. Do not assume interchangeability with EPX2155, EPX2255, EPX2355, EPX2455, EPX2555 or another EPX-series model unless the applicable parts information confirms compatibility.
Before Buying Titan EPX2305 Main Assembly Parts
Verify the exact Titan sprayer model before selecting replacement components.
Make sure the required component belongs to the Main Assembly rather than another EPX2305 parts section.
Check adjacent fittings, brackets, mounts, connectors and hardware for related damage or wear.
Match the required component to its numbered callout on the applicable EPX2305 diagram.
Confirm the exact replacement part number, description and required quantity before ordering.
Shop EPX2305 Main Assembly & Related Parts
Use the EPX2305 Main Assembly diagram for general machine components and hardware. If diagnosis identifies the piston pump or another dedicated system, use the appropriate model-specific parts section before ordering.
Service the Titan EPX2305 Safely
Shut down the sprayer, disconnect or isolate the applicable electrical supply and follow the manufacturer's complete pressure-relief procedure before inspecting or removing components. Never loosen a fitting, hose, valve or other fluid component while the system is pressurized. Secure the machine before removing structural or mounting components and follow the applicable Titan service instructions during disassembly, replacement, reassembly and operational testing.
Buy Titan EPX2305 Main Assembly Parts
Use the applicable EPX2305 Main Assembly exploded diagram to identify the bracket, fitting, control component, connector, mounting part, fastener or related hardware required for your repair. Match the diagram callout with the exact replacement part number and quantity before ordering.
Shop EPX2305 Main Assembly PartsTitan EPX2305 Main Assembly Parts FAQ
What is the Titan EPX2305 Main Assembly?
The Main Assembly is a model-specific exploded-diagram section used to identify applicable general machine components such as fittings, brackets, mounting parts, connections, controls, fasteners and related hardware.
What parts can be found in the EPX2305 Main Assembly?
Depending on the applicable diagram, this section can contain fittings, brackets, control-related components, mounting parts, connectors, fasteners and other machine hardware.
How do I find the correct EPX2305 replacement part?
Confirm the EPX2305 model, open the correct Main Assembly diagram and match the numbered callout with its component description, replacement part number and required quantity.
What should I inspect if a mounting component is loose?
Inspect the component, bracket, mounting surface and applicable fasteners for looseness, deformation, damaged threads or missing hardware.
How should I identify a replacement fitting?
Use the applicable EPX2305 exploded diagram and parts listing. Do not select a fitting by appearance alone because thread, dimensions and intended application can differ.
Are EPX2305 Main Assembly parts interchangeable with other EPX models?
Do not assume interchangeability. Verify the exact replacement part number and applicable model information before using a component from another EPX-series sprayer.
What should I verify before ordering EPX2305 Main Assembly parts?
Confirm the Titan EPX2305 model, applicable configuration, correct Main Assembly diagram, numbered callout, component description, replacement part number and required quantity.
Need Help Finding an EPX2305 Main Assembly Part?
Have your Titan EPX2305 model information, machine configuration, serial number when available, existing part number and exploded-diagram callout ready to help identify the correct fitting, bracket, connector, mounting component, fastener or related replacement part.
Parts & Fitment Help: 713-931-0006
