Titan's CapSpray manuals give three reasons a turbine will not run: no power, a tripped circuit breaker, or worn brushes. Weak or no air comes from a gun air knob turned off or clogged filters. The red light means air flow has dropped, so clean or change the filters; it does not stop the turbine. Unplug before you open anything.

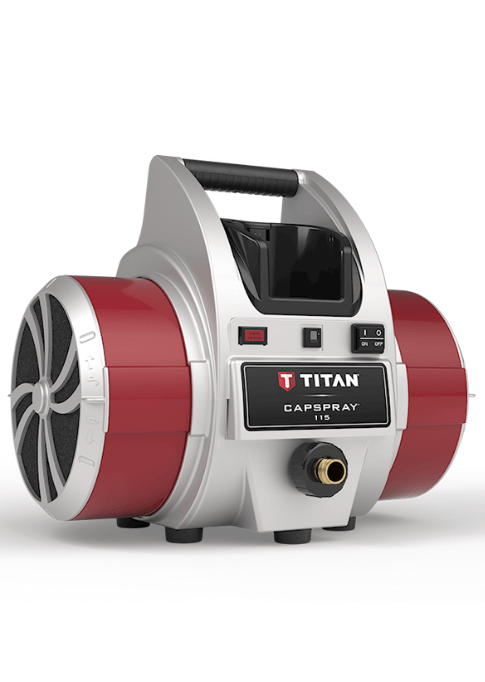

A CapSpray turbine is a corded electric motor, a filter on each side and a switch that watches air flow. When it misbehaves, the cause is usually one of a short list, and the manuals put that list in a fixed order. This guide follows it, so you spend money on a part only after the simple checks have failed. It covers the turbine side only. A spitting or pulsing gun is a different problem and has its own symptoms.
Check the easiest things first
- The outlet and the cord. Titan's manuals say to use a grounded 3-slot receptacle. If you are on an extension cord, the manuals recommend a heavy one, 12 gauge and no longer than 100 ft, and they say an undersized cord loses power and overheats. That comes from the manuals only, so check yours.
- The gun's air knob. A turbine can be perfectly healthy while the air knob on the gun is turned off. The manuals list it as a cause of restricted or no air.
- The filters. The other listed cause of restricted air. They take a minute to look at.
- The breaker. If the turbine stopped mid-job, the manuals name a tripped circuit breaker as a cause.
Symptom: the turbine will not run
The manuals give three causes, and the table keeps them in the manual's own terms. It also shows the part that sits behind each one, so you know what to look up if the check confirms the cause.
Turbine will not run: cause, check and part
| Manual cause | What to check | Part to look up |
|---|---|---|
| No power | A live grounded outlet, the extension cord and the unit's own cord. | 0524592 power cord assembly, on the Lower Housing page |
| Tripped circuit breaker | Reset it. If it trips again, the manuals say to have the unit inspected and not to keep resetting it. | 0524549 circuit breaker switch kit, on the Upper Housing page |
| Worn brushes | Titan's manuals call for a brush check every 400 hours by an authorized service center. | 0277243 motor brush kit, on the Turbine Assembly page |
The on/off switch, 0524553, is on the Upper Housing page too. The manuals we have do not name it as a cause, so call before you replace one.
Titan describes the turbine as not a home-repair item beyond what the manual shows, and this guide gives no motor repair steps. If the outlet, cord and breaker are fine, have it checked by a service center. The brush kit is listed on the Turbine Assembly page.
Symptom: weak air or no air
The motor is running but the gun is weak or silent. The manuals list two causes: the air knob on the gun turned off, and clogged filters. Check the knob first, since it needs no tools. Then open the filter covers by turning them counterclockwise with the unit unplugged, and look at the pre-filter and the filter on each side. Titan's cleaning method is tapping them or blowing them out with compressed air.
If a filter is torn or will not come clean, the parts are on the Main Assembly page for your model: the 0524526A pre filter kit, the 0524523A air filter (pleated) and the 0524528A turbine motor air filter. Our diagrams use those names, while Titan's accessory page calls 0524528A the pleated filter, so confirm on the page or by phone. See the CapSpray 115 Main Assembly for an example.
Symptom: the warning light is on
A red light on the front panel comes on when air flow drops, and a flow switch inside the turbine drives it. The manuals read it as a signal to clean or change the filters. It does not shut the turbine down, so the unit keeps running while it is lit, and that is the danger. Clogged filters cause excessive heat and can damage the turbine. Stop, unplug, and deal with the filters.
If the light stays on after the filters are clean, the manual extracts we have do not give a further cause. Do not start by replacing the 0277472 air flow switch or the 0524547 warning light assembly. Both are on the Upper Housing page, for example the CapSpray 95 or the 115, and they are listed there so you can identify them, not because they are a known fix. Call (713) 931-0006 with the model and what you see.
When it is the turbine itself
A fault in the turbine itself is a job for a service center, not for the bench. Knowing which assembly you own helps when you call. The turbine assembly is 0524288A on the 75 (3-stage), 0524289A on the 95 and X 95 (4-stage), 0524280A on the 105 and X 105, 0524290A on the 115, and 2470142A on the X 115 (6-stage). Each sits on its model's Turbine Assembly page, such as the CapSpray 105 Turbine Assembly.
Titan's brush check at 400 hours is the one service interval the manuals give. If you are near that mark and the turbine has stopped for no clear reason, ask the service center for that check first.
Safety and where parts are
- Unplug before opening the filter covers or any housing.
- Plug into a grounded outlet and keep the turbine away from the spray area.
- Cord and feet are on the Lower Housing page, switch, breaker and light on Upper Housing, filters on Main Assembly, brushes and the turbine on Turbine Assembly.
- Your own manual is the authority for your model; our diagrams identify parts and do not replace it.
Turbine-side parts named in this guide:
The Short Version
No run: check power, the breaker and the brush interval. Weak air: gun air knob, then filters. Light on: clean the filters before you run it again. If none of that fixes it, stop and call (713) 931-0006 with your model.
