They have high horsepower and ultra-high capacity hydraulic systems for continuous use in multiple gun applications. HYDRAS are premeditatedly designed to spray most thick and ultra-heavy coatings to be used in industrial, commercial and heavy-scale projects. Titan has a history of designing machines with high quality, robustness, accuracy, precision and dependability. Its machines will last for years with negligible maintenance and stoppage, hence saving you time, money and visits to the wear & tear workshops. There is not one or two but four Hydras, just waiting for you. Each with the best of features slightly different from each other. It is all up to you to pick one. Let us provide you with the specifications of each Hydra independently. So, you can decide on your own which suits you the best.

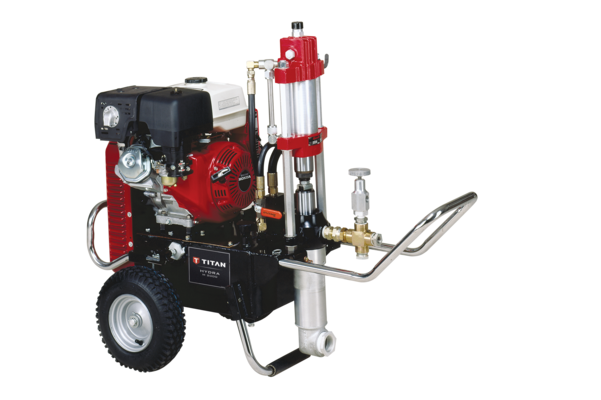

Specifications of Hydra M 2000
Gallons per minute (GPM):
The gallon per minute capacity of Hydra M 2000 is 6.0 GPM.
Cycle rate per gallon: The cycle per gallon of Hydra M 2000 is 7.
Cycles per minute (max): The cycle per minute of Hydra M 2000 is 42.
Maximum tip size: The maximum tip size for 1-Gun of Hydra M 2000 is .075 and 2-Gun is .053.
Pressure range: The power range of Hydra M 2000 is 500-2000 psi.
Power: The power provided to Hydra M 2000 is by 11 HP Honda engine Electric Start.
Fuel capacity: The fuel capacity of Hydra M 2000 is 1.6 gallons.
Weight: The weight of Hydra M 2000 is approximately 421 lbs.
Pump inlet: The pump inlet of Hydra M 2000 is 1 1/2 NPT (F)
Pump outlet: The pump outlet of Hydra M 2000 is 1 NPT(F).
Dimensions: The dimensions of Hydra M 2000 are 40 H x 52 L w/handle (32 w/o handle) x 24 1/2 W.
Specifications of Hydra Pro IV
Gallons per minute (GPM):
The gallon per minute capacity of Hydra Pro IV is 2.5 GPM.
Cycle rate per gallon: The cycle per gallon of Hydra Pro IV is 20.
Cycles per minute (max): The cycle per minute of Hydra Pro IV is 50.
Maximum tip size: The maximum tip size for 1-Gun of Hydra Pro IV is .050, 2-Gun is 035 and 3-Gun is 029.
Pressure range: The power range of Hydra Pro IV is 500-3300 psi.
Power: The power provided to Hydra Pro IV is by 8.0 HP Honda engine.
Fuel capacity: The fuel capacity of Hydra Pro IV is 1.4 gallons.
Weight: The weight of Hydra Pro IV is approximately 349 lbs.
Inlet paint filter: The inlet paint filter of Hydra Pro IV is Rock catcher
Outlet paint filter: The outlet paint filter of Hydra Pro IV is 50 mesh, 18in2.
Pump inlet: The pump inlet of Hydra Pro IV is 1 NPT (F)
Pump outlet: The pump outlet of Hydra Pro IV is 1/2 NPT(F) to paint filter.
Paint filter hose connections: The paint filter hose connections of Hydra Pro IV are (1) - 1/4 NPSM(M) and (1) 3/8 NPT(F) Plugged
Dimensions: The dimensions of Hydra Pro IV are 36 1/2 H x 51 L w/handle (38 w/o handle) x 24 1/2 W.
Specifications of Hydra M 4000
Gallons per minute (GPM):
The gallon per minute capacity of Hydra M 4000 is 3.3 GPM.
Cycle rate per gallon: The cycle per gallon of Hydra M 4000 is 13.
Cycles per minute (max): The cycle per minute of Hydra M 4000 is 43.
Maximum tip size: The maximum tip size for 1-Gun of Hydra M 4000 is .060, 2-Gun is .040 and 3-Guns is .035.
Pressure range: The power range of Hydra M 4000 is 500-4000 psi.
Power: The power provided to Hydra M 4000 is by 11 HP Honda engine Electric Start.
Fuel capacity: The fuel capacity of Hydra M 4000 is 1.6 gallons.
Weight: The weight of Hydra M 4000 is approximately 361 lbs.
Inlet paint filter: The inlet paint filter of Hydra Pro IV is 1 Rock catcher.
Outlet paint filter: The outlet paint filter of Hydra Pro IV is 50 mesh, 18in2.
Pump inlet:The pump inlet of Hydra M 4000 is 1 1/4 NPT (F)
Pump outlet: The pump outlet of Hydra M 4000 is 1/2 NPT(F).
Paint filter hose connections: The paint filter hose connections of Hydra Pro IV are (1) - 1/4 NPSM(M) and (1) 3/8 NPT(F) Plugged.
Dimensions: The dimensions of Hydra M 400 are 38 H x 52 L w/handle (32 w/o handle) x 24 1/2 W. Another Hydra sprayer is Hydra m Pro Super
Specifications of Hydra M Pro Super
Gallons per minute (GPM):
The gallon per minute capacity of Hydra M Pro Super is 2.5 GPM.
Cycle rate per gallon: The cycle per gallon of Hydra M Pro Super is 24.
Cycles per minute (max): The cycle per minute of Hydra M Pro Super is 60.
Maximum tip size:The maximum tip size for 1-Gun of Hydra M Pro Super is .050,2-Gun is .035 and 3-Guns is .029.
Pressure range: The power range of Hydra M Pro Super is 500-4000 psi.
Power: The power provided to Hydra M Pro Super is by 11 HP Honda engine Electric Start. Fuel capacity: The fuel capacity of Hydra M Pro Super is 1.6 gallons.
Weight: The weight of Hydra M Pro Super is approximately 354 lbs.
Inlet paint filter: The inlet paint filter of Hydra Pro IV is 1 Rock catcher.
Outlet paint filter: The outlet paint filter of Hydra Pro IV is 50 mesh, 18in2.
Pump inlet: The pump inlet of Hydra M Pro Super is 1 NPT (F)
Pump outlet: The pump outlet of Hydra M Pro Super is 1/2 nNPT(F).
Paint filter hose connections: The paint filter hose connections of Hydra Pro IV are (1) - 1/4 NPSM(M) and (1) 3/8 NPT(F) Plugged.
Dimensions: The dimensions of Hydra M Pro Super are 38 H x 52L w/handle (32 w/o handle) x 24 1/2 W. Get one of the Hydras and any other titan airless paint sprayer today from alltitanparts.com.
