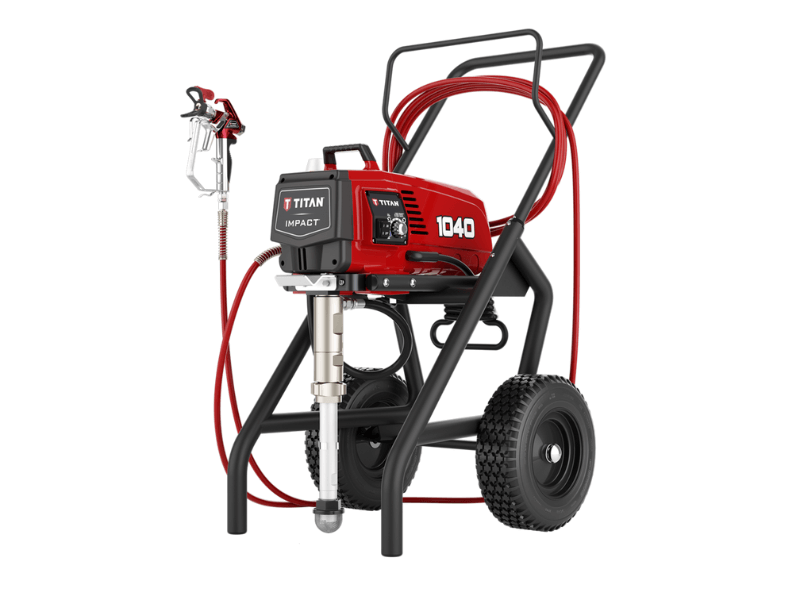

For huge projects which require large tip sizes or more than one spray gun operating from a single unit, you can rely on the power and performance of the Titan Impact 1040. This workhorse is perfect for large residential, commercial and industrial applications where speed and power are necessary to get the job done with higher speed and with greater efficiency.
DuraLife Brushless HE Motor
The Impact 1040 is optimized for every tip size and every painter’s technique.
Electronic Pressure Control
The Impact 1040 Â has electronic pressure control for consistent pressure and Zero dead band.
Quad + Packings
The Impact 1040 comes in safe and secure quad packing, to avoid any damage during the shipment.
Telescoping Handle
A telescoping handle to keep the machine easily usable by all kinds of painters.
Easy-Load Cart
The Impact 1040 has a system to clean back loads in and out of vehicles easily. (Available on high rider model only)
Hose Wrap
The Impact 1040 has an ability to hold up to 15m of airless hose.
Large Pneumatic Tires
The Impact 1040 has large pneumatic tires to make it easily moveable and highly portable.
Auto Oiler
The Impact 1040 has an Auto Oiler system to save you from break-ins due to less oil from time to time.
Voltage: The voltage required for the Titan Impact 1040 is 220~240 VAC, 50/60 Hz Max. current consumption: The maximum current consumed by the Titan Impact 1040 is 8.5 A. Power cord: The power cord of the Titan Impact 1040 is 6m. Max. operating pressure: The maximum operating pressure of the Titan Impact 1040 is 221 bar (22.1 MPa). Volume flow at 12 MPa (120 bar) with water: The volume flow at 12 MPa with water is 4.5 l/min. Max tip size: The maximum tip size of the Titan Impact 1040 is 0.034 inch – 0.86 mm. Max. temperature of the coating material: The maximum temperature of the coating material coming out of the Titan Impact 1040 reaches 43°C. Max viscosity: The maximum viscosity of the paint coming out of the Titan Impact 1040 is 25.000 MPa. S Weight: The Titan Impact 1040 weighs approximately 47.6 kg. Special high-pressure hose: The special high-pressure hose of the Titan Impact 1040 has the following specifications: DN 6 mm, 15 m, connection thread M 16 x 1.5. Dimensions (l x W x h): The dimensions of the Titan Impact 1040 are 590 x 568 x 748 mm Altitude:  This equipment will operate correctly up to 2000 m above mean sea level. Vibration: The spray gun of Titan Impact 1040 does not exceed 2.5m/s2. Max sound pressure level: The maximum sound pressure level of the Titan Impact 1040 is 80 dB*. * Place of measurement: 1 m distance from unit and 1.60m above the floor, 12 MPa (120 bar) operating pressure, reverberant floor. Are you looking forward to bug one of the best titan air guns? Visit alltitanparts.com today to complete the dream.
