The original Titan Impact 540 delivers up to 0.60 gpm at up to 3300 psi through a tip up to 0.024" with one gun. Titan lists a 1.2 hp brushless motor, a 300 foot maximum hose length and a 5,000 watt generator with the idle-down feature disabled. It comes as a skid, a high cart and a low cart. The Impact X 540I is a different machine.
Where the 540 sits in the Impact line
The Impact 540 is the middle step between the Impact 440 (0.54 gpm, 0.023" tip) and the Impact 640 (0.70 gpm, 0.027" tip). Titan lists it for residential, municipal, property maintenance and small commercial work. It is an electric piston-pump airless sprayer on 120 V power.
Verified specs
Titan Impact 540 (original line)
| Spec | Impact 540 |
|---|---|
| Maximum delivery | 0.60 gpm |
| Maximum tip size, one gun | 0.024" |
| Maximum pressure | 3300 psi (22.8 MPa) |
| Motor | 1.2 hp brushless |
| Maximum hose length | 300 feet |
| Generator, if you run it off one | 5,000 watt, idle-down feature disabled |
Figures are the ones published on Titan's pages and in Titan's Impact manual excerpts, and they agree across the sources we checked. We do not give a weight or a weekly spray volume for the 540 because our sources for those do not agree or rest on a single listing.
The maximum tip size is the number to plan around. Delivery is how much fluid the pump can move, and the tip orifice decides how much of it leaves the gun. A tip larger than the sprayer's rating asks the pump for more than it has, so pressure drops and the fan turns coarse. Thicker coatings need a larger orifice and fine finishes a smaller one, so match the tip to the coating and stay at or under 0.024".
Power, hose and generator
Titan states a 300 foot maximum hose length for the 540. More hose means more resistance for the pump to push through. If you need reach, add hose only up to that limit and keep every piece rated for the sprayer's 3300 psi. The 50 foot airless hose on the 540 accessories page is 316-505, and the 5 foot whip hose listed there is 316-506, described as 3300 PSI.
For generator use, Titan's guidance for the 540 is a 5,000 watt generator with the idle-down feature disabled. We repeat that as Titan states it. We have no figure for how a smaller generator behaves, so if yours is smaller or you are unsure how to disable idle-down, check the manual for your sprayer or ask our parts team.
Features Titan lists for the 540
Titan's feature list for the Impact 540 includes the following. Each one maps to parts you can order, which is why they matter when something wears:
- Quad+ Packings. Titan calls them self-adjusting and says they wipe abrasive coatings clean during operation. They are still wear parts, so they appear in the repacking kit on the fluid section page.
- PermaLife Cylinder. Titan says it never wears and never needs replacing. That covers the cylinder only; packings, seats, balls and the piston rod still wear.
- AutoOiler. A button that delivers oil from a reservoir to the packings. The face plate sits on the Main Assembly page.
- Sureflo Pusher Valve. Releases a stuck inlet ball without tools. The pusher assemblies are listed on the Fluid Section page.
- Electronic Pressure Control with Rapid Clean, which Titan says speeds up flushing and clean-up.
- Full-size manifold filter, the 60 mesh 730-067 on the Fluid Section page.
Skid, high cart and low cart
The 540 is sold in three frames. Our model page lists the skid as 805-001, the high cart as 805-006 and the low cart as 805-003. Each frame has its own diagram page for its handle, wheel and leg hardware.
Impact 540 frames and where their parts are
| Configuration | Diagram page | Parts listed |
|---|---|---|
| Skid | Skid Assembly Parts | 13 |
| High cart | Cart Assembly Parts (P/N 805-282A) | 11 |
| Low cart | Low Rider Assembly Parts | 16 |
The cart and low cart pages hold the handle, wheel and hub hardware; the skid page holds legs, foot rubbers and the drip cup.
Where the parts are
The 540 has seven diagram pages besides the frame pages, and knowing which one to open saves the most time:
48 parts: packings, valves, seats, piston parts, pusher and the manifold filter
11 parts: housing, slider, crankshaft and gear, and the controller 805-837
43 parts: power switch, control knob, face plate, cord, covers and electrical items
9 parts: suction set, inlet screen filter, return tube and O-rings
24 parts: hose, guns, gun filters, tip seat kit, Piston Lube and Liquid Shield

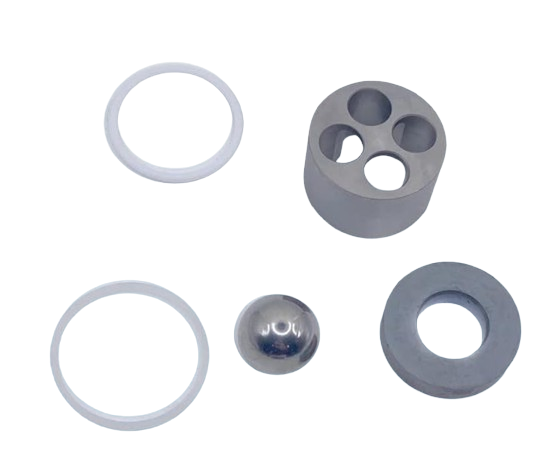

The fluid section is where most of the wear shows up. The diagram lists the inlet valve kit 805-846 and outlet valve kit 805-845 there, plus the piston rod, balls, seats and the 704-586B repacking kit. The diagram lists the same ball and seat O-ring numbers on the 440 and 640 fluid section pages (762-145 inlet ball, 50164 outlet ball, 762-058 seat O-ring), so a number that works on one page shows up on the others, but confirm fitment against your own sprayer before you buy.
Impact 540 parts worth knowing
Common Impact 540 parts from this guide:
The Short Version
The original Impact 540 is a 0.60 gpm, 3300 psi sprayer with a 0.024" maximum tip, a 300 foot hose limit and a 5,000 watt generator recommendation with idle-down disabled. Match your frame to its diagram page, open the Fluid Section page first when the pump misbehaves, and keep the Impact X 540I separate in your head and in your cart.
Not sure which Impact 540 you own?
Call (713) 931-0006 with the model and serial number and our parts team will confirm the part before you order.
