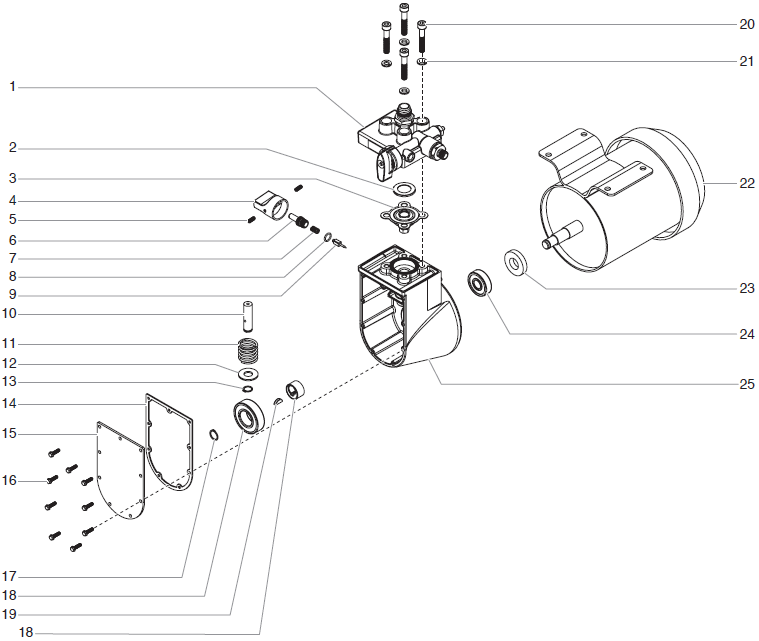

AirCoat Spray System Diaphragm Pump Parts

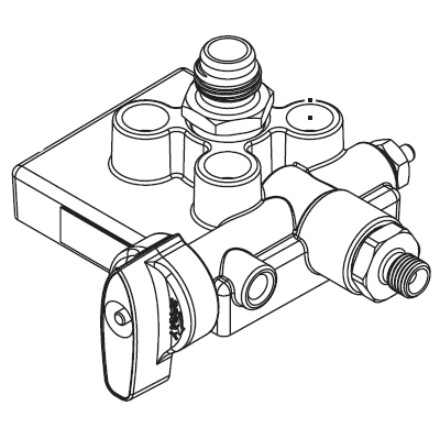

Titan 0508193 Pump Head

Item No: 1

Part #: 0508193A

Titan 0508193 Pump Head diaphragm - Reliable Performance for Diaphragm Pumps Titan 0508193 Pump H...

Retail Price: $493.40

You save: $72.04 (14.60%)

Our Price: $421.36

QTY:

Titan 0270494 Diaphragm Ring

Item No: 2

Part #: 0270494

OEM Titan Valve ComponentTitan 0270494 Diaphragm Ring is an OEM retaining and sealing component that...

$3.10

QTY:

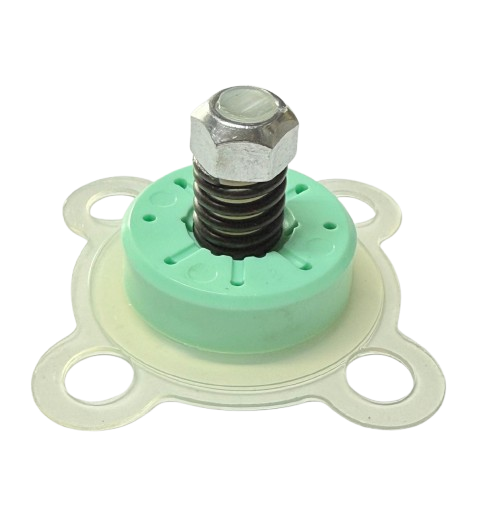

Titan 0278240 Diaphragm Assembly

Item No: 3

Part #: 0278240

OEM Titan Valve Component Titan 0278240 Diaphragm Assembly is an OEM diaphragm assembly u...

$23.60

QTY:

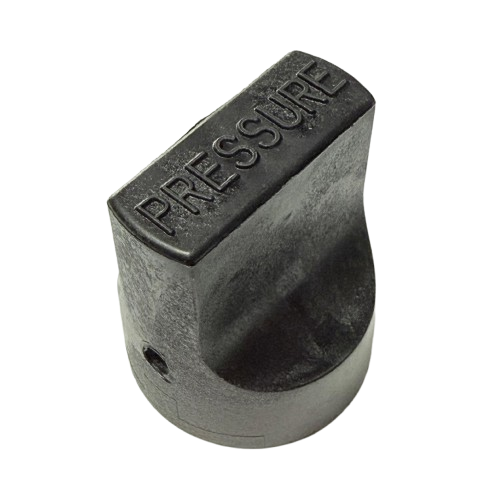

Titan 0288775 Pressure Control Knob

Item No: 4

Part #: 0288775

OEM Titan Control Component Titan 0288775 Pressure Control Knob is an OEM control compone...

$14.70

QTY:

Titan 9801109 Set screw #10-24 x .50

Item No: 5

Part #: 9801109

OEM Titan Fastening Component Titan 9801109 Set Screw #10-24 x .50 is an OEM fastener use...

$2.00

QTY:

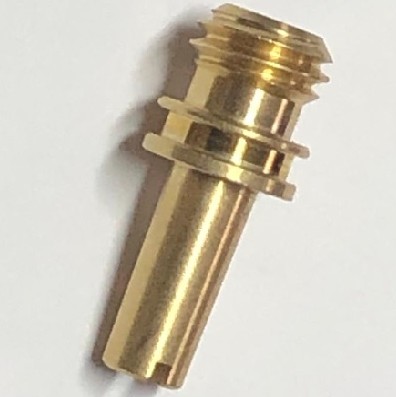

Titan 0270529 Stem Valve

Item No: 6

Part #: 0270529

OEM Titan Valve Component Titan 0270529 Stem Valve is an OEM valve component that connect...

$14.80

QTY:

Titan 0047373 Pressure Regulating Spring

Item No: 7

Part #: 0047373

OEM Titan Valve Component Titan 0047373 Pressure Regulating Spring is an OEM spring that ...

$9.10

QTY:

Titan 0089518 O-Ring

Item No: 8

Part #: 0089518

OEM Titan Sealing Component Titan 0089518 O-Ring is an OEM sealing component that creates...

$3.40

QTY:

Titan 0089475 Pressure Valve Needle

Item No: 9

Part #: 0089475

OEM Titan Valve Component Titan 0089475 Pressure Valve Needle is an OEM precision-ground ...

Retail Price: $49.50

You save: $3.76 (7.60%)

Our Price: $45.74

QTY:

Titan 0278339 Hydraulic Piston

Item No: 10

Part #: 0278339

OEM Titan Hydraulic Component Titan 0278339 Hydraulic Piston is an OEM hydraulic componen...

$21.40

QTY:

Titan 0005311 Piston Spring

Item No: 11

Part #: 0005311

OEM Titan Pump Component Titan 0005311 Piston Spring is an OEM spring that provides the r...

$24.80

QTY:

Titan 0270548 Piston Washer

Item No: 12

Part #: 0270548

OEM Titan Pump Component Titan 0270548 Piston Washer is an OEM sealing and load distribut...

$5.80

QTY:

Titan 0089456 Retainer

Item No: 13

Part #: 0089456

OEM Titan Retaining Component Titan 0089456 Retainer is an OEM securing component used to...

$6.30

QTY:

Titan 0278359 Gasket

Item No: 14

Part #: 0278359

OEM Titan Sealing Component Titan 0278359 Gasket is an OEM sealing component that creates...

$5.50

QTY:

Titan 0278341 Hydraulic Cover

Item No: 15

Part #: 0278341

OEM Titan Hydraulic Component Titan 0278341 Hydraulic Cover is an OEM protective cover th...

$17.20

QTY:

Titan 9800049 Screw

Item No: 16

Part #: 9800049

OEM Titan Fastening Component Titan 9800049 Screw is an OEM fastener used to secure compo...

$2.00

QTY:

Titan 0047393 Retaining Ring

Item No: 17

Part #: 0047393

OEM Titan Fastening Component Titan 0047393 Retaining Ring is an OEM fastener that secure...

$3.40

QTY:

Titan 0090031 Eccentric Sleeve And Bearing Assembly

Item No: 18

Part #: 0090031

OEM Titan Drive Component Titan 0090031 Eccentric Sleeve and Bearing Assembly is an OEM d...

Retail Price: $86.50

You save: $7.18 (8.30%)

Our Price: $79.32

QTY:

Titan 0089829 Shaft Key

Item No: 19

Part #: 0089829

OEM Titan Drive Component Titan 0089829 Shaft Key is an OEM drive component that secures ...

$8.40

QTY:

Titan 9900355 Screw, Cap M8x45, Socket Head, DIN 912

Item No: 20

Part #: 9900355

OEM Titan Fastening Component Titan 9900355 Screw, Cap M8x45, Socket Head, DIN 912 is an ...

$3.00

QTY:

Titan 9921601 Lock Washer

Item No: 21

Part #: 9921601

OEM Titan Fastening Component Titan 9921601 Lock Washer is an OEM spring-tempered split w...

$3.40

QTY:

Titan 0508612A Motor, Aircoat (pkgd)

Item No: 22

Part #: 0508612A

OEM Titan Pneumatic Drive Component Titan 0508612A Motor, Aircoat (pkgd) is an OEM packag...

Retail Price: $494.90

You save: $72.26 (14.60%)

Our Price: $422.64

QTY:

Titan 0089930 Seal

Item No: 23

Part #: 0089930

OEM Titan Sealing Component Titan 0089930 Seal is an OEM sealing component that prevents ...

$13.20

QTY:

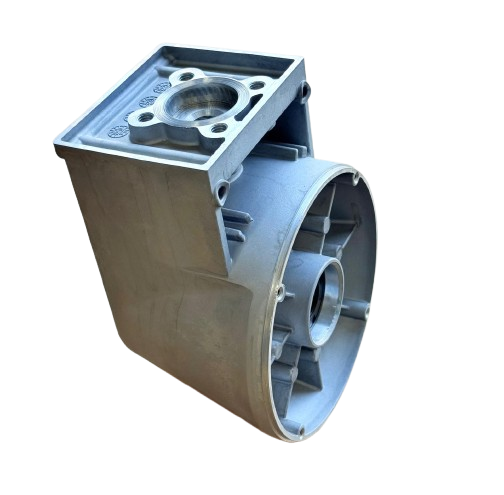

Titan 0278237 Hydraulic Housing Assembly

Item No: 25

Part #: 0278237

OEM Titan Hydraulic Component Titan 0278237 Hydraulic Housing Assembly is an OEM structural c...

Retail Price: $140.40

You save: $11.65 (8.30%)

Our Price: $128.75

QTY:

Titan 0270462 Fan, Emerson, 1/3 hp Motor

Part #: 0270462

OEM Titan Cooling Fan Titan 0270462 Fan is an OEM cooling component designed for the Emerson ...

$20.90

QTY:

Titan 0270612 Fan Cover

Part #: 0270612

OEM Titan Fan Cover Titan 0270612 Fan Cover is an OEM protective component that shields the f...

Retail Price: $34.80

You save: $1.91 (5.49%)

Our Price: $32.89

QTY:

AirCoat Spray System Diaphragm Pump Parts

The AirCoat Spray System Diaphragm Pump Parts category includes OEM replacement components engineered to maintain smooth, pulse-free fluid delivery and stable pressure regulation in Titan AirCoat air-assisted airless spray systems.

The diaphragm pump is one of the most critical fluid-handling sections of the sprayer, responsible for moving coating material consistently while reducing pressure fluctuations that can affect finish quality.

These components are designed for professional finishing applications requiring controlled atomization, reduced overspray, and reliable long-term performance.

Key Components & Pump Performance

Key components in this assembly include the Titan 0278240 Diaphragm Assembly, Titan 0270494 Diaphragm Ring, Titan 0270529 Stem Valve, Titan 0047373 Pressure Regulating Spring, Titan 0089475 Pressure Valve Needle, and Titan 0508193A Pump Head.

Together, these parts regulate fluid movement, maintain pressure stability, and reduce pulsation throughout the spraying cycle.

Regular inspection of diaphragms, seals, springs, and valves helps prevent pressure loss, leakage, and inconsistent spray patterns.

The diaphragm pump assembly is commonly used in fine-finish wood coatings, cabinetry, industrial metal finishing, enamels, primers, lacquers, and other professional coating environments where smooth fluid control is essential.

The diaphragm-based design also reduces wear compared to traditional piston-style pump systems, improving service life and operational consistency.

Frequently Asked Questions

Inconsistent pressure is commonly caused by a worn Titan 0278240 Diaphragm Assembly, damaged seals, or debris inside the valve system. These issues can interrupt smooth fluid movement and create pressure fluctuations during spraying.

The Titan 0270494 Diaphragm Ring secures the diaphragm assembly and helps maintain a proper seal inside the pump chamber. A damaged ring may lead to leakage, pressure instability, and reduced material flow efficiency.

A worn Titan 0270529 Stem Valve can disrupt fluid regulation inside the pump, causing uneven spray pressure, sputtering, or delayed material response at the spray gun.

The Titan 0047373 Pressure Regulating Spring controls diaphragm movement and stabilizes operating pressure. Weak or damaged springs can cause fluctuating spray patterns and inconsistent atomization quality.

A failing Titan 0089475 Pressure Valve Needle may cause poor pressure retention, fluid leakage, or unstable spray output. Replacing worn valve needles helps restore smooth pressure control and reliable coating performance.
