Shop Genuine OEM Titan PowrTwin Series Gas Sprayers
Shop genuine OEM Titan PowrTwin Series gas airless sprayers, high-output hydraulic machines engineered for professional contractors who need reliable performance where electrical power is unavailable or impractical. These gas-powered units deliver consistent pressure and material delivery for demanding jobsites, with models ranging from the PowrTwin 4900 Plus at 1.50 GPM to the PowrTwin 12000 Plus at 3.15 GPM. Featuring Speeflo HydraDrive hydraulic technology, Severe Service Fluid Section with tempered cylinder and piston rod, and tool-free convertibility to electric power, PowrTwin sprayers are built for continuous spraying on large residential, commercial, and industrial projects. Select the correct PowrTwin model by matching coating requirements, required output, maximum tip size, sprayer capacity, and the applicable engine configuration.
Choose the Correct Titan PowrTwin Series Gas Sprayer
Choosing PowrTwin Series technology is only the first step. Individual PowrTwin models combine different engines, flow rates, maximum tip sizes, and multi-gun capabilities, which changes spray coverage and production capacity. Select by coating + required output + maximum tip size + sprayer capacity + gun configuration + exact model number.
A higher flow rate does not automatically mean a sprayer is correct for your application, and two PowrTwin units are not interchangeable simply because they share the Titan brand. Your coating requirements, production speed, and jobsite conditions determine the right platform, and the coating manufacturer's sprayer recommendation should also be checked.
Titan PowrTwin Series Gas Model Guide
Titan's current PowrTwin gas lineup spans multiple models engineered for different production levels. The chart below summarizes key specifications. Confirm the current orderable model number when selecting a sprayer, particularly where an updated packaged or suffixed number may be shown in parts channels.
| Model | Max Delivery Rate (Gas) | Max Operating Pressure | Max Tip Size 1 Gun | Engine | Max Guns |
|---|---|---|---|---|---|
| PowrTwin 4900 Plus | 1.50 GPM | 3300 PSI | 0.037 inch | Subaru 169cc | 3 |
| PowrTwin 6900 Plus | 2.25 GPM | 3600 PSI | 0.050 inch | Honda 160cc | 4 |

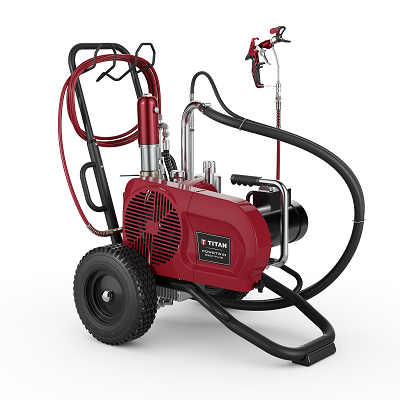

| PowrTwin 8900 Plus | 2.35 GPM | 3600 PSI | 0.054 inch | 200cc | 5 |

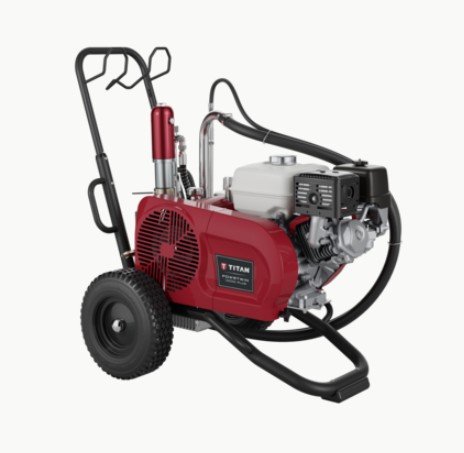

| PowrTwin 12000 Plus | 3.15 GPM | 3600 PSI | 0.058 inch | Honda | 6 |
How Titan PowrTwin Series Gas Sprayers Work
Titan PowrTwin Series gas sprayers use a smooth, slow-striking hydraulic drive to push coating at high pressure through a spray tip, atomizing the material without compressed air. This hydraulic airless method delivers uniform coverage and high productivity on large surfaces. PowrTwin units feature Speeflo HydraDrive technology, a tempered cylinder and piston rod that increase pump life by 150 percent over competitive pumps, and full convertibility from gas to electric power and back again on a moment's notice.
Smooth, slow-striking hydraulic drive provides extreme power and reliability.
Tempered cylinder and piston rod extend pump life by 150 percent over competing pumps.
Tool-free convertibility from gas to electric power and vice versa at the job site.
Keep larger crews spraying without missing a beat on production jobs.
Titan also states that PowrTwin sprayers feature self-adjusting packings that resist over-tightening and help prevent premature wear, along with an external hydraulic fluid porting system that allows quick and easy field service. Actual performance in service still depends on coating viscosity, tip selection, operating pressure, and user technique.
Understanding PowrTwin Series Pressure Ratings
PowrTwin 4900 operates at up to 3300 PSI, while the 6900, 8900, and 12000 models operate at up to 3600 PSI for demanding high-production applications.
PowrTwin gas sprayers range from the 4900 Plus at 1.50 GPM to the 12000 Plus at 3.15 GPM for the most demanding production work.
Do not interpret the maximum pressure rating as evidence that a sprayer should always operate at that pressure. Titan optimizes each PowrTwin model for specific coating types and production requirements. Every pressure-bearing component in the spray system must also remain within its own working-pressure rating; the complete system is limited by its lowest-rated component.
Titan PowrTwin Gas vs Standard Airless Sprayers
| Buying Consideration | Titan PowrTwin Gas | Standard Airless Sprayer |
|---|---|---|
| Technology positioning | Gas-powered hydraulic high-production platform | Electric piston-driven platform |
| Power source | Gas engine with tool-free electric conversion | Electric only |
| Pump life | Tempered cylinder and rod extend life by 150 percent | Standard pump life |
| Multi-gun capability | Up to 6 guns depending on model | Limited multi-gun capacity |
| Jobsite mobility | No cords; independent from jobsite power | Requires electrical power source |
| Selection | Coating + output + tip size + sprayer capacity | Coating + output + tip size + sprayer capacity |
PowrTwin is not automatically the correct technology for every application. Choose according to the coating, desired finish, production requirements, and equipment capability.
Titan PowrTwin Series Compatibility
Titan PowrTwin Series sprayers work with industry-standard airless guns, hoses, and spray tips. This describes the system interface; it should not be interpreted as a statement that every PowrTwin model is suitable for every coating or application.
Confirm the sprayer uses the appropriate Titan airless gun and that the gun is correctly configured.
Confirm the machine can support the selected tip size and required material output.
Confirm the coating manufacturer permits the selected sprayer and tip configuration.
When Should You Service a Titan PowrTwin Series Sprayer?
PowrTwin Series sprayers are mechanical systems with wear components. Inspect the sprayer when pressure drops, the spray pattern loses definition, priming becomes difficult, or material consumption rises. Common service items include hydraulic pump assemblies, fluid sections, piston rods, cylinders, packing kits, inlet and outlet valve kits, manifolds, filters, pressure control components, and engine components. Proper maintenance using correctly matched parts helps preserve pressure output and extend sprayer life. The Severe Service Fluid Section with tempered cylinder and piston rod increases pump life by 150 percent over competitive pumps, and self-adjusting packings help prevent premature wear. Actual service intervals vary with coating abrasiveness, operating pressure, cleaning, maintenance, and usage conditions.
How to Order the Correct Titan PowrTwin Series Sprayer
- Identify the coating and check the coating manufacturer's recommended sprayer range.
- Determine the required flow rate and production speed.
- Determine the maximum tip size needed for your application.
- Check the sprayer's maximum supported tip size and available output.
- Confirm the spray gun, hose, and tip configuration.
- Locate the corresponding Titan PowrTwin model in the lineup.
- Verify the current manufacturer ordering number for that model.
- Check documented supersession information when replacing an older model.
- Order only after the sprayer model, equipment capability, and current part number are confirmed.
Physical similarity, the Titan brand name, or matching model names alone do not prove complete equipment or coating compatibility.
Compare Related Titan Spraying Equipment
PowrTwin Series is one part of Titan's broader professional spraying system. Compare the technology required for your coating and application before selecting an individual sprayer.
The safest way to select a Titan PowrTwin gas sprayer is coating + required output + max tip size + sprayer capacity + gun configuration + exact current model number. Choosing "PowrTwin" alone is not enough: a 4900, 6900, 8900, and 12000 have substantially different flow and multi-gun capabilities.
FAQ Section
Use these answers to narrow the correct Titan PowrTwin Series gas sprayer before ordering.
