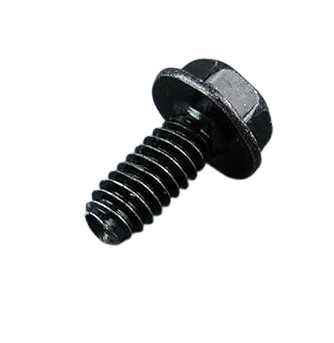

Titan 9805446 Screw
Complete your sprayer drive repair with the Titan 9805446 Screw, a replacement fastening component listed for compatible Titan Impact 340 and Impact 400 Airless Sprayers. Identified in Drive Assembly II, this screw belongs to the mechanical hardware arrangement associated with the yoke assembly, retainer ring, washer, and dowel pin. Replacing a missing, damaged, or worn screw helps restore the specified assembly configuration and supports dependable equipment maintenance.
Parts Diagram: Drive Assembly II, item 15.
Select Titan part number 9805446 rather than an unverified substitute. Confirm the exact machine model, drive configuration, and parts diagram before ordering.
Complete Your Drive System Repair with Titan 9805446 Screw
Keep your sprayer's mechanical hardware properly secured with the Titan 9805446 Screw, a replacement fastener listed for the Titan Impact 340 and Titan Impact 400 electric airless sprayers. Identified as item 15 in Drive Assembly II, this screw is a separately available service component for the designated drive assembly. Whether replacing a missing fastener or addressing damaged screw threads, choosing the specified part number helps restore the intended assembly arrangement and supports dependable equipment maintenance.
Exact Machines Using Titan 9805446 Screw
Titan 9805446 Screw is listed in Drive Assembly II for the following sprayers:
- Titan Impact 340 Airless Sprayer
- Titan Impact 400 Skid (400 S)
- Titan Impact 400 Cart (400 C)
In the applicable exploded parts diagrams, the screw is identified as item 15. The same diagram group includes the Titan 0532203A Yoke Assembly, Titan 9822529 Ring Retainer, Titan 9822600 Washer, and Titan 9832128 Dowel Pin.
Fitment note: Do not assume that every screw used on an Impact 340 or Impact 400 is interchangeable. Match the exact fastener position and part number. Compatibility with additional Titan models is not established by this listing.
Why the Titan 9805446 Screw Matters During Drive Assembly Repairs
A professional airless sprayer depends on a combination of moving drive components and correctly installed fastening hardware. While major assemblies transfer mechanical movement to the pump, screws and other smaller components help maintain the manufacturer's intended assembled configuration.
The Titan 9805446 Screw is a separately identified service fastener in Drive Assembly II of the Impact 340 and Impact 400. Using the specified part number helps technicians select the correct replacement when the original fastener is missing or damaged.
Fasteners can deteriorate through repeated servicing, damaged threads, incorrect tool engagement, corrosion, or improper installation. A screw with a stripped head may become difficult to remove, while damaged threads can prevent secure engagement with the mating component.
Correct replacement requires more than selecting a screw with a similar appearance. Thread form, length, head geometry, material properties, and any specified tightening requirements must suit the intended application. An incorrect screw may damage the mating threads or fail to retain the component as designed.
Replacing a confirmed defective screw can help restore the intended fastening arrangement without automatically replacing a larger assembly. Inspect the adjoining components and mounting threads before completing the repair.
Titan 9805446 Screw Inspection and Replacement Guide
Follow the applicable Titan Impact service manual when accessing mechanical drive components. Do not service the machine while energized or pressurized.
Step 1: Prepare the equipment. Turn off the sprayer, disconnect electrical power, and complete the manufacturer's pressure-relief procedure before beginning maintenance.
Step 2: Confirm the fastener. Identify item 15 in the applicable Drive Assembly II diagram and verify that the required replacement is Titan 9805446.
Step 3: Inspect the original screw. Look for stripped threads, a rounded or damaged drive recess, bending, corrosion, or other visible defects.
Step 4: Examine the mounting location. Check the mating threads, contact surfaces, and associated components. Replacing the screw alone may not correct damage to the receiving threads.
Step 5: Install the specified replacement. Position Titan 9805446 according to the manufacturer's service procedure. Use the specified tightening method and avoid cross-threading or overtightening.
Step 6: Complete the repair. Confirm that the fastened component is correctly seated, reinstall all required guards, and perform the prescribed checks before returning the sprayer to operation.
Related Titan Impact Drive Assembly Components
These components appear in the same Drive Assembly II parts group and may be relevant when completing a broader mechanical repair.
Related components are provided for service reference and are not automatically included with the individual Titan 9805446 Screw.
Buy Titan 9805446 Screw
Find the Titan 9805446 Screw for your compatible Impact 340 or Impact 400 airless sprayer at AllTitanParts. Order the specified replacement fastener for a targeted drive-assembly repair and keep your equipment maintenance on track.
Shop Titan 9805446 ScrewFrequently Asked Questions
Answers about compatibility, identification, and maintenance for Titan 9805446 Screw.
Which Titan sprayers use the 9805446 Screw?
The Titan Impact 340 and Titan Impact 400 are documented applications. The Impact 400 includes Skid and Cart configurations. Verify the exact screw location before ordering.
Does Titan 9805446 fit the Impact 340?
Yes. The Impact 340 Drive Assembly II catalog lists Titan 9805446 Screw as item 15.
Does Titan 9805446 fit the Impact 400?
Yes. The Impact 400 Drive Assembly II catalog lists part 9805446 as item 15. Confirm the installed assembly before replacement.
What does the Titan 9805446 Screw do?
It is a fastening component used in the designated drive assembly. Its role is to help secure the applicable mechanical component in the intended assembled position.
Where is Titan 9805446 identified in the parts diagram?
It is item 15 in Drive Assembly II for the compatible Titan Impact 340 and Impact 400 sprayers.
When should I replace Titan 9805446?
Replace the screw when it is missing, bent, corroded, stripped, or has a damaged head that prevents correct installation or removal.
Can I use a generic screw instead?
Do not substitute based solely on appearance. The replacement must match the required thread, length, head configuration, and other application-specific specifications.
Is Titan 9805446 the same as Titan 9805300?
No. They are separately listed screw part numbers. Do not treat them as interchangeable unless Titan documentation specifically confirms substitution.
Does the screw include a washer or retainer ring?
The washer and retainer ring have separate part numbers in the diagram. Check the product package details before assuming additional hardware is included.
Where can I buy Titan 9805446 Screw?
You can order the Titan 9805446 Screw directly from AllTitanParts after confirming the correct machine and assembly.
