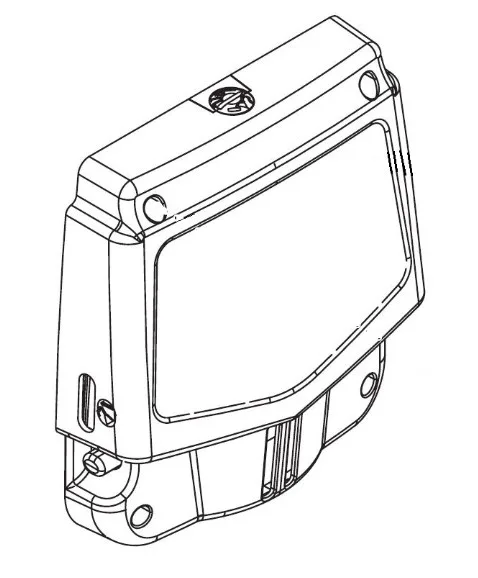

Titan 805-250A Face Plate Oiler Assembly

Name: Titan 805-250A Face Plate Oiler Assembly
Brand: Titan
SKU: 805-250A
Price: 132.88 USD
Availability: InStock

$132.88

$148.30

Save 10%

Available to Order

Part #: 805-250A

Titan Drive System & Lubrication Components

Maintain your sprayer's mechanical assembly with the Titan 805-250A Face Plate Oiler Assembly. This replacement component serves the designated face plate and lubrication arrangement, supporting proper servicing of the machine's moving components. An important repair option when the original assembly is damaged, worn, or no longer functioning as intended.

Manufacturer Titan

Part Number 805-250A

Product Type Face Plate Oiler Assembly

Service Area Drive & Lubrication

Primary Function: Provides the specified face plate and oiler arrangement for the applicable Titan assembly.
Repair Application: Replacement during mechanical drive and lubrication system maintenance.
Fitment: Match part number 805-250A to the exact machine's parts diagram before ordering.

Quantity

Buy Now

Genuine OEM Part Fast Shipping Easy Returns

Titan Face Plate & Oiler Replacement Components

Restore the Face Plate and Oiler Assembly of Your Titan Sprayer

The Titan 805-250A Face Plate Oiler Assembly is a replacement component used in designated Titan Impact airless sprayers and Helix spraying systems. Its face plate and oiler arrangement forms part of the machine's mechanical enclosure and lubrication service system. Replace a damaged or unserviceable assembly with the part specified in the applicable Titan exploded diagram.

ManufacturerTitan

Part Number805-250A

Product TypeFace Plate / Oiler

ApplicationSprayer Main Assembly

Titan 805-250A Technical & Ordering Details

Product Overview	Replacement face plate/oiler assembly for specified Titan Impact and Helix equipment.
Manufacturer & Part Number	Titan 805-250A
Product Classification	Face plate and oiler assembly; mechanical enclosure and lubrication-related service component.
Primary Function	Provides the designated face plate/oiler arrangement in the applicable main assembly, supporting the equipment's specified lubrication servicing arrangement.
Verified Compatible Titan Impact Machines	Titan Impact 1040 Titan Impact 1040T Titan Impact 1140 Titan Impact 1140I Titan Impact 1140IA
Verified Titan Helix Applications	Titan Helix A and Helix B pump-side assemblies, as listed in the Titan Helix operating and spare-parts documentation.
Other Documented Equipment Applications	Wagner ProSpray 3.34 and ProSpray 3.39, identified in a Wagner replacement-parts product guide. Verify equipment-specific configuration.
Compatible Assemblies	Titan Impact main assembly and Titan Helix A/B pump-side main assemblies where 805-250A is specified.
Assembly Position	Item 25 in referenced Impact main assembly diagrams; item 16 in the Titan Helix main assembly parts list.
Quantity Per Machine	One per listed Impact sprayer; two per listed Helix A/B system, one for each pump side.
Related Parts & Assemblies	Titan 700-139 Face Plate Screw Titan 756-088 Washer (Helix) Titan 860-002 Lock Washer (Helix) Titan 9805438 Screw (Helix) Associated drive and pump assemblies
Industrial Applications	Maintenance of professional airless coating equipment used in commercial painting, construction finishing, industrial coating, and specialized plural-component spraying operations.
Commercial Applications	Service and replacement work performed by painting contractors, industrial maintenance departments, equipment rental fleets, and professional sprayer repair shops.
Related Parts Commonly Inspected Together	Face plate mounting screws, associated mounting surfaces, oiler mechanism, lubrication passages, and adjacent drive components.
Common Problems Addressed	Damaged face plate, broken mounting points, defective oiler operation, leakage around the assembly, and mechanical damage affecting the installed face plate/oiler arrangement. Actual symptoms require diagnosis.
Assembly Contents	Sold as a face plate/oiler assembly. The exact internal component breakdown is not itemized in the referenced main assembly lists. Mounting screws and adjacent hardware appear as separate parts-list items.
Ordering Guidance	Verify the model, serial number, relevant parts diagram, required quantity, and condition of associated mounting hardware before ordering.

Mechanical Protection & Lubrication Service

What Does the Titan 805-250A Face Plate Oiler Assembly Do?

The face plate/oiler assembly is a designated component in the machine's main assembly. It combines the face plate arrangement with an oiler-related service function used in the equipment's lubrication system.

The correct assembly supports the intended enclosure and lubrication arrangement. Maintaining the oiler mechanism and associated components is important when servicing moving parts that require manufacturer-specified lubrication.

The exact lubrication procedure, recommended lubricant, and service interval must be taken from the applicable Titan operating manual. Do not assume the component is a compressed-air line lubricator or apply air-tool oil specifications without manufacturer confirmation.

Common Signs That the Assembly Needs Inspection

Visible face plate damage: Cracks, deformation, or impact damage may affect installation or the integrity of the assembly.

Defective oiler operation: An oiler mechanism that does not operate as specified should be inspected before continued use.

Loose or damaged mounting hardware: Inspect the face plate screws and mating surfaces for wear or damaged threads.

Unexpected lubricant leakage: Investigate leakage around the assembly to determine whether the face plate, oiler, seals, or adjacent components require service.

During drive system repair: Inspect the face plate/oiler assembly whenever service work exposes the adjacent drive components.

Installation & Maintenance Guidance

1. Prepare the machine: Turn off the equipment, disconnect electrical power, and complete the pressure-relief procedure specified in the machine's operating manual.

2. Confirm compatibility: Verify that the main assembly diagram lists 805-250A for the exact machine model and configuration.

3. Inspect mounting hardware: Check Titan 700-139 face plate screws and associated mounting surfaces. Replace damaged hardware where required.

4. Follow the manufacturer procedure: Remove and install the face plate/oiler assembly according to the applicable service instructions.

5. Verify lubrication requirements: Use only the lubricant, quantity, and application procedure specified for the machine. Avoid overfilling or using unapproved oils.

6. Complete operational checks: Reinstall all required covers and confirm correct assembly operation before returning the sprayer to service.

Related Titan Parts & Assemblies

Titan 700-139 Face Plate Screw: Specified as the face plate fastener in the Impact parts diagrams. Four are listed per Impact machine.

Titan 756-088 Washer: Listed as associated hardware in the Helix main assembly.

Titan 860-002 Lock Washer: Identified among the Helix main assembly fasteners.

Titan 9805438 Screw: Additional hardware shown in the Helix main assembly.

Associated Drive Assemblies: Inspect adjacent mechanical components during face plate and lubrication system service.

These related components are identified in applicable equipment parts diagrams. They are not necessarily included with the face plate/oiler assembly.

Professional Titan Replacement Components

Order Titan 805-250A Face Plate Oiler Assembly

Keep your Titan spraying equipment properly maintained with the replacement parts available from AllTitanParts. Confirm your Impact or Helix machine's main assembly diagram, inspect the related face plate mounting hardware, and order the correct components for your repair. Proper fitment and manufacturer-recommended lubrication practices help support dependable equipment operation.

Frequently Asked Questions

Answers to common questions about Titan 805-250A compatibility, installation, and maintenance.

What is Titan 805-250A Face Plate Oiler Assembly?

It is a replacement face plate and oiler assembly identified in the main assemblies of selected Titan Impact sprayers and Helix systems.

Which Titan Impact sprayers use this assembly?

Documented applications include Impact 1040, Impact 1040T, Impact 1140, Impact 1140I, and Impact 1140IA. Verify the exact machine configuration before ordering.

Is 805-250A compatible with Titan Helix systems?

Yes. Titan Helix A/B parts documentation identifies this assembly as item 16, with two assemblies per system.

How many face plate/oiler assemblies are required?

The referenced Impact machines list one assembly per sprayer. Titan Helix A/B systems list two assemblies, one for each pump side.

Are the mounting screws included?

Titan 700-139 face plate screws appear as separate items in the equipment parts lists. Confirm the actual sales package contents before ordering.

What type of lubricant should be used?

Use the lubricant recommended in the operating manual for your specific Titan machine. Do not assume that all face plate/oiler assemblies use the same lubricant or application method.

Does replacing the assembly fix all lubrication problems?

No. Lubrication problems may also involve blocked passages, incorrect lubricant, worn moving parts, or other mechanical faults requiring diagnosis.

What should I check before ordering?

Confirm the exact machine model, serial number, applicable parts diagram, assembly quantity, and condition of associated face plate screws and mounting surfaces.
