Titan 800-720 Piston Assembly

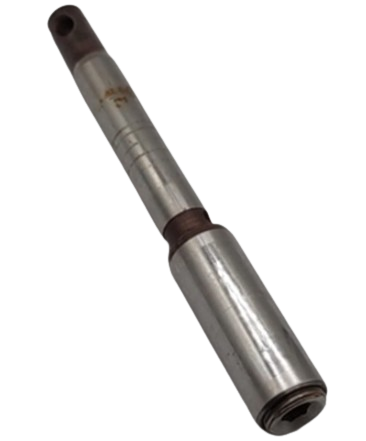

Restore your airless sprayer's pumping system with the Titan 800-720 Piston Assembly. Designed for the Titan Impact 1040T fluid section, this replacement assembly incorporates key piston and outlet check valve components involved in pressurizing and delivering coating material. An important repair solution when inspection identifies damage or excessive wear within the existing piston assembly.
Compatible Fluid Section: Titan 0532437A.
Assembly Components: Piston rod, upper seal, ball guide, outlet valve ball, washer, valve seat, and retainer.
Commercial Application: Professional airless sprayer pump repair and maintenance.
Titan 800-720 Piston Assembly – Impact 1040T Fluid Section
Restore the pumping mechanism of your Titan airless sprayer with the Titan 800-720 Piston Assembly. This manufacturer-listed replacement assembly contains the piston rod and associated outlet valve components used in the Titan Impact 1040T fluid section. It supports the reciprocating pumping action and outlet check valve operation required for pressurized coating delivery.
How Does the Titan 800-720 Piston Assembly Work?
The piston assembly operates inside the fluid section as part of the reciprocating pumping mechanism. The piston rod moves through the pumping cycle while the inlet and outlet check valves regulate the direction of coating flow.
The outlet valve ball and seat help control fluid movement through the piston assembly. The ball guide, washer, seal, and retainer form part of the specified outlet valve arrangement.
Proper condition of the piston rod, outlet valve components, and surrounding packings is important for effective pump operation. Worn or damaged components may contribute to reduced pressure, internal leakage, or irregular fluid delivery.
Common Problems & Replacement Indicators
Scoring, surface damage, or excessive wear may affect the piston rod's operation and sealing interfaces.
A worn valve ball or seat may allow internal fluid bypass.
Defective piston or valve components may contribute to inconsistent pump pressure.
Assembly replacement can be appropriate when multiple piston components are damaged.
These symptoms may also be caused by worn packings, inlet valve faults, suction restrictions, or other pump problems. Diagnose the cause before ordering replacement parts.
Installation & Maintenance Guidance
1. Relieve pressure. Shut down the sprayer, disconnect electrical power, and follow Titan's complete pressure-relief procedure.
2. Access the fluid section. Follow the manufacturer service instructions for removal and disassembly of the applicable pump components.
3. Inspect the existing piston. Check the piston rod, outlet valve ball, valve seat, guide, seal, and retainer for wear or damage.
4. Inspect surrounding packings. Examine the upper and lower packing assemblies and other fluid-section sealing components before reassembly.
5. Install the replacement assembly. Follow Titan's specified component orientation, lubrication requirements, tightening procedures, and service instructions.
6. Test the pump. Reassemble the fluid section and verify proper priming, pressure operation, and leak-free performance according to the manufacturer procedure.
Related Titan Piston & Fluid Section Parts
Shop Titan 800-720 Piston Assembly
Order Titan 800-720 at AllTitanParts for your Impact 1040T pump repair. Review the seven documented assembly components, confirm machine compatibility, and inspect the related packing and inlet valve components before completing your order.
Frequently Asked Questions
What is Titan 800-720 Piston Assembly?
It is a replacement piston subassembly containing the piston rod and associated outlet valve components for the Titan Impact 1040T fluid section.
Which Titan sprayer uses piston assembly 800-720?
The Titan Impact 1040T is a manufacturer-documented application. Other model compatibility should be verified against the applicable parts manual.
What components are included in Titan 800-720?
The Titan parts diagram identifies seven components: 0507732 Piston Rod, 800-348 Upper Seal, 0507452 Upper Ball Guide, 0552234 Outlet Valve Ball, 0507454 Washer, 0294516 Outlet Valve Seat, and 800-336 Outlet Valve Retainer.
Does Titan 800-720 include the inlet valve ball?
No. The inlet valve ball, Titan 0555595, is identified separately in the fluid-section diagram and is not among items 15–21 included in piston assembly 800-720.
Is Titan 800-720 the same as the complete fluid section?
No. Titan 800-720 is the piston subassembly. Titan 0532437A is the larger fluid-section assembly containing additional components.
Can a damaged piston assembly cause pressure loss?
Yes. Damage to the piston rod or outlet valve components can contribute to internal leakage or pressure instability. Other pump faults must also be considered.
Should the repacking kit be replaced with the piston assembly?
Inspect the existing packings and seals during piston service. Replacement of Titan 800-730 may be appropriate when those components are worn, but it is not automatically required in every repair.
No reviews yet. Be the first to review this product!
