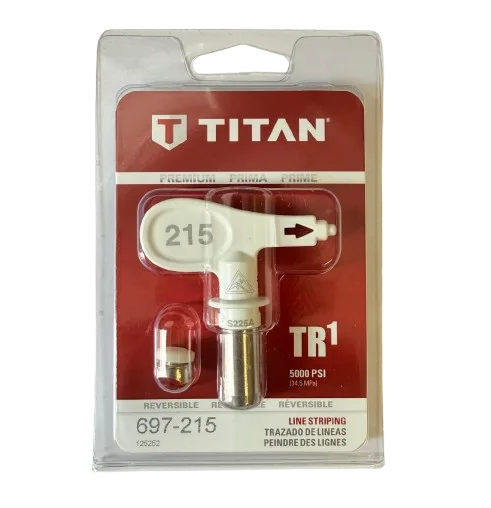

Titan 697-215 TR1 215 Line Striping Tip
TITAN TR1 REVERSIBLE LINE STRIPING TIP
Titan 697-215 TR1 215 Line Striping Tip delivers a narrow 2-inch nominal stripe through a .015-inch orifice. Built for professional airless marking, its reversible design supports sharp line edges, consistent width, uniform film build, and efficient coating application.
Titan's current line-striping chart lists approximately 0.24 GPM / 0.91 LPM flow for the .015-inch orifice and a 5,000 PSI maximum working pressure for the line-striping tip family. Confirm coating requirements and sprayer tip capacity before use.
| Detail | Technical / Commercial Information |
|---|---|
| Product Overview | Titan 697-215 is a professional reversible airless line-striping tip. Titan's current line-striping chart identifies the 215 configuration with a 2-inch / 51 mm nominal fan-pattern width and .015-inch orifice. The line-striping tip family carries a maximum working pressure of 5,000 PSI / 34.5 MPa. |
| Function | The precision .015-inch orifice meters coating while the tip geometry forms the narrow line-striping fan pattern. Titan explains its numbering system as stripe width followed by orifice size, so 215 denotes approximately a 2-inch stripe when sprayed 6 inches from the surface with a .015-inch orifice. |
| Industrial Applications | Designed for professional commercial and industrial line-marking applications where a narrow 2-inch nominal spray pattern is appropriate. Potential uses include pavement, facility, parking, athletic, stencil, layout, and other marking work when the selected coating is compatible with a .015-inch airless tip. |
| Accurate Compatible Titan Machines | 697-215 belongs to Titan's professional line-striping tip range for use with compatible Titan PowrLiner equipment and line-striping spray-gun systems. Exact compatibility depends on the individual machine's maximum supported tip size, number of guns in operation, coating requirements, and installed spray-gun guard. |
| Accurate Part Number | Titan 697-215 — TR1 215 Line Striping Tip. Current Titan documentation verifies a 2-inch / 51 mm nominal fan-pattern width and .015-inch orifice. Titan's chart lists approximately 0.24 GPM / 0.91 LPM reference flow for the .015-inch orifice. |
| Compatible Parts & Assemblies | Use with a compatible Titan line-striping spray gun, approved reversible-tip guard, tip seal, gun filtration, high-pressure hose, and suitable PowrLiner fluid-delivery system. Titan states that its premium reversible tips fit Titan spray-gun guards and most other industry spray-gun guards. |
| Related Parts Commonly Serviced Together | When replacing a worn line-striping tip, inspect the tip guard, tip seal, gun filter, gun fluid passages, high-pressure hose connections, and machine filtration. These supporting components can influence pressure stability, material delivery, spray-pattern definition, and overall stripe quality. |
| Common Problems Solved | A fresh 697-215 can restore the intended fan pattern when normal abrasive wear has enlarged an existing tip or reduced edge definition. The reversible design also allows the operator to rotate the tip to help clear certain obstructions before returning it to the normal spray position. |
| Use with Coating Systems | Use with compatible airless line-marking coatings whose manufacturer permits a .015-inch tip. Titan lists approximately 0.24 GPM / 0.91 LPM flow for this orifice size, calculated at 2,000 PSI with water. Actual coating output varies with pressure, viscosity, solids content, filtration, and material characteristics. |
| OEM & Brand Information | 697-215 is a genuine Titan Tool line-striping tip. Titan describes its line-striping tip technology as engineered for sharp line edges, consistent line width, and uniform film build. Current Titan documentation rates this tip family for a maximum working pressure of 5,000 PSI / 34.5 MPa. |
| Commercial Benefits | The 215 configuration gives contractors a narrow 2-inch nominal pattern with lower material flow than the .017-inch 217 and .019-inch 219 alternatives. Correct tip selection can help control coating consumption while preserving the sharp, consistent striping pattern Titan designed its line-striping tip family to deliver. |
Contractor Selection Insight
Choose Titan 697-215 when the project calls for a narrow 2-inch nominal stripe and your coating is approved for a .015-inch airless tip. Its approximately 0.24 GPM reference flow is lower than the .017-inch 697-217 and .019-inch 697-219 alternatives. This makes the 215 useful when controlled material delivery is important, but coating requirements should always determine the final tip choice.
FAQ Section
Key answers for contractors selecting Titan 697-215 TR1.
