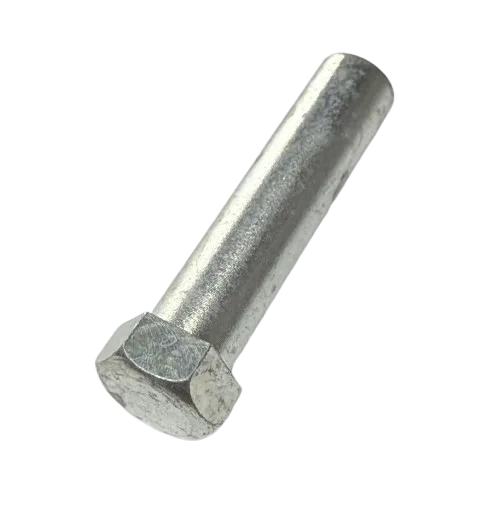

Part 520-028 is a trigger pivot screw that serves as the hinge point for the spray gun trigger mechanism. The screw allows the trigger to rotate smoothly against spring pressure, translating operator input into valve actuation for material flow control. When the original pivot screw becomes worn, bent, or lost, replacing it restores proper trigger action and reliable spray gun operation on compatible units.
| Part Number | 520-028 |
|---|---|
| Part Description | Trigger Pivot Screw |
| Brand | Graco |
| Fits | Airless SGX 20 Airless Gun; Airless S5; Airless G-15 XL Gun |
| Condition | New |
The Graco 520-028 Trigger Pivot Screw is a small but critical fastening component that establishes the pivot axis for the trigger mechanism on several Graco airless spray gun models, including the Airless SGX 20, Airless S5, and Airless G-15 XL Gun. This screw passes through the trigger and threads into the gun body, creating a hinge point that allows the trigger to rotate smoothly when the operator squeezes. The pivot screw must maintain precise clearances: too tight and the trigger binds, too loose and the trigger wobbles, affecting the operator's ability to modulate material flow. During normal use, the pivot screw experiences cyclic loading with each trigger pull. Over thousands of cycles, the screw can develop wear on its bearing surface, causing increased friction or play in the trigger movement. The screw may also become bent if the gun is dropped on the trigger, or it can back out over time due to vibration, leading to a loose or detached trigger. In some cases, the screw head may strip, or the threads may become damaged during disassembly for routine cleaning. A compromised pivot screw directly affects spray gun safety and control. A sticky trigger may not return to the closed position promptly, causing material to continue flowing after release. A loose trigger can feel unresponsive or may not fully actuate the valve stem, resulting in partial flow or no flow at all. Replacing the pivot screw restores factory-specified trigger movement, ensuring positive valve actuation and reliable shutoff. Given the low cost of the screw and the safety implications of proper trigger function, replacement is recommended whenever trigger action feels abnormal or during any major gun service.
| Trigger hinge | Provides a smooth pivot point for trigger rotation during operation |
|---|---|
| Clearance control | Maintains proper trigger alignment with the valve actuation stem |
| Return consistency | Allows the trigger spring to return the trigger to closed position reliably |
| Trigger stickiness | Trigger does not squeeze or release smoothly |
|---|---|
| Excessive play | Trigger wobbles side to side or has noticeable looseness |
| Poor return | Trigger fails to return fully after release, leaving valve open |
| Visible damage | Bent screw, stripped head, or damaged threads on the pivot screw |
Part 520-028 is compatible with the following Graco airless spray guns. Always confirm fitment using the correct parts diagram for your exact model and revision.
| Model | Component |
|---|---|
| Airless SGX 20 Airless Gun | Trigger pivot screw |
| Airless S5 | Trigger pivot screw |
| Airless G-15 XL Gun | Trigger pivot screw |
Trigger mechanism issues often involve multiple components. When servicing the pivot screw, these parts are commonly inspected at the same time.
Returns the trigger to the closed position; a weak or broken spring can mimic pivot screw wear.
The pivot hole in the trigger can become worn or elongated, causing play even with a new screw.
The component the trigger actuates; inspect for wear or sticking when servicing trigger parts.
