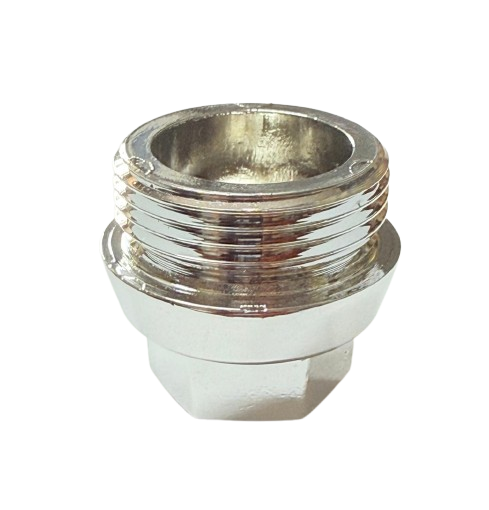

Titan 0538308 Rear Housing

$2.60
Available to Order
Part #: 538308
Titan RX-80 Spray Gun Replacement Parts

Restore your spray gun's housing assembly with the Titan 0538308 Rear Housing. Designed for the Titan RX-80 airless spray gun, this replacement component supports the designated rear housing structure and provides a targeted repair option when the original housing is damaged, worn, or unsuitable for continued service.

MANUFACTURERTitan
PART NUMBER0538308
PRODUCT TYPERear Housing
COMPATIBILITYTitan RX-80
Function: Replacement component for the RX-80 spray gun rear housing structure.
Parts Diagram: RX-80 Item 11.
Repair Application: Damaged or defective rear housing.
Ordering: Titan 0538308 Rear Housing.

Fitment & Safety: Confirm the RX-80 spray gun model and Item 11 diagram reference before ordering. Always relieve system pressure before disassembling the spray gun.

Quantity
Buy Now
Genuine OEM Part Fast Shipping Easy Returns
Genuine Titan RX-80 Airless Spray Gun Parts

Titan 0538308 Rear Housing for RX-80 Spray Gun

Repair the rear housing section of your Titan RX-80 airless spray gun with the Titan 0538308 Rear Housing. Identified as Item 11 in Titan's official RX-80 parts diagram, this original equipment replacement component is intended for servicing a damaged or defective rear housing while retaining other serviceable spray gun components.

MANUFACTURERTitan
PART NUMBER0538308
DIAGRAM REFERENCEItem 11
VERIFIED FITMENTTitan RX-80

Titan 0538308 Technical & Ordering Details

Product Overview Rear housing replacement component for the Titan RX-80 airless spray gun.
Manufacturer Titan
OEM Part Number 0538308
Official Description Rear Housing
Manufacturer-Verified Compatible Gun Titan RX-80 Airless Spray Gun
RX-80 Parts Diagram Item 11
Compatible Configurations RX-80 gun configurations using the manufacturer's specified rear housing, including applicable two-finger and four-finger trigger variants.
Component Location Rear housing section of the RX-80 spray gun assembly.
Primary Function Provides the designated rear housing structure within the spray gun's mechanical assembly.
Related Retractor Plate Titan 0538312, Item 13.
Related Collar Assembly Titan 0538303, Item 15.
Related Handle Titan 0538302, Item 16.
Related Lock Nut Titan 226-001, Item 12.
Related Seal Assembly Titan 0538210, Item 5.
Related Diffuser Titan 0538200, 7/8-inch Diffuser, Item 6.
Related Trigger Guard Titan 0538307, identified in the RX-80 parts diagram.
Construction Material Exact material and finish are not specified in the referenced manufacturer parts list.
Package Contents Individual rear housing replacement part. Confirm whether any installation hardware is supplied with the current sales package.
Typical Replacement Reasons Cracked, damaged, deformed or otherwise defective rear housing identified during gun inspection.
Industrial Applications Professional airless painting, contractor equipment servicing, residential painting and commercial coating work.
Coating Systems Compatible airless coating systems equipped with the Titan RX-80 spray gun.
OEM & Brand Titan original equipment replacement component.
Commercial Benefits Supports component-level repair of a serviceable RX-80 gun without requiring replacement of the complete spray gun.
Ordering & Safety Confirm the RX-80 model and Item 11 reference. Follow Titan's pressure-relief and repair procedures before servicing.

What Does the Titan 0538308 Rear Housing Do?

The Titan RX-80 airless spray gun is assembled from several mechanical, fluid-control and handle components. The rear housing is one of the manufacturer-designated parts within this assembly and provides the housing structure at the rear section of the gun.

A damaged rear housing may affect the condition or fit of the surrounding assembly. When inspection confirms that the housing itself is defective, replacement with the correct manufacturer-listed part helps maintain the original RX-80 component arrangement.

The rear housing is not the same as the gun handle, retractor plate, diffuser or internal seal assembly. These components have separate Titan part numbers and should be inspected and ordered according to their individual diagram references.

Titan RX-80 Rear Housing & Related Components

Item Part Number Description Relationship
11 0538308 Rear Housing This product
12 226-001 Lock Nut Separate listed component
13 0538312 Retractor Plate Separate listed component
15 0538303 Collar Assembly Separate listed component
16 0538302 Gun Handle Separate listed component
21 560-038 Handle Seal Separate listed component in applicable RX-80 diagram versions
Ordering clarification: These are related parts identified in the RX-80 assembly diagram. They are not confirmed contents of the individual Titan 0538308 Rear Housing purchase. Diagram item numbers and some sealing references can differ between manual revisions.

Compatible Titan Spray Guns

Spray Gun Configuration Fitment Reference
Titan RX-80 Two-finger trigger configuration Rear Housing, Item 11
Titan RX-80 Four-finger trigger configuration Rear Housing, Item 11

The manufacturer-documented fitment is the Titan RX-80 spray gun. A paint sprayer's machine model does not independently establish compatibility because spray guns may be replaced or changed during service. RX-Pro compatibility is not established for this part number.

Common Rear Housing Problems

Cracked Housing

Cracks or other visible structural damage may make the housing unsuitable for continued service.

Damaged Mounting Area

Damage at a connection point may interfere with proper assembly of related components.

Deformation or Wear

A visibly deformed or worn housing should be inspected before the spray gun is returned to service.

Incorrect Replacement

Using a housing intended for another spray gun series can result in an incorrect assembly fit.

Fluid leakage or trigger malfunction does not automatically indicate a defective rear housing. Inspect the seal assembly, diffuser, trigger components and surrounding hardware to identify the actual cause.

Installation & Safety Guidance

1. Relieve pressure. Follow the complete Titan pressure-relief procedure before handling or disassembling the spray gun.

2. Disable the sprayer. Turn off the equipment and disconnect its power source as directed in the operating manual.

3. Confirm the model. Verify that the spray gun is an RX-80 and identify Rear Housing Item 11 in the applicable parts diagram.

4. Inspect adjacent components. Examine the handle, collar, retractor plate, fastening hardware and associated sealing components for damage.

5. Follow the service manual. Disassemble the affected section using Titan's specified tools and sequence. Do not force or modify components to achieve fitment.

6. Install the replacement housing. Position the correct part and reassemble the spray gun according to the manufacturer's instructions.

7. Check mechanical operation. Confirm that the trigger, trigger lock and other affected components operate correctly while the system remains depressurized.

8. Perform safety checks. Complete the manufacturer-prescribed inspection and functional testing before returning the spray gun to service. Never check for high-pressure fluid leaks with your hands.

Related Titan RX-80 Replacement Parts

Titan 0538312 Retractor Plate

Separate RX-80 mechanical component identified as Item 13.

Titan 0538303 Collar Assembly

Related collar component identified as Item 15 in the RX-80 parts diagram.

Titan 0538302 Gun Handle

Separate handle component identified as Item 16.

Titan 0538210 Seal Assembly

Internal sealing component identified as Item 5.

Titan 0538200 Diffuser, 7/8 Inch

Separate diffuser component identified as Item 6.

Titan RX-80 Gun Repair & Replacement Parts

Buy Titan 0538308 Rear Housing

Order Titan 0538308 from AllTitanParts for RX-80 airless spray gun housing repairs. Match the original component to Item 11 in the manufacturer parts diagram and replace damaged housing hardware using the correct Titan service procedure.

Frequently Asked Questions

What is Titan 0538308 Rear Housing?

It is the manufacturer-listed rear housing replacement component for the Titan RX-80 airless spray gun, identified as Item 11 in the parts diagram.

Which Titan spray gun uses part 0538308?

Titan's official RX-80 parts documentation identifies 0538308 as the rear housing for that spray gun family.

Does Titan 0538308 include the handle or retractor plate?

The RX-80 parts diagram lists the handle and retractor plate under separate part numbers. Their inclusion with an individual 0538308 purchase is not established by the manufacturer parts list.

Does Titan 0538308 fit the RX-Pro spray gun?

The verified application is Titan RX-80. Do not assume RX-Pro compatibility without checking the manufacturer's RX-Pro parts documentation.

When should I replace the rear housing?

Replace it when inspection identifies damage, cracking, deformation or another defect that makes the original housing unsuitable for continued service. Follow Titan's service and safety instructions.
