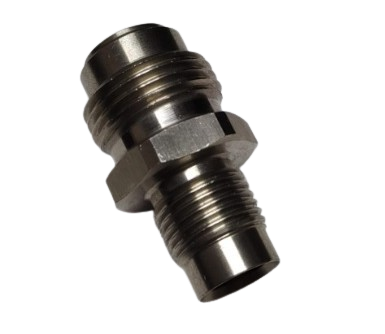

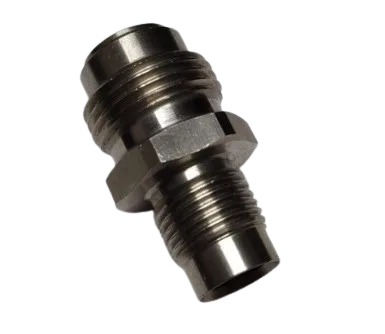

Titan 0538200 Diffuser, 7/8”

$42.87
$46.40
Save 8%
Available to Order
Part #: 538200
Titan RX-80 Spray Gun Replacement Parts

Maintain your spray gun with the Titan 0538200 Diffuser, 7/8 Inch. Designed for the Titan RX-80 airless spray gun, this replacement diffuser services the gun's fluid outlet assembly and is also included in the Titan 0538215 RX-80 Gun Repair Kit.

MANUFACTURER Titan
PART NUMBER 0538200
COMPONENT 7/8-Inch Diffuser
COMPATIBILITY Titan RX-80
Function: Services the designated spray gun fluid outlet and diffuser arrangement.
Parts Diagram: RX-80 Item 6.
Related Repair Kit: Titan 0538215.
Ordering: Titan 0538200.
Fitment & Safety: Confirm the RX-80 spray gun model and 7/8-inch diffuser configuration before ordering. Always relieve spray system pressure before servicing the gun.
Quantity
Buy Now
Genuine OEM Part Fast Shipping Easy Returns
Genuine Titan RX-80 Spray Gun Replacement Parts

Titan 0538200 Diffuser, 7/8 Inch

Maintain the fluid outlet assembly of your Titan RX-80 airless spray gun with the Titan 0538200 Diffuser, 7/8 Inch. This genuine replacement component is identified as Item 6 in the manufacturer parts diagram and is included in the Titan 0538215 RX-80 Gun Repair Kit. Order the individual diffuser for targeted repair or select the complete kit when additional internal components require replacement.

MANUFACTURERTitan
PART NUMBER0538200
DIAGRAM ITEMItem 6
VERIFIED FITMENTTitan RX-80

Titan 0538200 Technical & Ordering Details

Product Overview Replacement 7/8-inch diffuser for the Titan RX-80 airless spray gun.
Manufacturer Titan
OEM Part Number 0538200
Official Description Diffuser, 7/8"
Manufacturer-Verified Compatible Spray Gun Titan RX-80 Airless Spray Gun
Compatible Trigger Configurations RX-80 spray guns with two-finger or four-finger trigger configurations using the listed diffuser.
Parts Diagram Reference Item 6 in the Titan RX-80 exploded parts diagram.
Diffuser Designation 7/8 inch, as stated in Titan's official part description.
Primary Function Serves as the designated diffuser component in the spray gun's fluid outlet and internal valve arrangement.
Related Complete Repair Kit Titan 0538215 RX-80 Gun Repair Kit, which includes Items 5, 6 and 12.
Related Seal Assembly Titan 0538210 Seal Assembly, Item 5.
Related Lock Nut Titan 226-001 Lock Nut, Item 12.
Related Tip Guard Titan 0289228 Tip Guard, 7/8 Inch, Item 8.
Related Tip Sealing Parts Titan 0297007 Tip Seal and Titan 651-020 Seal, Items 9 and 10.
Common Repair Applications Replacement of a damaged, worn, or otherwise defective diffuser identified during RX-80 spray gun inspection.
Industrial Applications Professional airless painting, commercial coating applications, contractor maintenance and spray gun repair.
Coating Systems Compatible airless spraying systems equipped with the Titan RX-80 spray gun.
RX-Pro Distinction Titan lists diffuser 0538322 for the RX-Pro. Do not assume interchangeability with 0538200.
OEM & Brand Titan original equipment replacement component.
Commercial Benefits Supports component-level repair of a serviceable RX-80 gun, potentially avoiding the cost of replacing the complete spray gun.
Ordering & Safety Confirm the RX-80 model, Item 6 reference and 7/8-inch diffuser designation. Relieve all system pressure before service.

How Titan 0538200 Relates to the RX-80 Gun Repair Kit

Diagram Item Part Number Component Ordering Relationship
5 0538210 Seal Assembly Included in repair kit 0538215
6 0538200 Diffuser, 7/8 Inch This product; included in repair kit 0538215
12 226-001 Lock Nut Included with seal assembly and listed in repair kit
Important: This table describes the components of Titan 0538215, not the contents of an individual 0538200 diffuser purchase. Ordering 0538200 alone should not be assumed to include the seal assembly, lock nut or complete repair kit.

Function of the Titan 0538200 Diffuser

The Titan RX-80 spray gun controls the passage of pressurized coating material through its internal fluid-control components. The diffuser is a designated component in the gun's outlet arrangement and must remain in proper condition for the assembly to operate as designed.

A damaged or incorrectly installed diffuser may interfere with the intended fluid path or the fit of adjacent components. When inspection identifies damage to the original diffuser, replacing it with the manufacturer-specified part helps restore the correct assembly configuration.

The diffuser is separate from the reversible spray tip, tip guard and tip seals. Those components serve different functions and should be inspected independently during troubleshooting.

Compatible Titan RX-80 Spray Guns

Spray Gun Configuration Diffuser Reference
Titan RX-80 Two-finger trigger configuration 0538200, Item 6
Titan RX-80 Four-finger trigger configuration 0538200, Item 6

This is spray gun fitment rather than universal sprayer-model compatibility. Check the installed gun and its parts diagram. Titan RX-Pro uses a separately listed diffuser, 0538322.

Common Problems That May Require Diffuser Replacement

Physical Damage

Visible damage to the diffuser may require replacement.

Worn Fluid-Contact Surfaces

Wear should be assessed during gun maintenance.

Improper Assembly Fit

Damaged components can affect alignment with adjacent parts.

Incorrect Diffuser Selection

Using a diffuser from another gun series may create fitment problems.

Spray pattern problems, leaks or incomplete shutoff can also result from tip wear, clogged filters, damaged seals or other gun components. Diagnose the fault before replacing the diffuser.

Installation & Safety Guidance

1. Relieve pressure. Follow Titan's complete pressure-relief procedure before handling the spray gun.

2. Disable the sprayer. Turn off the equipment and disconnect its power source according to the manufacturer instructions.

3. Confirm the gun model. Verify the RX-80 identification and locate Item 6 in the parts diagram.

4. Inspect surrounding components. Examine the seal assembly, diffuser, lock nut and other associated parts for damage.

5. Follow Titan's repair procedure. Remove the damaged diffuser using the manufacturer's specified tools and service sequence.

6. Install the replacement. Fit the correct diffuser and follow all applicable tightening and reassembly instructions.

7. Check the trigger and lock. Confirm proper mechanical operation while the system remains depressurized.

8. Test safely. Complete manufacturer-prescribed leak and functional checks before returning the gun to service. Never use your hands to locate a pressurized fluid leak.

Related Titan RX-80 Spray Gun Parts

Titan 0538215 RX-80 Gun Repair Kit

Complete repair kit containing the 0538200 diffuser, 0538210 seal assembly and associated lock nut.

Titan 0538210 Seal Assembly

Internal RX-80 sealing assembly identified as Item 5.

Titan 226-001 Lock Nut

Related fastening component identified as Item 12.

Titan 0289228 Tip Guard

7/8-inch tip guard identified as Item 8.

Titan 0297007 Tip Seal

Separate spray tip sealing component identified as Item 9.

Titan RX-80 Gun Maintenance & Repair

Buy Titan 0538200 Diffuser, 7/8 Inch

Order the genuine Titan 0538200 diffuser from AllTitanParts for RX-80 spray gun service. Select the individual replacement component for a targeted repair or choose the Titan 0538215 Gun Repair Kit when the seal assembly and related components also require replacement.

Frequently Asked Questions

What is Titan 0538200 Diffuser?

It is the manufacturer-listed 7/8-inch diffuser for the Titan RX-80 airless spray gun, identified as Item 6 in the parts diagram.

Which Titan spray gun uses diffuser 0538200?

Titan's official service documentation identifies 0538200 for the RX-80 spray gun.

Is Titan 0538200 included in the RX-80 Gun Repair Kit?

Yes. Titan 0538215 includes the 0538200 diffuser, 0538210 seal assembly and 226-001 lock nut.

Does Titan 0538200 fit the RX-Pro spray gun?

The manufacturer lists diffuser 0538322 for the RX-Pro. Do not treat 0538200 and 0538322 as interchangeable without manufacturer confirmation.

Does the individual diffuser include the seal assembly or tip guard?

No additional components are established for the individual 0538200 listing. The seal assembly and tip guard are separately identified parts; the seal assembly is included when purchasing the designated 0538215 repair kit.
