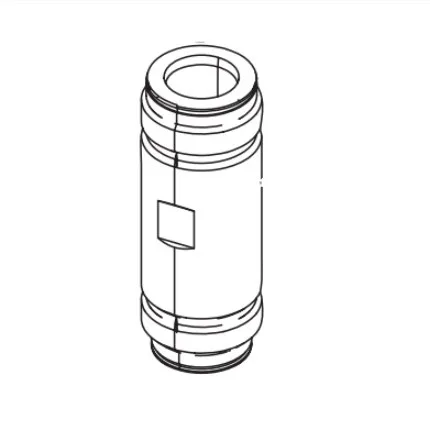

Titan 0533688 Cylinder

Name: Titan 0533688 Cylinder
Brand: Titan
SKU: 533688
Price: 833.70 USD
Availability: InStock

Sourced From:

Titan Tools Inc.

Titan WL64 Fluid Pump Cylinder

The Titan 0533688 Cylinder provides the precision internal bore used by the WL64 displacement rod and packing system in PowrCoat 1064 sprayers. Its condition directly supports smooth pump cycling, reliable sealing, pressure retention, and consistent material delivery.

Brand: Titan Part: 0533688 Type: Fluid Pump Cylinder Application: WL64 Fluid Section

Compatibility Table

Brand	Accurate Compatible Titan Machine(s)	Part Number	Parts / Assemblies Serviced With	Technical / Commercial Detail
Titan	PowrCoat 1064 Cart 05331064C; PowrCoat 1064 Wall Mount 05331064W	0533688	WL64 fluid pump; 0533689 displacement rod; 0533656 and 0533659 glands; 0533657 PTFE and 0533658 leather V-packings; 0533660 O-ring; 0533685 outlet housing	Replacement cylinder for restoring the WL64 pumping surface when scoring, wear, or corrosion compromises sealing and pressure.

Inspect the displacement rod, packings, glands, O-rings, valve components, and housing whenever cylinder wear causes leakage, pressure loss, or premature seal failure.

Retail Price: $992.5

You save: $158.8 (16.00%)

Our Price: $833.7

Description

Titan WL64 Severe-Service Fluid Pump Cylinder

Precision Cylinder Construction Ensures Smooth WL64 Fluid Delivery Every Operating Cycle

The 0533688 cylinder forms the primary pumping chamber within the Titan WL64 fluid section. Its precision internal surface guides the displacement rod and supports consistent packing contact, dependable pressure retention, and controlled coating movement through PowrCoat 1064 airless spraying systems.

Brand: Titan Part Number: 0533688 Type: WL64 Cylinder Application: Fluid Pump Assembly

Technical Category	Product Information
Product Overview	Titan replacement cylinder designed specifically for the WL64 severe-service fluid pump. It provides the internal pumping surface used by the displacement rod, packings, and fluid valves in PowrCoat 1064 sprayers.
Function	Forms the fluid pump chamber and guides the displacement rod through each stroke. A smooth, accurately sized bore allows the packing stack to maintain sealing contact while coating material is drawn into and discharged from the pump.
Industrial Applications	Suitable for PowrCoat 1064 equipment used in structural steel finishing, industrial maintenance, corrosion protection, tank coating, commercial painting, roofing, marine maintenance, and other high-output protective-coating applications.
Accurate Compatible Titan Machines	Titan PowrCoat 1064 Cart, model 05331064C, and Titan PowrCoat 1064 Wall Mount, model 05331064W. Both configurations use the WL64 fluid pump and 64:1 pressure ratio platform.
Accurate Part Number	Titan 0533688 — cylinder, WL64. Some inventory systems may display the shortened numerical reference 533688.
Compatible Parts & Assemblies	WL64 fluid pump assembly; 0533689 displacement rod; 0533685 outlet housing; 0533656 female gland; 0533659 male gland; 0533657 PTFE V-packing; 0533658 leather V-packing; 0533666 packing spring; 0533667 gasket; and 0533660 PTFE O-ring.
Related Parts Commonly Serviced Together	Inspect the displacement rod, upper packing stack, glands, spring, outlet housing, piston valve components, inlet ball, inlet seat, O-rings, gaskets, and complete WL64 repair kit during cylinder replacement.
Common Problems Solved	Replacement helps correct pressure loss, material bypass, irregular pump cycling, external packing leakage, rapid seal wear, reduced output, and poor priming caused by a scored, corroded, tapered, or excessively worn cylinder bore.
Use with Coating Systems	Designed for the WL64 severe-service pump used in Titan PowrCoat 1064 air-powered airless systems. The complete sprayer supports demanding protective coatings, multiple-gun work, and long hose configurations when properly equipped.
OEM & Brand Information	Titan-branded WL64 fluid-section component engineered for the PowrCoat 1064 pump configuration. It is specific to the WL64 pump size and should not be substituted with cylinders intended for WL45 or WL72 fluid sections.
Commercial Benefits	Restores a dependable pumping surface, protects new packings from premature damage, improves pressure consistency, supports stable material output, and helps contractors avoid repeat teardown caused by rebuilding around a worn cylinder.

FAQ Section

Review these contractor-focused answers before ordering or rebuilding a Titan WL64 fluid pump.

Frequently Asked Questions
Which Titan sprayers use this WL64 cylinder? It fits the WL64 fluid pump used on the Titan PowrCoat 1064 Cart model 05331064C and PowrCoat 1064 Wall Mount model 05331064W.
What does the WL64 cylinder do inside the pump? It forms the main fluid chamber and provides the internal surface through which the displacement rod travels while the pump draws in, pressurizes, and discharges coating material.
How can contractors identify a worn cylinder? Warning signs include visible scoring, corrosion, grooves, repeated packing failure, pressure loss, material bypass, inconsistent cycling, poor priming, and reduced fluid delivery.
Should the displacement rod be inspected during replacement? Yes. A scored, worn, bent, or corroded displacement rod can damage new packings and prevent the replacement cylinder from restoring dependable pump performance.
Does this cylinder fit PowrCoat 1045 or 1072 pumps? No. This cylinder is specific to the WL64 fluid pump used by the PowrCoat 1064. WL45 and WL72 pumps use differently sized fluid-section components.
