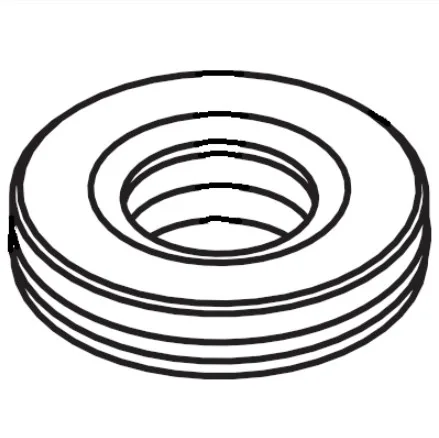

Titan 0532914 Upper Packing
Restore dependable upper pump sealing with the Titan 0532914 Upper Packing, a replacement component for compatible Titan Impact airless sprayer fluid sections. Positioned within the upper packing arrangement, this seal helps limit coating leakage around the reciprocating piston during pumping. Replace a worn or damaged upper packing to address leakage associated with deteriorated piston seals and support reliable fluid-section performance without automatically replacing the complete pump assembly.
Fitment: Match part 0532914 to your exact machine's fluid-section parts diagram.
A targeted sealing replacement for upper packing wear. Inspect the piston and adjoining seals before ordering to determine whether a single packing or complete repacking service is appropriate.
Restore Dependable Pump Sealing with Titan 0532914 Upper Packing
Maintain effective piston sealing with the Titan 0532914 Upper Packing, a manufacturer-documented replacement component for Titan Impact 340 and Titan Impact 400 airless sprayers. Identified as item 7 in Drive Assembly II and included in Titan Packing Kit 0532911, this upper packing helps prevent coating leakage around the reciprocating pump piston. Replacing worn sealing components can help restore fluid-section performance and reduce material loss caused by deteriorated pump packings.
Exact Titan Sprayer Models for Part 0532914
The Titan 0532914 Upper Packing is identified in the applicable manufacturer Drive Assembly II parts diagrams for:
- Titan Impact 340 Airless Sprayer
- Titan Impact 400 Skid Airless Sprayer
- Titan Impact 400 Cart Airless Sprayer
Diagram identification: Drive Assembly II, item 7.
Titan also identifies 0532914 as an upper packing component in Packing Kit 0532911. Do not assume compatibility with every Titan Impact sprayer. Other models may use different piston dimensions, packing profiles, or fluid-section configurations.
How the Titan 0532914 Upper Packing Supports Pump Performance
A piston-type airless sprayer develops coating pressure through the repeated movement of its piston within the pump fluid section. Proper sealing is necessary to restrict unwanted material leakage while allowing the piston to move through its normal operating cycle.
The Titan 0532914 Upper Packing forms part of the upper piston sealing arrangement. Its role is to maintain contact with the designated piston surface and help contain coating material within the intended fluid path.
The upper packing works in conjunction with the upper bushing, lower packing, piston rod, and other fluid-section components. Each part has a separate function, but their condition collectively influences pump sealing and reliability.
Repeated piston movement, abrasive coating particles, contamination, improper cleaning, or damaged mating surfaces can accelerate packing wear. Once the upper seal becomes damaged or loses its ability to maintain the intended contact, material may begin escaping near the upper pump area.
Replacing a confirmed defective upper packing can help correct leakage originating at that seal. However, persistent pressure loss or irregular pumping should also prompt inspection of the lower packing, inlet and outlet valves, suction connections, and piston condition.
Upper Packing Inspection and Replacement Guidance
Servicing the Titan 0532914 Upper Packing requires careful handling of the pump's sealing surfaces. Follow the applicable Titan Impact manual and use the correct repair components for the installed fluid-section configuration.
Step 1: Shut down the equipment. Switch off the sprayer, disconnect electrical power, and complete the pressure-relief procedure specified in the manufacturer's operating manual.
Step 2: Identify the packing location. Locate item 7 in Drive Assembly II and confirm the relationship between the upper packing, upper bushing, and piston-pump housing.
Step 3: Inspect the existing seal. Examine the upper packing for wear, deformation, cuts, cracking, or other damage. Check for evidence of coating leakage around the upper pump area.
Step 4: Inspect associated components. Evaluate the piston rod, upper bushing, lower packing, and sealing surfaces. A damaged piston can rapidly wear a replacement packing, so the cause of premature deterioration should be corrected.
Step 5: Install the correct replacement. Follow Titan's instructions for packing orientation, lubrication, reassembly, and tightening. Do not reverse the packing or force it over damaged piston surfaces.
Step 6: Verify sealing performance. After reassembly, carry out the manufacturer's recommended operating checks and inspect for leakage. If the pump continues to lose pressure, investigate other fluid-section components before purchasing additional parts.
Related Titan Impact Fluid Section Repair Parts
Upper packing replacement is an opportunity to inspect neighboring pump seals and piston components. Titan identifies the following parts in its applicable service documentation.
Related parts are listed for repair planning. Purchasing Titan 0532914 individually does not mean the complete 0532911 Packing Kit or other listed components are included.
Buy Titan 0532914 Upper Packing
Order the Titan 0532914 Upper Packing for your compatible Impact 340 or Impact 400 airless sprayer. Replace a worn upper piston seal with the correctly identified component and maintain reliable fluid-section sealing through proper pump maintenance.
Shop Titan 0532914 Upper PackingFrequently Asked Questions
Find exact machine compatibility, upper packing function, and maintenance guidance for Titan 0532914.
Which Titan machines are compatible with 0532914?
Titan Impact 340, Titan Impact 400 Skid, and Titan Impact 400 Cart airless sprayers are manufacturer-documented applications. Confirm the fluid-section revision before ordering.
Does Titan 0532914 fit the Impact 340?
Yes. Titan's Impact 340 service documentation identifies 0532914 as the Upper Packing and lists it within Packing Kit 0532911.
Does Titan 0532914 fit the Impact 400?
Yes. Titan Impact 400 Skid and Cart configurations list part 0532914 as the Upper Packing in the applicable Drive Assembly II documentation.
What does the Titan 0532914 Upper Packing do?
It helps seal the upper piston area within the fluid section, limiting unwanted coating leakage around the reciprocating piston.
Can a worn upper packing cause fluid leakage?
Yes. Deterioration of the upper packing may allow coating material to escape around the upper piston sealing area. Inspect the piston and adjoining components before replacement.
Is Titan 0532914 included in Packing Kit 0532911?
Yes. Titan's service documentation lists 0532914 Upper Packing as one of the components in its 0532911 Fluid Section Packing Kit.
Is the upper packing the same as the lower packing?
No. Titan 0532914 is the Upper Packing, while Titan 0532915 is the Lower Packing. They occupy different sealing positions and have separate part numbers.
Should I replace both upper and lower packings?
During a complete fluid-section repacking service, both upper and lower packings are commonly replaced using the applicable manufacturer repair kit. Follow Titan's instructions and inspect the condition of the entire sealing arrangement.
Does Titan 0532914 fit every Titan Impact sprayer?
No universal Impact-series fitment is established. The documented applications here are the Impact 340 and Impact 400. Check other sprayer models against their own manufacturer parts lists.
Where can I buy Titan 0532914 Upper Packing?
Shop the Titan 0532914 Upper Packing at AllTitanParts after confirming your machine model and fluid-section configuration.
