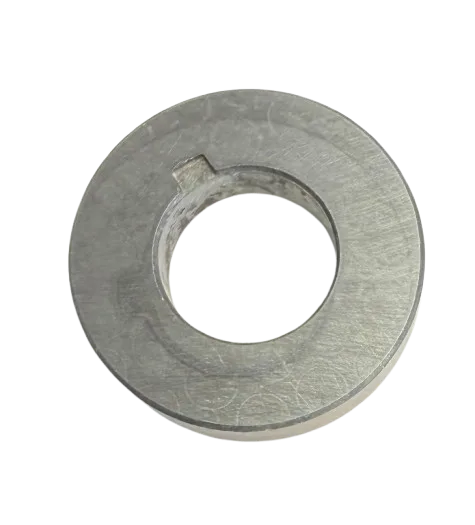

Titan 0532345 Inlet Valve Seat

Restore Pump Priming and Pressure with Titan 0532345 Inlet Valve Seat

Keep your airless paint sprayer operating efficiently with the Titan 0532345 Inlet Valve Seat, a replacement fluid-section component designed for the Titan Impact 340 and Titan Impact 400 Airless Sprayers. This precision sealing component provides the contact surface for the inlet check-valve ball, helping coating material enter the pump during the intake stroke while restricting reverse flow during the pressure stroke. When the seat becomes worn, scored, pitted, or damaged, the pump may experience poor priming, pressure fluctuations, or reduced material output. Replacing a defective Titan 0532345 Inlet Valve Seat helps restore proper valve sealing and supports dependable spraying performance. The seat is also included in Titan 0532916 Valve Seat Kit for a more comprehensive valve repair.

Titan 0532345 Inlet Valve Seat Compatible Machines

The following Titan machines are confirmed to use inlet valve seat part 0532345 in their documented fluid-section configurations.

Repair kit compatibility: Titan 0532916 Valve Seat Kit includes the 0532345 inlet valve seat and associated valve-service components for these Impact models.

Important: Other Titan sprayers may use the same inlet valve ball but a different seat. For example, some Titan Advantage and Impact fluid sections specify Titan 762-137. Confirm your exact model and revision before ordering.

How the Titan 0532345 Inlet Valve Seat Works

Airless paint sprayers use reciprocating pumps to draw coating material into the fluid section and discharge it under pressure. The inlet check valve plays an important role in controlling the direction of fluid movement.

During the intake stroke, the inlet valve ball moves away from the Titan 0532345 Inlet Valve Seat, allowing coating material to enter the pump chamber.

During the pressure stroke, the ball returns toward the seat. The seat's contact surface helps form the closure needed to restrict reverse flow toward the suction inlet.

The inlet valve cage retains the ball within its intended operating area, while the PTFE O-ring and related seals help maintain sealing between adjoining valve components.

If the seat becomes worn, pitted, or contaminated, the ball may not close properly. Fluid can then bypass the valve, contributing to poor priming, pressure loss, or inconsistent pump output.

Benefits of Replacing a Worn Titan Inlet Valve Seat

Signs Titan 0532345 Inlet Valve Seat May Need Replacement

Pump primes but fails to build pressure: Internal leakage through the inlet check valve may prevent the pump from reaching the expected operating pressure.

Difficulty drawing coating material: Poor inlet-valve operation can interfere with reliable pump filling.

Pressure fluctuations: Inconsistent ball-to-seat sealing may contribute to irregular pump performance.

Visible pitting or scoring: Surface damage may prevent the valve ball from forming a proper seal.

Embedded coating debris: Hardened material or contamination can prevent the ball from seating correctly.

Repeated valve problems: If a new inlet valve ball does not resolve the problem, inspect the seat, cage, O-ring, suction system, and other fluid-section components.

Titan 0532345 Inlet Valve Seat Inspection and Replacement Guide

Safety: Airless sprayers operate at hazardous fluid pressures. Shut down the sprayer, disconnect its power supply, and follow the complete manufacturer pressure-relief procedure before opening the pump. Never check for high-pressure leaks using your hands.

Step 1: Verify compatibility. Confirm part 0532345 in the Titan Impact 340 or Impact 400 Drive Assembly II parts diagram.

Step 2: Access the inlet valve. Follow the applicable Titan service manual to remove the inlet valve housing and expose the valve components.

Step 3: Remove the existing seat. Carefully disassemble the inlet valve without scratching the housing or damaging adjacent components.

Step 4: Inspect the valve ball. Check Titan 762-145 for pitting, scoring, or surface damage. Replace a defective ball when servicing the seat.

Step 5: Inspect related components. Examine Titan 704-703 Inlet Valve Cage, Titan 762-058 Seat O-Ring, and Titan 700-821 Inlet Valve Seal.

Step 6: Clean the assembly. Remove coating residue and debris using the manufacturer's approved cleaning methods. Do not grind or alter the sealing surfaces.

Step 7: Install the new seat. Position Titan 0532345 with the notched side facing downward, as specified in the Titan service instructions. Install the remaining valve components in the correct sequence.

Step 8: Reassemble the fluid section. Apply the manufacturer's specified tightening requirements and ensure the inlet valve components are correctly seated.

Step 9: Verify operation. Perform the required priming, pressure, and leak checks before returning the sprayer to service.

Related Titan Impact 340 and Impact 400 Valve Repair Parts

These components are associated with the documented inlet-valve arrangement or related fluid-section maintenance.

Titan 0532345 is an individually listed inlet valve seat. Related balls, cages, seals, housings, and repair kits are separate products unless specifically included in a purchased kit.

Buy Titan 0532345 Inlet Valve Seat

Order the Titan 0532345 Inlet Valve Seat from AllTitanParts for your compatible Titan Impact 340 or Impact 400 Airless Sprayer. Restore the specified inlet-valve sealing surface and keep your pump ready for dependable coating delivery.

Frequently Asked Questions

Answers about Titan 0532345 Inlet Valve Seat compatibility, pressure loss, installation, and related repair parts.
