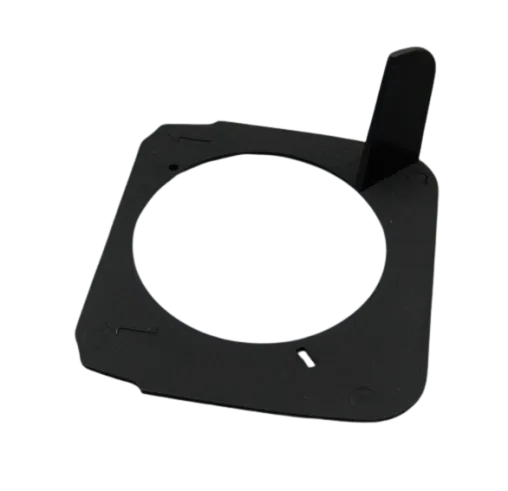

Titan 0532326 Motor Baffle
Maintain proper motor airflow management with the Titan 0532326 Motor Baffle, a replacement component designed for the motor assembly of applicable Titan airless paint sprayers. This baffle helps direct cooling airflow around the motor while replacing cracked, damaged, or missing motor ventilation components.
Assembly: Motor baffle and cooling airflow assembly.
A practical replacement for damaged motor baffles. Order Titan 0532326 by its exact part number to help maintain proper motor component positioning and equipment reliability.
Titan 0532326 Motor Baffle for Impact 400 Sprayer Repairs
Restore the motor's intended cooling-airflow arrangement with the Titan 0532326 Motor Baffle. Listed in the drive assemblies of Titan Impact 400 S and Impact 400 C airless paint sprayers, this replacement baffle is designed for the motor compartment. Replace a cracked, broken, or missing baffle to maintain the manufacturer's specified motor assembly configuration.
Confirm Your Titan Impact 400 Motor Baffle
Titan 0532326 is documented for the Impact 400 S stand configuration and Impact 400 C cart configuration. Both machines identify this motor baffle as item 4 in the drive assembly. Do not assume interchangeability with other Impact models because different sprayers may use different motor baffle designs. Confirm the exact part number in your machine's parts list before purchasing.
When Should You Replace the Titan 0532326 Motor Baffle?
Inspect the motor baffle during authorized motor and drive assembly maintenance. Replacement may be appropriate when the original component is physically damaged or no longer fits securely.
- Cracked or broken motor baffle surfaces.
- Damaged mounting points or attachment areas.
- Heat-related deformation of the baffle.
- Missing motor baffle components.
- Damage that interferes with the intended motor ventilation arrangement.
Service reminder: Disconnect electrical power and follow the Titan service manual before accessing the motor compartment. Inspect related hardware and avoid operating the sprayer with loose or damaged motor components.
FAQ Section
Common questions about Titan 0532326 Motor Baffle fitment, function, and replacement.
What is Titan 0532326 Motor Baffle?
Titan 0532326 is a motor baffle used in compatible Titan electric airless sprayers. It helps maintain the intended cooling airflow arrangement within the motor compartment.
Which Titan machines are compatible with part 0532326?
Verified compatible machines are Titan Impact 400 S stand model and Titan Impact 400 C cart model. Both identify part 0532326 in their drive assembly diagrams.
Does Titan 0532326 fit every Impact sprayer?
No universal Impact-series compatibility has been established. The documented applications are Impact 400 S and Impact 400 C. Check the parts diagram for other Impact models.
What screws are associated with the motor baffle?
The Impact 400 S/C drive assembly diagram lists Titan 700-139 screws adjacent to the motor baffle. The diagram specifies four screws at item 2. Confirm the installation requirements in your equipment manual.
Can a damaged motor baffle affect cooling?
A damaged or incorrectly installed motor baffle may interfere with the intended cooling airflow path. Inspect the motor and surrounding ventilation components if overheating or physical damage is suspected.
Should I replace the complete motor assembly?
Not necessarily. If the motor remains serviceable and only the baffle is damaged, replacing the individual motor baffle may be sufficient. Inspect the surrounding components before deciding on additional repairs.
