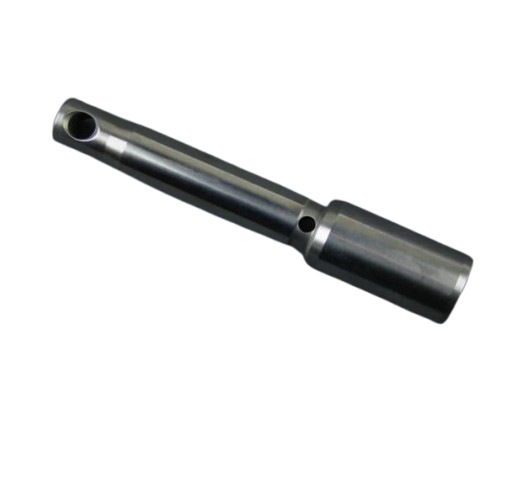

Titan 0532254A Piston Assembly
Restore your airless sprayer's pumping mechanism with the Titan 0532254A Piston Assembly, a replacement fluid-section component designed for designated Titan piston-pump configurations. The piston assembly participates in the pump's reciprocating motion, helping move coating material through the fluid section under pressure. Replacing a worn, scored, or damaged piston assembly can help address performance problems when diagnosis identifies this component as the cause. Ideal for planned pump repairs and professional sprayer maintenance, part 0532254A should be matched to the exact machine model and fluid-section parts diagram before ordering.
Restore Pump Performance with Titan 0532254A Piston Assembly
Repair a worn airless sprayer fluid section with the Titan 0532254A Piston Assembly, a replacement pumping component listed for the Titan Impact 340 and Titan Impact 400 Airless Sprayers. The piston assembly operates inside the pump's fluid section, where its reciprocating movement helps draw in coating material and deliver it under pressure to the spray system. Titan's Impact 400 documentation identifies this component as a piston assembly with metal upper cage and lists the assembly together with its associated outlet valve components. A damaged piston, worn sealing surfaces, or defective outlet valve components can contribute to reduced material delivery, inconsistent pressure, and interruptions during spraying. Replacing the affected assembly as part of a properly diagnosed repair helps restore the fluid section's intended mechanical operation. Whether servicing an Impact 340 used for residential painting or an Impact 400 used for professional coating work, selecting the correct Titan 0532254A part number is essential for accurate pump maintenance.
Titan 0532254A Compatible Airless Sprayer Models
The following machines are listed for Titan 0532254A. Always compare the original piston assembly and the correct fluid-section parts diagram before installation.
Titan Impact 400 Airless Sprayer
The Titan Impact 400 is a manufacturer-documented application. Its operating manual identifies 0532254A as the piston assembly in the fluid section and describes the service assembly as having a metal upper cage. Confirm the appropriate machine revision and the piston assembly shown in your parts diagram.
Titan Impact 340 Airless Sprayer
AllTitanParts lists 0532254A for the Titan Impact 340. Before purchase, confirm that your Impact 340 fluid section uses this exact piston assembly rather than a different piston revision or service configuration.
Additional Cross-Market Equipment References
A specialist parts supplier also associates the same part number with Titan Performance 460E, Titan Performance 560E and Wagner ProSpray 3.20. These are supplier-listed applications and should be verified against the individual machine's parts documentation before ordering.
Compatibility Warning: Titan Impact 340, Impact 400, Impact 440 and other Impact sprayers do not necessarily share identical piston assemblies. Do not use model-family similarity as proof of fitment.
How the Titan 0532254A Piston Assembly Works
The fluid section is responsible for moving paint or other approved coating materials from the supply container into the high-pressure spray system. Inside the pump, the piston assembly moves repeatedly through a controlled stroke as the drive mechanism operates.
The Titan 0532254A Piston Assembly forms part of this reciprocating pumping system. Its movement works with the fluid-section packings, inlet valve and outlet valve to establish directional coating flow and generate the pressure required for airless spraying.
The manufacturer identifies a metal upper cage in this assembly. The associated outlet valve components are important because they help control coating movement through the piston assembly during pump operation.
When piston surfaces become worn or internal valve components no longer seal correctly, the fluid section may struggle to maintain consistent material delivery. Accurate diagnosis is necessary because similar symptoms can also result from worn packings, inlet valve problems, blocked filters or air entering the suction system.
Benefits of Replacing a Worn Titan 0532254A Piston Assembly
Targeted pump repair: Replaces the identified piston assembly rather than requiring an entire sprayer replacement.
Improved pumping performance: Can help restore coating displacement when piston wear is responsible for reduced output.
Pressure recovery: Addresses piston-related internal leakage when the component has been correctly diagnosed as defective.
Documented assembly design: Includes the metal upper cage configuration identified in Titan's service documentation.
Accurate parts identification: The exact 0532254A reference helps technicians match the correct service component.
Professional maintenance support: Useful for repairing compatible Impact sprayers used in residential, commercial and contractor painting applications.
Signs Your Titan Piston Assembly May Need Replacement
Reduced spray pressure: The sprayer cannot maintain normal operating pressure despite correct setup.
Low material output: Coating flow remains weak after filters, suction components and spray tips have been checked.
Excessive pump cycling: The pump continues cycling more frequently than expected because of a possible internal sealing problem.
Scored piston surfaces: Inspection reveals grooves, scratches or other wear on the piston.
Outlet valve damage: The piston-associated valve ball, seat or retaining components show wear or damage.
Inconsistent priming: Pump performance is irregular after other common causes have been eliminated.
These symptoms are not exclusive to a defective piston assembly. Inspect the entire fluid section before selecting replacement parts.
Titan 0532254A Piston Assembly Replacement Guide
Airless sprayers can cause serious fluid-injection injuries. Disconnect electrical power, complete the manufacturer's full pressure-relief procedure and follow the applicable Titan service manual before disassembling the fluid section. Internal pump repair should be performed by qualified personnel.
Step 1: Confirm the correct part. Match Titan 0532254A to your machine's model, revision and fluid-section diagram.
Step 2: Diagnose the pump. Check the inlet valve, outlet valve, packings, suction system and other potential causes of pressure loss before removing the piston.
Step 3: Shut down safely. Disconnect power and perform the complete manufacturer-prescribed pressure-relief procedure.
Step 4: Access the fluid section. Follow the service manual's prescribed sequence for removing the necessary pump components.
Step 5: Remove the worn assembly. Carefully disassemble the piston and associated components according to the applicable exploded diagram.
Step 6: Inspect related components. Examine the cylinder, packings, valve seats, valve balls, seals and connecting hardware for damage.
Step 7: Install the replacement. Fit the Titan 0532254A assembly using the exact sequence, component orientation, lubrication instructions and tightening specifications in the service manual.
Step 8: Reassemble the pump. Restore all fluid-section components and connections, replacing additional worn parts where necessary.
Step 9: Test the sprayer. Follow the approved startup and priming procedure. Inspect for leaks and verify stable operation without touching pressurized fittings.
Step 10: Maintain the fluid section. Clean the sprayer after use and follow the prescribed packing lubrication and inspection schedule.
Related Titan Impact 340 and Impact 400 Pump Repair Parts
When replacing a piston assembly, inspect related fluid-section components for wear or damage. The following parts appear in applicable Titan Impact service documentation or related parts catalogs.
Related parts and tools are sold separately. Verify the correct component numbers and machine revision before ordering.
Frequently Asked Questions
Find answers about Titan 0532254A compatibility, pump function, service requirements and replacement.
What is Titan 0532254A Piston Assembly?
Titan 0532254A is a replacement piston assembly for designated airless sprayer fluid sections. Titan's Impact 400 documentation identifies it as a piston assembly with a metal upper cage.
Does Titan 0532254A fit Impact 400?
Yes. The Titan Impact 400 operating manual explicitly lists part 0532254A as the piston assembly in its fluid-section parts diagram.
Is Titan 0532254A compatible with Impact 340?
AllTitanParts lists Titan 0532254A for the Impact 340. Confirm your machine's fluid-section diagram and revision before ordering.
What components are associated with the Titan 0532254A assembly?
Titan's Impact 400 diagram identifies the piston assembly with associated upper cage, washer, outlet valve ball, outlet valve seat and retaining components. Confirm the exact packaged contents before ordering.
What does the Titan 0532254A piston assembly do?
It participates in the fluid section's reciprocating pumping action, helping draw coating material into the pump and move it under pressure toward the spray system.
Can a worn piston assembly cause low spray pressure?
Yes. Piston wear or associated outlet valve damage can contribute to pressure loss. However, worn packings, inlet valve problems and other fluid-section faults can produce similar symptoms.
Is Titan 0532254A the replacement for 0532204A?
A specialist parts supplier identifies 0532204A as an earlier reference for 0532254A. Confirm the supersession against your machine's original parts documentation before substituting either number.
Should I inspect the pump packings when replacing Titan 0532254A?
Yes. Inspect the upper and lower packings, cylinder surfaces, inlet valve and outlet valve during fluid-section service. Replace worn components according to the applicable Titan manual.
Can I install Titan 0532254A without replacing the entire pump?
Yes, when the piston assembly is the identified defective component and the surrounding fluid-section parts remain serviceable. Follow the manufacturer's repair procedure and replace other damaged components as necessary.
Where can I buy Titan 0532254A Piston Assembly?
Order the Titan 0532254A Piston Assembly from AllTitanParts for compatible Titan Impact fluid-section repairs.
