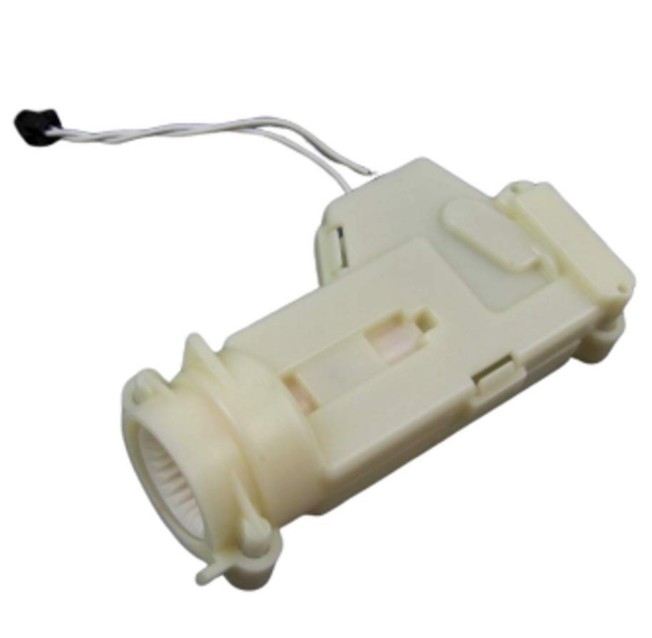

Titan 0532216A Pressure Switch
Restore dependable pressure-control switching with the Titan 0532216A Pressure Switch, a replacement component listed for applicable Titan Impact 400 Airless Sprayers. Located within the Drive Assembly II component group, this switch participates in the sprayer's electrical pressure-control system. Replace a confirmed faulty switch to address pressure-control switching problems while preserving the intended operation of the machine's existing control assembly.
Assembly: Drive Assembly II, pressure-control electrical components.
A targeted replacement for a diagnosed pressure-switch fault. Verify part number 0532216A against the installed switch and Titan parts diagram before ordering.
Restore Pressure Control Switching with Titan 0532216A Pressure Switch
Maintain reliable pressure-control operation with the Titan 0532216A Pressure Switch, a manufacturer-documented replacement component for the Titan Impact 340 and Titan Impact 400 airless sprayers. Identified as item 4 in Drive Assembly II, this electrical switching component forms part of the machine's pressure-control system. When testing confirms a defective switch, replacing the specified component can help restore normal control operation without unnecessarily replacing the entire drive or pressure-control assembly.
Exact Titan Sprayer Models for Part 0532216A
The Titan 0532216A Pressure Switch is specifically listed in the Drive Assembly II parts documentation for the following airless sprayers:
- Titan Impact 340 Airless Sprayer
- Titan Impact 400 Skid Airless Sprayer
- Titan Impact 400 Cart Airless Sprayer
Diagram identification: Drive Assembly II, item 4.
These documented applications should not be extended automatically to every Titan Impact model. Other sprayers may have different electrical controls or pressure-switch configurations. Verify the exact part number against the appropriate manufacturer parts list before purchase.
Understanding the Titan 0532216A Pressure Switch
Electric airless sprayers rely on coordinated mechanical, hydraulic, and electrical components to maintain suitable operating pressure. The pressure-control system responds to the selected pressure setting and the conditions encountered as coating material moves through the pump, hose, and spray gun.
The Titan 0532216A Pressure Switch is one of the electrical components identified within this system. Its switching function must operate correctly alongside the machine's pressure-adjustment hardware and associated control components.
A malfunctioning switch can interfere with the intended control sequence. However, a sprayer that fails to start, cycles unexpectedly, or does not respond to adjustment may also have a damaged cord, faulty electrical connection, defective transducer, control-system problem, or fluid-section issue.
For this reason, pressure-switch replacement should follow a confirmed diagnosis rather than symptom matching alone. Correct identification of the defective component helps avoid unnecessary replacement of serviceable parts.
Pressure Switch Inspection and Repair Guidance
Before replacing the Titan 0532216A Pressure Switch, confirm that the observed fault originates from the switch rather than another part of the electrical or hydraulic pressure-control system.
Step 1: Shut down the sprayer safely. Turn the equipment off, disconnect electrical power, and perform the pressure-relief procedure specified in the Titan owner's manual.
Step 2: Identify the installed control assembly. Confirm that the machine is a documented Impact 340 or Impact 400 configuration and locate item 4 in its Drive Assembly II parts diagram.
Step 3: Arrange professional electrical diagnosis. Titan specifies that electrical work should be performed by an authorized service center. Qualified service personnel should determine whether the switch or another control-system component is responsible for the fault.
Step 4: Confirm the replacement part. Verify the exact 0532216A part number and check the condition of associated connections and adjacent components before installation.
Step 5: Replace according to Titan instructions. Authorized service personnel should install the specified switch using the correct electrical service procedure. Do not bypass the switch, alter wiring, or substitute an unverified electrical component.
Step 6: Test the repaired equipment. After reassembly, the service technician should verify normal control response and safe operating behavior before the sprayer is returned to painting service.
Related Titan Impact Pressure Control Replacement Parts
Pressure-control troubleshooting may involve several components shown in the same Drive Assembly II parts diagram. The following items are separately identified and should be replaced only when inspection or testing establishes a need.
Related components are listed for maintenance planning and are not automatically included with Titan 0532216A Pressure Switch. Verify each product's package contents before ordering.
Buy Titan 0532216A Pressure Switch
Order the Titan 0532216A Pressure Switch for your compatible Titan Impact 340 or Impact 400 airless sprayer. Choose the manufacturer-listed replacement component for a confirmed pressure-switch fault and restore the machine's intended control-system operation through proper servicing.
Shop Titan 0532216A Pressure SwitchFrequently Asked Questions
Find machine compatibility, pressure-switch function, and maintenance information for Titan 0532216A.
Which Titan machines are compatible with 0532216A?
Manufacturer parts documentation identifies Titan Impact 340, Titan Impact 400 Skid, and Titan Impact 400 Cart airless sprayers as compatible applications for part 0532216A.
Does Titan 0532216A fit the Impact 340?
Yes. Titan's Impact 340 parts documentation lists 0532216A as the pressure switch in Drive Assembly II.
Does Titan 0532216A fit the Impact 400?
Yes. Titan Impact 400 documentation identifies 0532216A for both Skid and Cart configurations in the Drive Assembly II component group.
What does the Titan 0532216A Pressure Switch do?
It performs an electrical switching function within the sprayer's pressure-control system. Its correct operation supports the intended control sequence alongside other designated components.
Can a faulty pressure switch prevent a sprayer from starting?
A defective pressure switch may contribute to control-system failure. However, starting problems can also result from power-supply faults, wiring issues, or other electrical components, so professional diagnosis is necessary.
Is the pressure switch the same as the transducer assembly?
No. Titan 0532216A is the pressure switch, while Titan 0532223A is the transducer assembly. They are separate components with different roles in the pressure-control system.
Where is Titan 0532216A located?
The pressure switch is identified as item 4 in Drive Assembly II of the applicable Titan Impact 340 and Impact 400 exploded parts diagrams.
Can I replace the pressure switch myself?
Titan's manuals state that electrical work should be performed by an authorized service center. The switch should be diagnosed and replaced by appropriately qualified service personnel.
Does Titan 0532216A fit every Impact-series sprayer?
No universal Impact-series compatibility is established. The documented applications here are the Impact 340 and Impact 400. Other models must be checked against their own manufacturer parts manuals.
Where can I buy Titan 0532216A Pressure Switch?
Purchase the Titan 0532216A Pressure Switch from AllTitanParts after confirming your machine and diagnosing the electrical fault.
