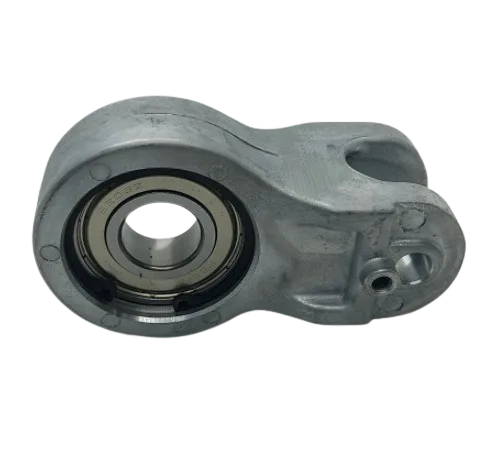

Titan 0532203A Yoke Assembly
Restore dependable mechanical pump operation with the Titan 0532203A Yoke Assembly, a replacement component for compatible Titan Impact airless sprayers. The yoke forms part of the drive-to-piston linkage, helping transmit the reciprocating motion required for pumping. Replacing a worn, cracked, or damaged yoke assembly can help correct confirmed linkage faults and maintain the intended movement of the piston-pump mechanism. Match part number 0532203A to your machine's parts diagram before ordering.
Assembly: Mechanical drive and piston linkage.
A targeted replacement for diagnosed yoke or piston-linkage damage. Inspect associated drive components and confirm the installed assembly before purchasing.
Restore Reliable Pump Motion with Titan 0532203A Yoke Assembly
Maintain the mechanical connection between your sprayer's drive mechanism and piston pump with the Titan 0532203A Yoke Assembly. This manufacturer-listed replacement part fits the Titan Impact 340 and Titan Impact 400 electric airless sprayers, including documented Impact 400 Skid and Cart configurations. Identified as item 11 in Drive Assembly II, the yoke assembly helps transfer mechanical movement through the piston-drive linkage. Replace a confirmed worn or damaged yoke to restore the intended mechanical connection and support dependable pump operation.
Exact Titan Machines for 0532203A Yoke Assembly
Titan's exploded parts diagrams identify 0532203A Yoke Assembly as item 11 in Drive Assembly II for:
- Titan Impact 340 Airless Sprayer
- Titan Impact 400 Skid (400 S)
- Titan Impact 400 Cart (400 C)
The Impact 400 manual lists the same 0532203A part number for both Skid and Cart models.
Important: This listing does not establish compatibility with every Titan Impact model. Other machines may have different yoke dimensions, drive geometry, or linkage hardware. Confirm the exact part number against your sprayer's service manual.
How the Titan 0532203A Yoke Assembly Supports Pump Operation
Electric piston-type airless sprayers rely on a mechanical drive system to create the repeated piston movement needed for pumping coating materials. The motor and drive mechanism provide the motion, while the connected pump components use that movement to draw in and pressurize fluid.
The Titan 0532203A Yoke Assembly forms part of this mechanical connection. It helps transfer motion through the drive-to-piston linkage and supports the intended interaction between the moving components.
Correct alignment and secure engagement are important because repeated operating cycles place mechanical loads on the linkage. Excessive wear, damaged retaining hardware, or distortion of mating surfaces can interfere with normal movement.
If a yoke becomes damaged, the sprayer may develop abnormal mechanical movement or operating noise. However, similar symptoms may originate from the drive mechanism, piston assembly, fasteners, or other moving components.
Replacing a confirmed defective yoke assembly with the correctly identified Titan 0532203A helps restore the specified linkage configuration. A complete mechanical inspection remains important to avoid repeating the failure.
Yoke Assembly Inspection and Replacement Guidance
Servicing the yoke requires access to moving drive components. Use the correct Titan Impact service instructions and do not operate the equipment with exposed mechanical components.
Step 1: Prepare the sprayer safely. Switch off the equipment, disconnect electrical power, and complete the manufacturer's pressure-relief procedure.
Step 2: Confirm the machine and diagram. Identify the Impact 340 or Impact 400 configuration and locate item 11, part 0532203A, in Drive Assembly II.
Step 3: Inspect the yoke. Look for cracks, deformation, abnormal contact wear, damaged connection points, or excessive looseness.
Step 4: Check adjoining hardware. Inspect the retainer ring, washer, dowel pin, screws, piston assembly, and relevant drive components for damage or unusual wear.
Step 5: Install the specified assembly. Follow Titan's applicable disassembly and reassembly procedure. Confirm correct positioning and use the specified hardware and fastening method.
Step 6: Verify operation. Reassemble all covers and guards, complete the prescribed checks, and confirm normal mechanical movement before returning the sprayer to service.
Related Titan Impact Drive Assembly Components
The following components are separately identified in the applicable Drive Assembly II parts diagrams and may warrant inspection during mechanical linkage service.
These related components are not automatically included with the Titan 0532203A Yoke Assembly. Confirm the actual package contents and replace additional parts only when necessary.
Buy Titan 0532203A Yoke Assembly
Order the Titan 0532203A Yoke Assembly for your compatible Impact 340 or Impact 400 airless sprayer. Replace a confirmed damaged linkage component with the correct part number and support reliable mechanical pump operation through proper equipment maintenance.
Shop Titan 0532203A Yoke AssemblyFrequently Asked Questions
Find exact fitment, mechanical linkage information, and service guidance for Titan 0532203A.
Which Titan sprayers use 0532203A Yoke Assembly?
Titan Impact 340, Impact 400 Skid, and Impact 400 Cart are manufacturer-documented applications. Confirm your machine's drive assembly before ordering.
Does Titan 0532203A fit the Impact 340?
Yes. Titan's Impact 340 parts manual identifies 0532203A as the Yoke Assembly, item 11 in Drive Assembly II.
Does Titan 0532203A fit both Impact 400 Skid and Cart?
Yes. The Impact 400 service manual lists part 0532203A for both 400 S and 400 C configurations.
What does the Titan 0532203A Yoke Assembly do?
It provides a mechanical connection within the drive-to-piston linkage, helping transfer the reciprocating movement needed for pump operation.
Where is the yoke assembly located?
It is identified as item 11 in Drive Assembly II of the applicable Titan Impact 340 and Impact 400 exploded parts diagrams.
What indicates that a yoke assembly may be damaged?
Possible indicators include cracks, deformation, excessive play, abnormal linkage wear, binding, or unusual mechanical noise. Inspection is necessary to confirm the cause.
Is the yoke assembly the same as the piston assembly?
No. Titan 0532203A is the Yoke Assembly, while Titan 0532204A is a separately listed Piston Assembly. The components perform different functions.
Should I inspect the retaining hardware when replacing the yoke?
Yes. Inspect associated retaining rings, washers, pins, screws, and adjoining mechanical surfaces for damage or abnormal wear.
Does Titan 0532203A fit every Titan Impact sprayer?
No. Confirmed applications here are the Impact 340 and Impact 400. Other Titan Impact models may use different drive and linkage components.
Where can I buy Titan 0532203A Yoke Assembly?
Purchase the Titan 0532203A Yoke Assembly from AllTitanParts after confirming your machine model and assembly configuration.
