Quart Cup Assembly Parts

Quart Cup Assembly Parts

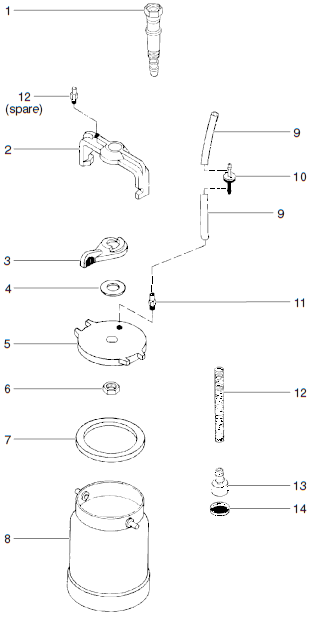

The Quart Cup Assembly is an essential component used in professional spray systems to store and deliver coating material safely and efficiently to the spray gun. Designed for durability and steady material flow, the quart cup ensures reliable performance during fine-finish, woodworking, industrial, and coating applications. The Quart Cup Assembly Parts List includes genuine OEM replacement components such as gaskets, tubes, check valves, screens, nuts, and fittings that help maintain proper sealing, suction, filtration, and material delivery.

These components are manufactured to match original factory specifications, ensuring compatibility, long service life, and consistent spraying performance while minimizing leaks, clogging, and downtime.

Key Features

• Genuine OEM replacement parts designed specifically for Quart Cup Assembly systems
• Supports proper material sealing, suction, and smooth paint or coating flow
• Durable construction for professional workshop and field-use environments
• Easy-service components for quick maintenance and reduced downtime
• Includes critical parts such as cup gasket, flex tube, screen, check valve, and fittings
• Ensures consistent coating delivery and reliable spray system performance
• Designed to extend equipment life and maintain finish quality

Applications

• Wood finishing, furniture and cabinetry coating
• Fine-finish and detailing spray applications
• Industrial and commercial finishing environments
• Automotive and refinishing shops
• General-purpose coating and painting systems

FAQs

1. What is included in the Quart Cup Assembly Parts List?

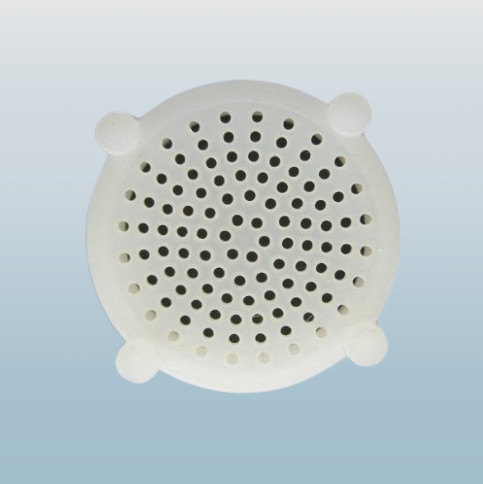

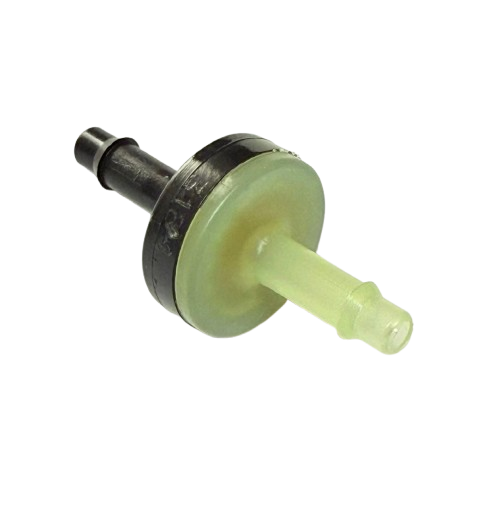

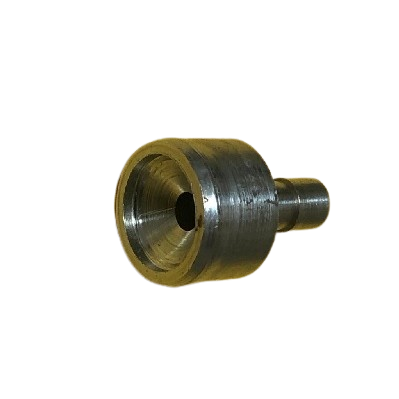

The list includes replacement parts such as the cup gasket, flex tube, screen, check valve, barb weight, screen, nuts, and related hardware needed to maintain the quart cup assembly.

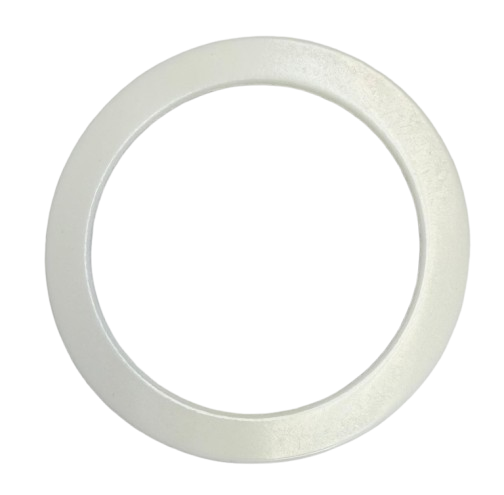

2. Why is the cup gasket important in the assembly?

The cup gasket ensures a proper seal between the cup and lid, preventing air leaks and maintaining smooth material flow during spraying.

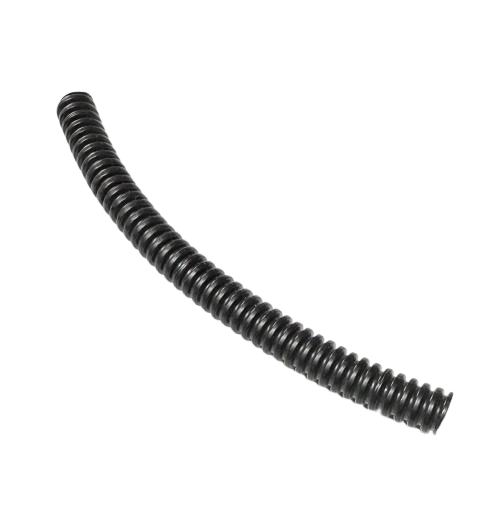

3. When should I replace the flex tube or suction components?

They should be replaced if you notice cracking, clogging, restricted flow, or inconsistent material suction during operation.

4. Are these parts compatible with all quart cup systems?

These are genuine OEM parts designed to fit specific compatible models. Matching part numbers is recommended to ensure proper fit.

5. Can I install Quart Cup Assembly parts myself?

Yes, most parts are user-serviceable with basic tools, but professional servicing is recommended if you’re unsure about installation.
