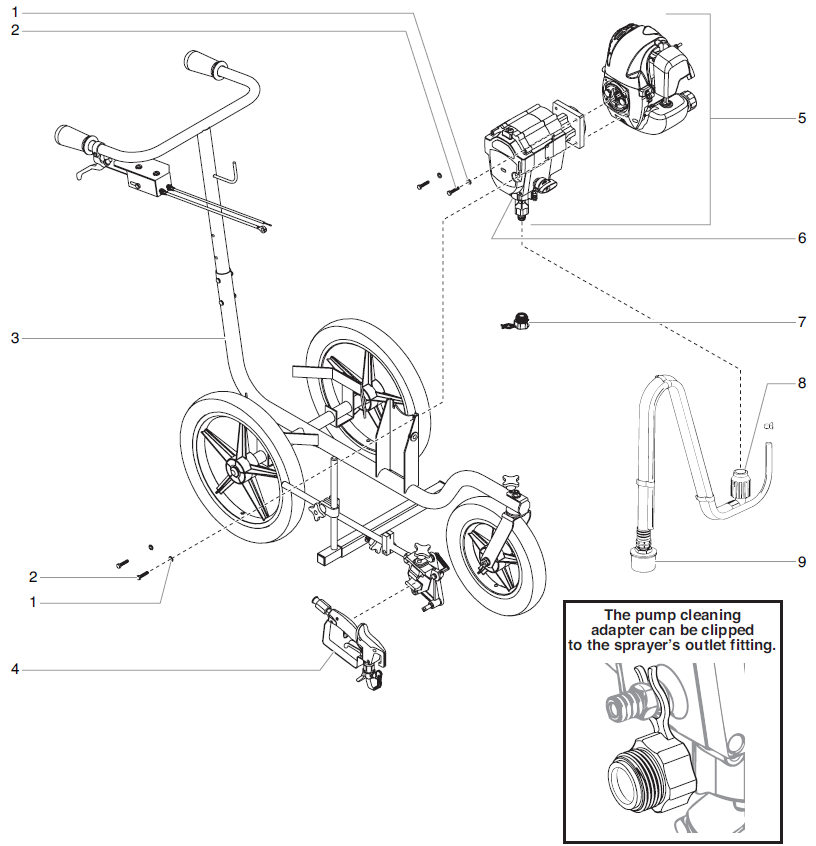

PowrLiner 800 Main Assembly

PowrLiner 800 Main Assembly Parts Assembling the Core Components Correctly

The PowrLiner 800 Main Assembly is the heart of the Titan PowrLiner 800 line striping machine, bringing together the key components that make reliable, high-quality striping possible. Designed for contractors and municipalities who need consistent results day after day, this assembly supports the machine’s core spraying functions while standing up to tough jobsite conditions.

This main assembly works in conjunction with critical components such as the 759-107 hexagonal screw, which secures structural and functional parts, the 316-505 50’ spray hose for extended reach and smooth paint flow, and the 759-369 gun assembly, which delivers precise control over spray output and line quality. Together, these parts help ensure steady pressure, dependable operation, and clean, professional lines on parking lots, roadways, and athletic surfaces.

Whether you’re servicing an existing unit or rebuilding a PowrLiner 800 to restore peak performance, the main assembly provides a solid foundation for dependable striping and reduced downtime.

FAQs

1. What does the PowrLiner 800 main assembly include?

The main assembly is the central structure of the PowrLiner 800 that supports the spray system, hose connections, and gun components. It ties together essential parts needed for consistent striping performance.

2. What is the purpose of the 759-107 hexagonal screw?

The 759-107 hexagonal screw is used to secure key components within the main assembly. Proper fastening helps reduce vibration and keeps the machine stable during operation.

3. How does the 316-505 50’ spray hose help during striping?

The 316-505 50-foot spray hose gives operators extra reach and flexibility, allowing smoother movement around the jobsite without constantly repositioning the machine.

4. What role does the 759-369 gun assembly play?

The 759-369 gun assembly controls paint flow and spray pattern, directly affecting line sharpness and consistency. A well-maintained gun assembly is essential for clean, professional stripping results.

5. When should I service or replace parts in the main assembly?

Parts should be inspected regularly and serviced or replaced if you notice leaks, inconsistent spray patterns, loose hardware, or reduced performance. Routine maintenance helps extend the life of the PowrLiner 800 and keeps lines looking sharp.
