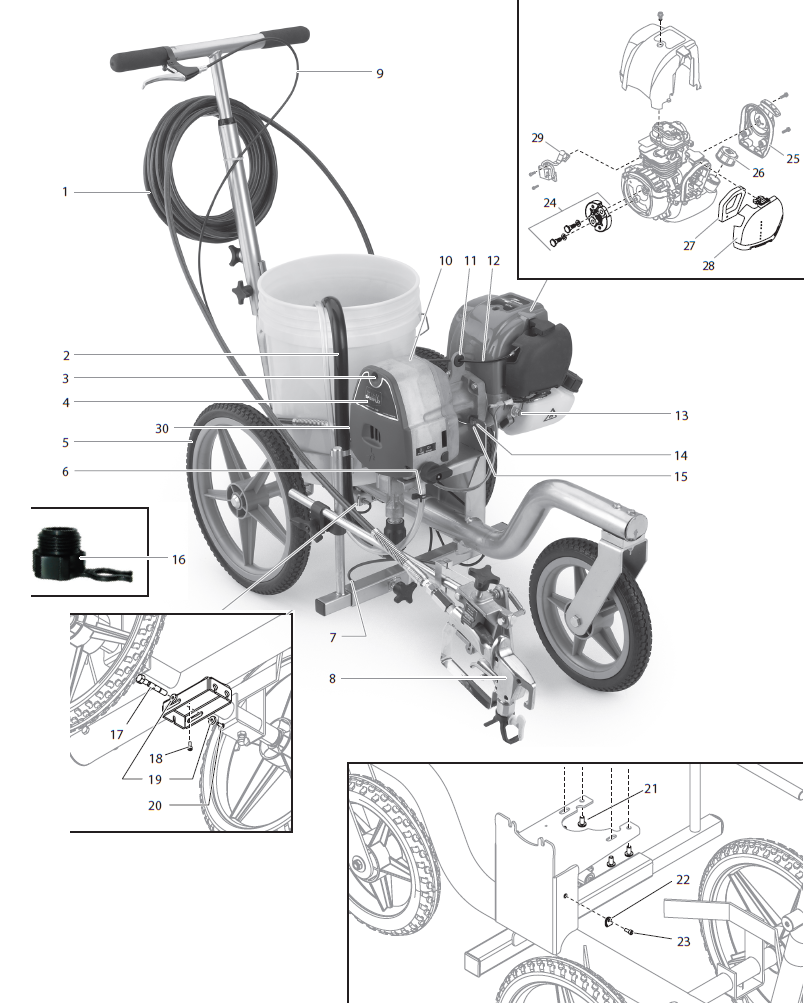

PowrLiner 550 Main Assembly

The PowrLiner 550 Main Assembly is the core structural and functional component of the Titan PowrLiner 550 Airless High-Pressure Line Striping Machine, a compact, engine-driven airless unit engineered for precision striping on pavement, athletic fields, parking lots, and other surface marking tasks. Designed for portability and professional performance, the main assembly integrates essential subcomponents required to convert raw materials into crisp, consistent lines.

This assembly forms the backbone of the PowrLiner 550, incorporating key parts such as the Titan 0293172 Cable Assembly, Lever-Box, Titan/Speeflo 0293932 Suction Set Assembly, Titan 0293930 Shutoff Switch, and Titan 0293595 Cable Pin. These components work together with the engine, pump, controls, suction system, and high-pressure fluid path to ensure smooth, reliable operation under demanding striping workloads.

FAQs

1. What does the PowrLiner 550 Main Assembly include?

The main assembly encompasses the primary structural and functional components of the PowrLiner 550 striping machine. Key elements include the suction set assembly (0293932) that draws paint from the container, the cable assembly for the lever-box (0293172), the shutoff switch (0293930), and the cable pin (0293595) that secures linkage cables within the drivetrain and control system.

2. What is the function of the Titan/Speeflo 0293932 Suction Set Assembly in the PowrLiner 550?

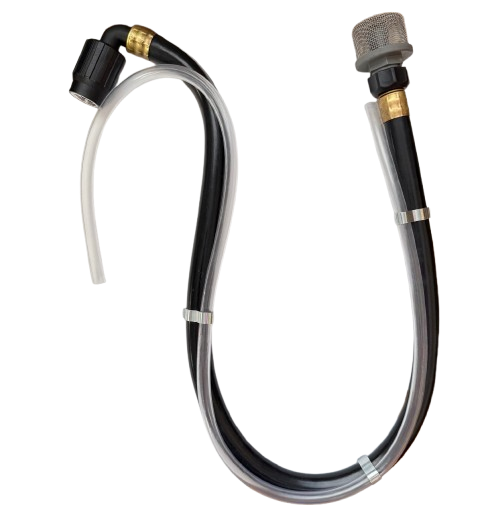

The 0293932 suction set assembly ensures paint is efficiently drawn from the paint container to the pump, facilitating continuous, even paint supply during striping. A properly functioning suction set helps prevent interruptions and maintains a consistent spray pattern.

3. How does the Titan 0293172 Cable Assembly for the Lever-Box affect operation?

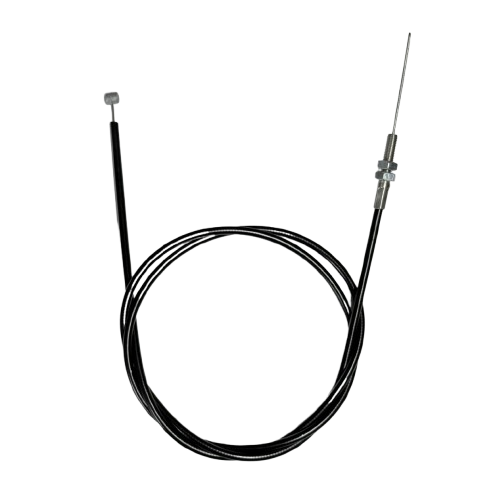

The 0293172 cable assembly links the lever box (operator control) to the internal mechanisms that control spray and engine functions. It allows the operator to engage or disengage spray operations and supports control input fidelity for clean, accurate striping.

4. What role does the Titan 0293930 Switch play in the PowrLiner 550?

The 0293930 switch is the primary shutoff (engine kill) switch for the PowrLiner 550. It enables quick and safe stopping of the engine and sprayer system during operation or in an emergency, enhancing operator safety and control.

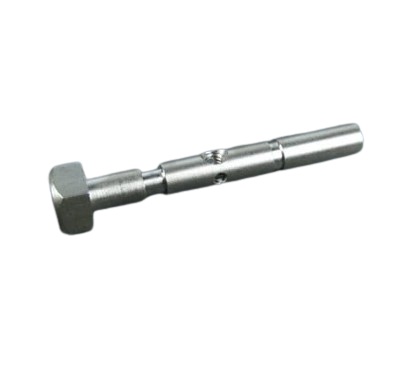

5. Why is the Titan 0293595 Cable Pin important, and when should it be replaced?

The 0293595 cable pin is a hardware component used to secure linkage cables, such as throttle or spray control cables, within the PowrLiner assembly. It should be inspected during routine maintenance and replaced if worn, bent, or damaged, as a compromised pin can affect control cable stability and overall machine responsiveness.
