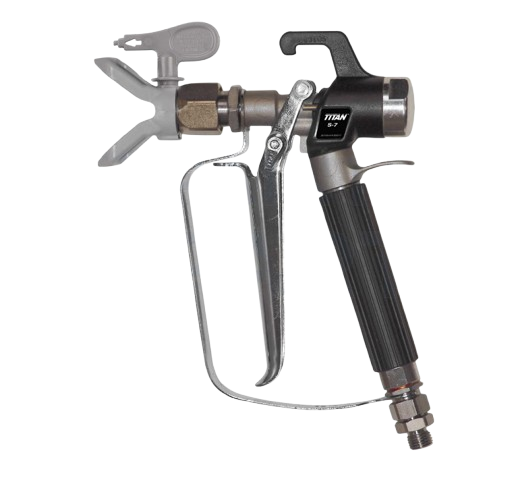

Shop S-7 Airless Gun
Shop the S-7 Airless Gun, a professional-grade spray gun designed for higher output and more demanding professional applications. The S-7 features stainless steel fluid passages, an in-handle filter, a tungsten carbide ball valve and seat to ensure long life and durability. With an easy four-finger trigger pull and a swivel design that reduces hose kinks, the S-7 delivers precise control over material delivery for quality finishes. The S-7 is available in two swivel sizes and includes a 517 TR1 high pressure, heavy-duty reversible tip and guard. Pressure rated at 7700 PSI (53 MPa), this gun is built for contractors working with extreme pressures and corrosive coatings. It is a direct replacement component for hydrax 4540 - 7230 equipment.
Choose the Correct S-7 Airless Gun
Selecting an S-7 Airless Gun requires matching the gun to your specific equipment and application needs. The S-7 is part of Titan's S-Series Airless Guns, designed to deliver dependable performance, precise material control, and long-term durability for professional painting and coating applications. The S-7 Airless Gun is designed for higher output and more demanding professional applications compared to the S-3 model.
Key selection factors include: equipment compatibility (S-7 gun 550-270 is designed specifically for hydrax 4540 - 7230 equipment), pressure requirements (rated at 7700 PSI / 53 MPa for extreme pressure applications), swivel size (available in two swivel sizes), and coating type (suitable for water-based and solvent-based coatings including corrosive materials). It is a direct replacement component when the original gun becomes worn, leaks, or fails to perform.
S-7 Airless Gun Specifications
The S-7 Airless Gun is a professional-grade gun engineered for extreme pressure and durability. The chart below summarizes key specifications. Confirm the current orderable part number when selecting equipment.
| Specification | Value |
|---|---|
| Maximum Operating Pressure | 7700 PSI (53 MPa) |
| Material Inlet Thread Size | 1/4" NPSM or 3/8" NPSM |
| Diffuser Thread Size | 7/8 - 14 UNF-2A |
| Wetted Parts Material | High-grade stainless steel |
| Weight | 1.3 lbs (599 g) |
| Operating Temperature Range | 40°F to 104°F (5°C to 40°C) |
| Included Tip | 517 TR1 High Pressure Reversible Tip |
| Swivel Sizes | Available in two sizes |
Core S-7 Airless Gun Features
S-7 Airless Guns are engineered with features that improve finish quality, reduce operator fatigue, and extend service life. Understanding these components helps you select the right gun and maintain it properly.
Constructed with stainless steel fluid passages to withstand demanding professional applications and corrosive coatings.
Features an integrated filter located within the handle assembly for reliable operation and easy maintenance.
Tungsten carbide ball valve and seat ensure long life and durability in demanding applications.
Easy four-finger trigger pull reduces operator fatigue during extended spraying sessions for improved comfort.
Swivel reduces hose kinks and hose torque, making the gun easier to handle and maneuver during operation.
Ergonomic trigger with safety lock to prevent accidental discharge when the gun is not in use.
S-7 Airless Gun Applications
S-7 Airless Guns serve diverse applications across professional, industrial, and high-pressure coating projects. Match your gun configuration to the equipment and coating type requirements.
Designed for professional airless coating applications and high-pressure industrial painting projects requiring durable stainless steel equipment.
Stainless steel construction and tungsten carbide components handle corrosive coatings and extreme pressure applications with reliability.
Direct replacement component for hydrax 4540 - 7230 equipment when the original gun becomes worn, leaks, or fails to perform.
The S-7 gun is suitable for both water-based and solvent-based coatings. It is compatible with standard airless tips and tip guards, allowing for various spray patterns and tip sizes. Regular cleaning and maintenance of the gun, including flushing after each use, is essential for optimal performance and longevity.
Maintenance and Service Considerations
Regular maintenance extends gun life and ensures consistent spray quality. Recognizing early warning signs prevents costly downtime.
Flush the gun thoroughly after each use. Clean the filter regularly and lubricate as recommended by the manufacturer.
Signs include fluid leaks, erratic spray pattern, difficult triggering, or visible damage. Inspect and consider replacing the gun when these occur.
When replacing the spray gun, inspect the spray tip, gun filter/screen, and tip guard to ensure proper spray performance.
Common causes of part failures include clogged filters restricting material flow, lack of proper lubrication causing friction damage, and using non-OEM parts with poor durability.
OEM vs Aftermarket S-7 Parts
| Consideration | Genuine OEM Parts | Aftermarket Parts |
|---|---|---|
| Durability | Built for professional high-pressure spraying | Short lifespan, especially in extreme pressure systems |
| Fit | Perfect fit for hydrax 4540 - 7230 equipment | Poor fit and reduced spray quality |
| Warranty | Keeps your warranty valid | No warranty or reliability |
| Risk | Designed for your specific equipment | Can damage critical spray components |
| Long-term value | Provides long-term reliability and spray consistency | Often leads to repeated failures and downtime |
Although OEM parts cost more upfront, they provide long-term value and reliability. Invest once in quality parts and keep your S-7 Airless Gun running efficiently for years to come.
How to Select the Correct S-7 Airless Gun
- Identify your equipment model (S-7 gun 550-270 is designed for hydrax 4540 - 7230 equipment).
- Determine your pressure requirements (rated at 7700 PSI / 53 MPa).
- Select the appropriate swivel size for your setup.
- Verify the current manufacturer ordering number for your chosen model.
- Check documented specifications for tip size and guard compatibility.
- Confirm whether a replacement gun or repair kit better suits your service need.
- Order only after the model number, application match, and specification requirements are confirmed.
Physical similarity, brand name, or matching component names alone do not prove complete equipment compatibility. Always verify specifications and application suitability before ordering.
Compare Related Titan Parts & Equipment
S-7 Airless Guns are one part of Titan's broader professional spraying system. Compare the components and equipment required for your application before ordering.
The safest way to select an S-7 Airless Gun is equipment compatibility + pressure requirements + swivel size + coating type + tip compatibility + specification confirmation. Choosing "S-7 gun" alone is not enough: different equipment models require specific gun configurations for proper fit and performance.
FAQ Section
Use these answers to narrow the correct S-7 Airless Gun before ordering.
