The CapSpray 105 Turbine Assembly Parts are designed to maintain powerful airflow performance, consistent atomization, and reliable HVLP spray operation for professional finishing applications. These components support the core turbine system responsible for generating the air pressure needed to spray coatings smoothly and efficiently. The assembly includes important replacement parts such as turbine motors, motor brushes, seals, spacers, cooling components, and mounting hardware that help keep the sprayer operating at peak performance.

A properly functioning turbine assembly is essential for maintaining steady airflow and achieving a fine, even finish on cabinetry, furniture, trim, and commercial coating projects. Worn or damaged turbine components can reduce spray pressure, create inconsistent atomization, and lead to overheating during long spraying sessions. Routine inspection and timely replacement of critical parts help extend equipment life and minimize costly downtime.

Key Functions of the Turbine Assembly

The turbine assembly is the heart of the HVLP system, responsible for generating consistent airflow that directly affects spray quality. Inside the CapSpray 105 system, every component works together to maintain pressure stability, cooling efficiency, and balanced motor operation. When any part becomes worn, the entire spraying performance can be affected.

Components like turbine motors and motor brushes handle continuous load, while seals and spacers ensure airtight operation and structural alignment. Cooling elements prevent overheating during extended use, especially in professional environments where long spray cycles are common.

Common Replacement Parts in CapSpray 105 Turbine Assembly

Turbine Motor: Generates the primary airflow for HVLP spraying
Motor Brushes: Conduct electrical current and wear down over time
Seals & Spacers: Maintain internal alignment and prevent air leakage
Cooling Components: Prevent overheating during extended use
Mounting Hardware: Ensures stability and reduces vibration

Frequently Asked Questions

Excessive sparking usually indicates worn commutator surfaces, incorrect brush seating, or improper installation. Damaged commutators can also prevent proper brush performance.

Overheating is commonly caused by blocked airflow, dirty filters, or worn motor brushes. Restricted ventilation forces the turbine to work harder than normal.

Inconsistent pressure is often due to misalignment in the turbine assembly, improper sealing, or airflow imbalance inside the housing.

A poorly sealed housing can cause air leakage, reduced pressure, unstable atomization, and increased motor strain.

Fast wear is usually caused by dirty commutators, heavy usage cycles, or restricted airflow forcing the motor under constant load.

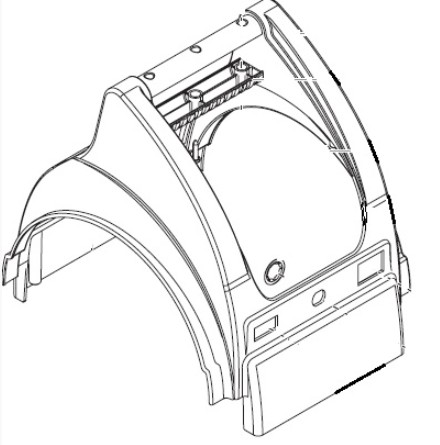

CapSpray 105 Upper Housing Assembly
