The CapSpray owner's manuals for the 95, 105 and 115 say to have the motor brushes checked for wear by an authorized service center every 400 hours. The brush kit is 0277243 and it appears in the turbine diagram of the 75, 95, 105, 115 and the X models. Titan's wording is a check, not a replacement.

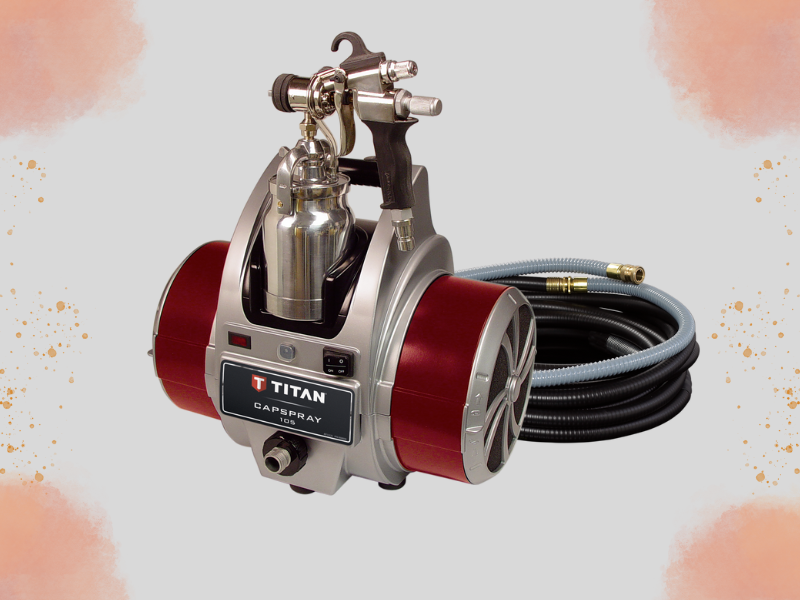

What the brush kit is and where it sits
The CapSpray turbine is the one part of the system that cannot be treated like a gun or a hose, and its motor brushes are the one item Titan's manuals single out for scheduled attention. The site lists a 0277243 Motor Brush Kit in the Turbine Assembly diagram of the CapSpray 75, 95, 105, 115 and the X 95, X 105 and X 115. It is one kit number across all of them, so you do not need to match it to the stage count.
The CapSpray 55 is the exception. Its turbine diagram lists a different kit, 0524159 Kit, Brush, Turbine, and that number belongs to the 55 diagram only. Do not order it for a 75, 95, 105 or 115.
The 400-hour check
The owner's manuals for the 95, 105 and 115 say to have the motor brushes checked for wear by an authorized service center every 400 hours. Read that wording carefully. It says checked. It does not say replaced at 400 hours, and Titan does not publish how long a set of brushes lasts, so we cannot tell you a number of hours or a number of jobs. For the 75, open the 75 owner's manual from our manuals page and read its service section.
The same manuals tie worn brushes to one symptom: a turbine that will not run. The other two causes they list for that symptom are no power at the outlet and a tripped circuit breaker, so run through those first. The manual's advice for a breaker that keeps tripping is to reset it and, if it persists, have the unit inspected.
What else is in the turbine assembly diagram
The turbine diagram for each model lists the same family of small parts around the motor. These are the ones that repeat across models:
- 0524687 Motor Shroud Seal, on every classic and X turbine diagram.
- 0524590 Spacer, Turbine, Hex and 0524591 Spacer, Motor, Hex, on every model's diagram.
- 0524686 Turbine Can Seal on the 75, 95 and X 95, and 0277469 Turbine Can Seal on the 105, 115 and the X 105 and X 115.
- 0524998 Can cover, listed on the 75, 105, 115 and the X 105 and X 115 diagrams.
- 0529314 Compr Spring, on the 75, 95 and X 95 diagrams only.
These are the small parts around the motor. We do not describe how to take it apart, because Titan's manuals treat the turbine as a service-center job. If a diagram suggests one of these small parts is damaged, call before you buy it.
Which turbine assembly is yours
Complete turbine assembly listed on each model's diagram
| Model | Turbine assembly | Diagram page |
|---|---|---|
| CapSpray 75 | 0524288A, 3-Stage turbine Assembly | 75 Turbine Assembly |
| CapSpray 95 and X 95 | 0524289A, 4-Stage Turbine Assembly, 120V | 95 Turbine Assembly and X 95 |
| CapSpray 105 and X 105 | 0524280A, Turbine Assembly | 105 Turbine Assembly and X 105 |
| CapSpray 115 | 0524290A, Turbine Assembly | 115 Turbine Assembly |
| CapSpray X 115 | 2470142A, 6-Stage Turbine Assembly 120V | X 115 Turbine Assembly |
The site lists these as complete assemblies. We do not claim parts are interchangeable between classic and X models; open the page for your own model.
When to stop and call
If the turbine will not run after you have checked the outlet and the breaker, the manuals point at worn brushes, and the brush check is a service-center task under the 400-hour instruction. Phone (713) 931-0006 with the model and serial number and our parts team can help you identify the brush kit or the turbine assembly on the diagram. We do not publish motor repair steps, because Titan's manuals do not.
Keeping the load off the motor
- Clean the filters. The manuals warn that clogged filters cause excessive heat and can damage the turbine, and the red light comes on when air flow drops. Our pre-filter kit page has the filter parts.
- Use a heavy enough extension cord. The manuals recommend 12 gauge and say an undersized cord loses power and overheats. Check your model's manual for the full cord rule.
- Plug into a grounded 3-slot outlet and keep the turbine as far from the spray area as possible.
- Use the air hose supplied with your sprayer, and never connect the short whip hose directly to the turbine, because the manuals say it will be damaged.
Turbine parts named in this guide:
The Short Version
Titan's manuals call for a brush wear check every 400 hours by an authorized service center, not a replacement on a schedule. The brush kit is 0277243 on every model except the 55. For the turbine itself, pick the diagram page for your model and match the assembly number before you call or order.
