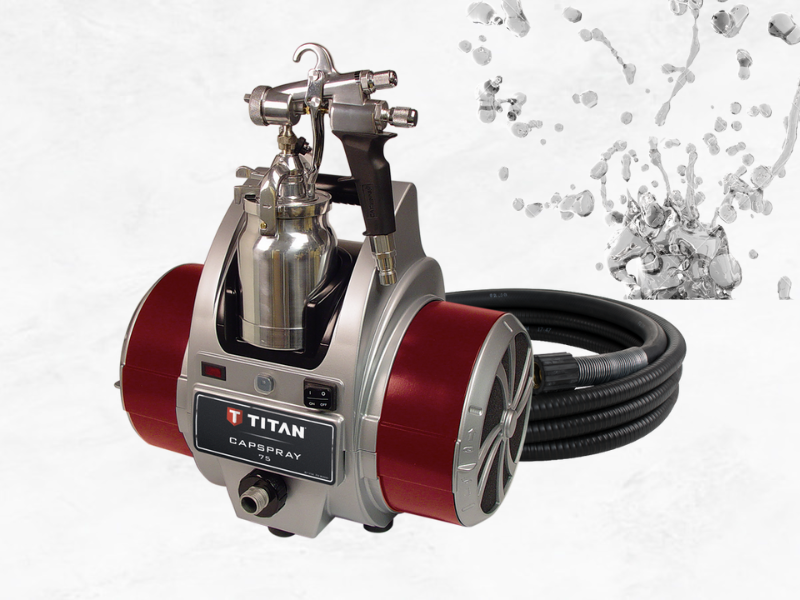

Each CapSpray model's Turbine Assembly diagram lists its own turbine: 0524288A on the 75, 0524289A on the 95 and X 95, 0524280A on the 105 and X 105, 0524290A on the 115 and 2470142A on the X 115. Match your model to its page before you order, and confirm by phone if the model is a 230V unit.
Why identify the turbine assembly first
The turbine is what makes the CapSpray's air, and its stage count is the main thing that separates the models: the 75 has a 3-stage turbine, the 95 and X 95 a 4-stage, the 105 and X 105 a 5-stage, and the 115 and X 115 a 6-stage. Because every model has its own Turbine Assembly diagram, the safe way to find the number is to start from your model, not from the stage count you remember or from a part number a friend used on a different CapSpray.
The site lists no turbine page that spans several models. The 95 and X 95 pages happen to show the same number, and so do the 105 and X 105 pages, but each page is its own listing and each is the one to order from.
Turbine assembly part numbers
CapSpray turbine assembly by model
| Model | Stages (Titan) | Assembly number | Name on our diagram | Diagram page |
|---|---|---|---|---|
| CapSpray 75 | 3-stage | 0524288A | 3-Stage turbine Assembly | 75 Turbine Assembly |
| CapSpray 95 | 4-stage | 0524289A | 4-Stage Turbine Assembly, 120V | 95 Turbine Assembly |
| CapSpray X 95 | 4-stage | 0524289A | 4-Stage Turbine Assembly, 120V | X 95 Turbine Assembly |
| CapSpray 105 | 5-stage | 0524280A | Turbine Assembly | 105 Turbine Assembly |
| CapSpray X 105 | 5-stage | 0524280A | Turbine Assembly | X 105 Turbine Assembly |
| CapSpray 115 | 6-stage | 0524290A | Turbine Assembly | 115 Turbine Assembly |
| CapSpray X 115 | 6-stage | 2470142A | 6-Stage Turbine Assembly 120V | X 115 Turbine Assembly |
The 105 and 115 entries do not state a stage count in their names; the stage count in the second column is Titan's, for the sprayer. Part numbers match what each diagram lists, and no interchange between models is claimed.
The five turbine assembly numbers
A 230V sprayer needs a second look. Titan sells a 230V version of the 105 under part number 276047, but the site's 105 turbine page lists 0524280A with no voltage in its name, while the 95 and X 115 entries say 120V. If your unit is the 230V 105, call (713) 931-0006 with the model and serial number before you order a turbine.
What else is on every turbine diagram
Alongside the assembly, each of the seven turbine pages lists the same small group of hardware and seals. The numbers repeat, but the callout numbers do not, so read the callout on your own page.
- 9810108 nut and 9821503 lock washer, at callouts 1 and 2 on every page.
- 0524590 turbine hex spacer and 0524591 motor hex spacer.
- 0524687 motor shroud seal, callout 9 on the 105, 115 and X 115 pages and callout 10 on the 75, 95, X 95 and X 105 pages.
- 0277243 motor brush kit, listed on all seven pages.
Seals and spring that differ by model
The turbine pages split into two groups once you look at the can seal, the spring and the can cover. The 75, 95 and X 95 pages use one can seal and a compression spring; the 105, 115, X 105 and X 115 pages use another can seal instead of the spring.
Can seal, spring and can cover on each turbine page
| Page | Turbine can seal | Compression spring | Can cover |
|---|---|---|---|
| 75 | 0524686 | 0529314 | 0524998 |
| 95 and X 95 | 0524686 | 0529314 | Not listed |
| 105 and X 105 | 0277469 | Not listed | 0524998 |
| 115 and X 115 | 0277469 | Not listed | 0524998 |
Check the page for your model. Both can seals are on the site: 0524686 and 0277469, with 0529314 and 0524998 as the spring and cover.
Before you order a turbine
A turbine that will not run or will not push air is not always a turbine fault. Titan's manuals list the first causes for a turbine that will not run as no power, a tripped circuit breaker and worn brushes, and for restricted or no air as a gun air knob turned off or clogged filters. A red warning light on the front panel comes on when air flow drops, and it does not shut the turbine down.
The brushes are the one wear item inside the turbine that the manuals name: the 95, 105 and 115 manuals ask for a check by an authorized service center every 400 hours. The brush kit 0277243 is on every turbine page, but the turbine is not a home-repair item beyond what your manual shows, and this page does not describe replacing one.
Get fitment help
Have the model and serial number ready
These are what the parts team asks for. Note whether the unit is a classic CapSpray or an X model, and whether it is 120V or the 230V 105.
Open that model's turbine page
Use the table above, find the turbine assembly at its callout and compare the name with what the page says.
Check the manual for symptoms first
Our manuals page has the owner's manual for your model, and its troubleshooting table should rule out power, breaker, filters and the gun air knob before you buy a turbine.
Call if the page does not settle it
Phone (713) 931-0006 and we will confirm the turbine number against your model and serial number.
The CapSpray turbine assemblies and related turbine-page parts:
The Short Version
Seven turbine pages, five assembly numbers: 0524288A for the 75, 0524289A for the 95 and X 95, 0524280A for the 105 and X 105, 0524290A for the 115 and 2470142A for the X 115. Read the number off your own model's page, and ask about any 230V unit.
Not sure which turbine your CapSpray uses?
Call (713) 931-0006 with your model and serial number and our parts team will confirm the turbine number before you order.
