The simplest physical check is the lighting coil: Titan lists a 100 watt coil charging system as an Elite feature, and dealers list the Elite with electric start while the Pro is pull start. On the diagrams, many parts are tagged for both versions, while the turf-tire wheel, positive battery cable and two hydraulic hoses are labeled Elite. If a part has no tag, call us.
Why the diagram pages do not split by version

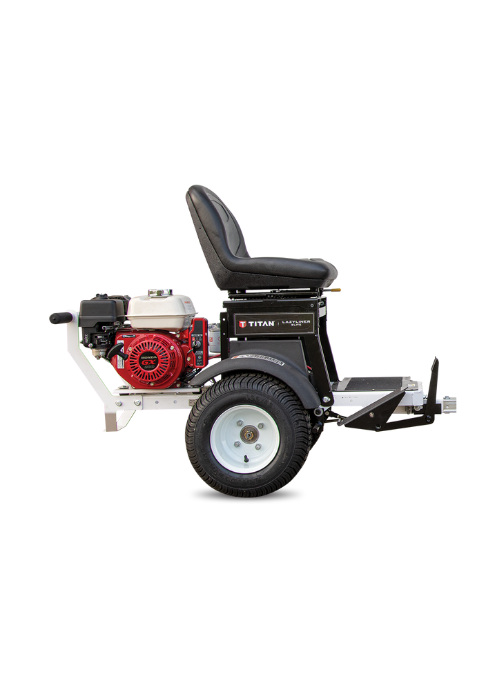

Our catalog has one set of six pages for both LazyLiner drivers, and every page is titled "LazyLiner Pro Parts / Control Identification." The Elite is not on its own set of pages. Its parts sit among the Pro's, and the only way to tell them apart is the wording in each part name. That wording is worth reading closely before you add anything to your cart. Start from the LazyLiner parts page and open the six pages from there.
Parts tagged for both versions
These parts carry "ll elite/pro" or "pro/elite" in the name, which means the diagram lists them for both versions:
- 0290675 Seat, ll elite/pro, and 0290653 Frame, seat ll elite/pro (page 1)
- 0290650 Frame, main,pro/elite (page 1)
- 0290647 Coupler, ll elite/pro (page 1)
- 0290659 Coupler, shaft, ll elite/pro (page 2)
- 0290665 Mechanism, rtn, ll elite/pro (page 4)
- 0290674 Fitting, tee, ll elite/pro (page 6)
The brake lever, 0290648, is displayed as plain "Brake Lever" on the diagram, but its catalog address carries the same ll-elite-pro tag. A shared tag is what the site says. It is not a claim that every part in a similar-looking assembly swaps freely, so treat it as a lead and confirm the exact part by phone if it matters.
Parts labeled Elite
Four parts name the Elite and nothing else. If you own a Pro, ask before ordering any of these:
- 0290676 Wheel assy, turf tire,ll elite (page 1)
- 0290681 Cable,battery,positive,llelite (page 6)
- 0290655 Hose,hydraulic(long),ll elite (page 2)
- 0290661 Hose,hydraulic(short),ll elite (page 2)
The battery cable fits with what Titan says about the Elite: it adds a 100 watt coil charging system for lights, beacons or other powered accessories. The page 6 diagram is where that cable and the engine stop wire harness sit.
Pro-labeled parts and the engine question
One part names the Pro: 2423493, the LazyLiner Pro Bumper - Honda, on page 1 at callout 5. Beyond that, the page titles carry the Pro name and little else does.
The engine is the one place the diagram does not help. Page 1 shows two Honda engine parts at callout 4, 980-331A and 0537547A, and it does not say which belongs to which version. Dealer listings give the Pro a Honda GX160 with pull start. Sources disagree on the make of the Elite's engine, so we will not name one here. For any engine part, give us the engine's model and serial numbers when you call.
Features that separate the two
- Lighting coil. Titan lists a 100 watt coil charging system as an Elite feature. If your machine has lights or a beacon running from the driver, that points to an Elite.
- Starting. Dealers list the Pro as pull start and the Elite as electric start. The positive battery cable (0290681) is labeled Elite on the diagram.
- Item numbers. The Pro is 0290041H and the Elite is 0290040H. If your order record or paperwork shows one of them, that settles it. We do not know what the suffix letter means, so do not read anything into it.
Both versions share the seat features Titan lists, and both are listed with the same speed range, so those features will not tell you which you own.
When to call
Call (713) 931-0006 if your part has no version tag, if you cannot tell what you own, or if the part you need is in the engine, wiring or hydraulic hoses. Have the serial number and a clear photo of the part or the area around it. A photo of the engine and any badge on it settles most questions faster than a description.
Parts and units mentioned in this guide:
The Short Version
Read the name on the part. "ll elite/pro" means the diagram lists it for both; "ll elite" means Elite; and the bumper names the Pro. Anything without a tag, and every engine part, should be checked with us before you order.
Not sure which version you own?
Call (713) 931-0006 with the serial number and a photo, and our parts team will confirm the version before you order.
