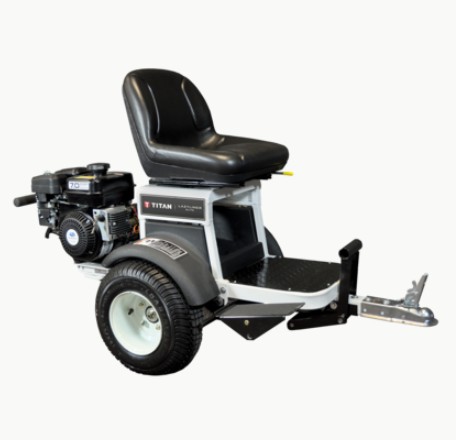

Titan 0290040H LazyLiner Elite
$12,366.53
$15,496.90
Save 20%
Available to Order
Titan Professional Ride-On Striping Driver
Titan 0290040H LazyLiner Elite is a powered ride-on driver for compatible PowrLiner stripers, featuring a Honda GX200 engine, electric or pull starting, 0–12 MPH forward travel, 0–7 MPH reverse and adjustable operator seating.
Brand: Titan Part Number: 0290040H Engine: Honda GX200 Type: Powered Ride-On Driver
Built for large striping projects, LazyLiner Elite reduces walking while providing powered forward and reverse travel. Heavy-duty 16 x 6.5-inch pneumatic tires, adjustable seating, height-adjustable pedals and a safety weight sensor support productive all-day operation.
Quantity
Genuine OEM Part
Fast Shipping
Easy Returns
Engine: Honda GX200 Starting: Electric / Pull Forward: 0–12 MPH Reverse: 0–7 MPH Tires: 16" x 6.5" Pneumatic
| Detail | Technical / Commercial Information |
|---|---|
| Product Overview | Titan LazyLiner Elite is a self-propelled ride-on driver designed to tow compatible professional line-striping equipment. Current Titan specifications identify a Honda GX200 gasoline engine with electric or pull starting, 0–12 MPH forward speed, 0–7 MPH reverse speed, heavy-duty 16 x 6.5-inch pneumatic tires, multi-position seating, adjustable pedals and an engine protection bumper bar. |
| Function | Provides powered ride-on propulsion for a compatible line striper so the operator can sit and drive instead of walking behind the machine. Variable forward and reverse travel gives the operator control over jobsite movement, while the hitch connection allows the LazyLiner to tow the striper through long production runs, turns and repositioning operations. |
| Industrial Applications | Designed for high-production professional striping and marking on large parking lots, roadways, airports, athletic facilities, industrial properties and other expansive marking projects. Titan states that the LazyLiner Series can increase productivity by up to four times compared with walking, while also reducing the physical demand of covering large striping areas on foot. |
| Accurate Compatible Titan Machines | Titan currently specifies LazyLiner Elite compatibility across the PowrLiner 2850–8955 range. Documented applications include PowrLiner 2850, 3500, 4950, 4955, 6950, 6955, 8950 and 8955 configurations, with later Titan literature extending LazyLiner use across additional current PowrLiner platforms. The correct machine-specific hitch is required and is not included with the LazyLiner. |
| Accurate Part Number | 0290040H — Titan LazyLiner Elite powered ride-on driver. This is the Elite configuration with Honda GX200 engine and electric or pull starting. Do not confuse it with Titan 0290041H LazyLiner Pro, which uses the smaller Honda GX160 engine and pull-start configuration. |
| Compatible Parts & Assemblies | Major equipment includes the Honda GX200 engine, drive system, deluxe multi-position seat, height-adjustable foot pedals, operator weight sensor, heavy-duty 16 x 6.5-inch pneumatic tires, charging system and included engine protection bumper bar. A separate hitch is required to connect the LazyLiner to the specific PowrLiner. Titan hitch documentation includes 0290043Z for PowrLiner 2850 and 0290180 for several 3500/4950/4955/6950/6955/8950/8955 configurations. |
| Related Parts Commonly Serviced Together | Inspect the Honda GX200 engine, starting system, drive components, pneumatic tires, wheel hardware, foot controls, seat adjustment hardware, operator weight-sensor system, hitch and connection hardware during routine service. Also inspect the connected PowrLiner's hitch mounting points and steering/tracking condition because proper mechanical connection and alignment are essential for safe, predictable ride-on operation. |
| Common Problems Solved | Reduces the operator fatigue and travel time associated with walking behind a line striper across large jobs. Powered forward and reverse movement makes repositioning faster, while the adjustable seat and pedals accommodate different operators. Heavy-duty pneumatic tires improve mobility over typical pavement-marking surfaces, and the seat-mounted weight sensor provides a safety shut-off function. |
| Use with Coating Systems | LazyLiner Elite is a powered driver and does not pump or contact paint. Coating compatibility, pressure, spray-tip size and gun capacity remain determined by the attached PowrLiner. Because the driver controls travel speed, operators can coordinate movement with the striper's paint output to maintain the desired film build and line quality for the selected pavement-marking coating. |
| OEM & Brand Information | Genuine Titan Tool professional line-striping equipment. Titan identifies 0290040H as the LazyLiner Elite and currently specifies Honda GX200 power, electric or pull starting, 0–12 MPH forward and 0–7 MPH reverse travel. The Elite adds heavy-duty tires, an engine protection bumper bar and charging capability, while the related 0290041H LazyLiner Pro uses Honda GX160 pull-start power and standard-width pneumatic tires. |
| Commercial Benefits | For contractors handling large striping jobs, the LazyLiner Elite converts compatible walk-behind equipment into a powered ride-on production system. Titan promotes productivity gains of up to four times compared with walking. Reduced operator fatigue, speeds up to 12 MPH, reverse capability, adjustable seating and heavy-duty tires can make long parking-lot, roadway and commercial marking projects substantially easier to manage. |
Contractor Selection Insight
Choose the LazyLiner Elite when striping volume makes walking a significant productivity limitation. Compared with the LazyLiner Pro, the Elite combines Honda GX200 power with electric or pull starting, wider 16 x 6.5-inch heavy-duty pneumatic tires, engine protection and charging capability. Remember that the driver does not ship with a universal hitch—select the correct hitch for your exact PowrLiner before ordering.
