C.A. TECH PK-OC14-PC-211 Half-inch Pump C211
C.A. TECHNOLOGIES PORTABLE PEAK AIR-ASSIST AIRLESS SYSTEM

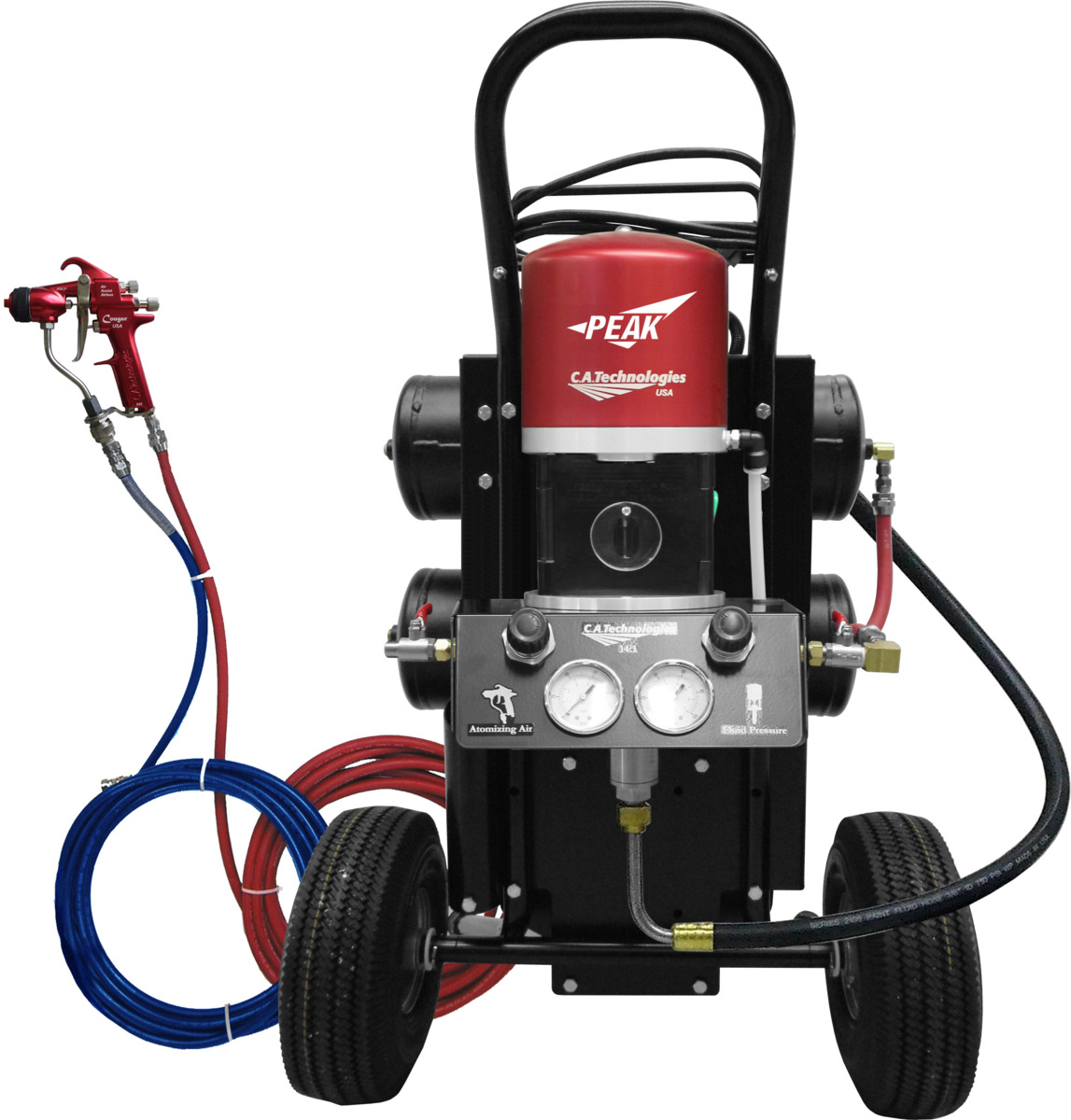

C.A. Technologies PK-OC14-PC-211 Portable PEAK Pump with Cougar 211 combines a 14:1 stainless-steel pump, full-size Cougar AAA gun and self-contained compressor package. Its .011-inch 211 tip provides controlled material delivery with an approximately 4-inch spray pattern for professional fine finishing.
Unlike a basic pump cart that depends on shop air, the PC configuration is a self-contained portable AAA outfit with a 2 HP compressor and twin air tanks. The Cougar 211 configuration uses a .011-inch orifice and approximately 4-inch fan for controlled finishing of narrower components.
| Detail | Technical / Commercial Information |
|---|---|
| Product Overview | PK-OC14-PC-211 is a C.A. Technologies portable PEAK Air Assist Airless finishing outfit equipped with the full-size Cougar gun and 211 tip configuration. The PC package integrates a 14:1 stainless-steel PEAK pump, no-stall air-motor design, 2 HP compressor and onboard air tanks onto a compact portable cart. The PEAK 14:1 platform is rated to a maximum 1,500 PSI fluid pressure. |
| Function | The integrated compressor supplies air for the pneumatic PEAK pump and atomizing air for the Cougar AAA gun, reducing dependence on a separate shop-air installation. High-pressure coating flow through the 211 tip provides primary atomization, while regulated low-pressure air at the Cougar air cap refines the pattern for controlled Air Assist Airless finishing. |
| Industrial Applications | Designed for mobile professional wood, furniture, cabinet, millwork and industrial finishing operations. The 211 tip's narrow approximately 4-inch pattern is particularly useful on trim, narrow cabinet components, furniture parts, profiles, frames and other workpieces where a wide production fan can increase overspray and material loss. |
| Accurate Compatible Titan Machines | This is a complete C.A. Technologies finishing system, not a Titan-manufactured pump or replacement assembly for a Titan sprayer. No direct Titan-machine fitment should be inferred. PK-OC14-PC-211 belongs to the C.A. Technologies PEAK 14:1 portable Cougar outfit family and is distinguished by its Cougar gun and 211 fluid-tip configuration. |
| Accurate Part Number | PK-OC14-PC-211 — C.A. Technologies Portable PEAK Pump Outfit with full-size Cougar 211 Air Assist Airless gun configuration. The 211 tip designation identifies a .011-inch fluid orifice with a 20-degree spray angle and an approximately 4-inch spray pattern. |
| Compatible Parts & Assemblies | The system is built around the PEAK 14:1 stainless-steel pump and stationary/no-stall pneumatic drive platform, full-size Cougar AAA gun, 211 fluid-tip configuration, integrated 2 HP compressor, onboard air storage and compact portable cart. The Cougar accepts interchangeable C.A. Technologies AAA tips, allowing fan width and orifice size to be changed for different coating and production requirements. |
| Related Parts Commonly Serviced Together | Routine service areas include the Cougar 211 fluid tip, air cap, gun seals and needle components; pump fluid-section seals and packings; pump air-motor components; material filtration; fluid and air hoses; pressure regulators; compressor filtration and compressor/tank components. Tip wear, packing condition and clean filtration should be checked whenever pressure stability or spray quality changes. |
| Common Problems Solved | Provides a portable AAA solution for finishers who cannot rely on a permanent compressed-air installation at every job. The onboard compressor supplies the pneumatic system, while the 211 configuration keeps the spray pattern concentrated on narrower workpieces. AAA atomization combines productive fluid delivery with air-assisted pattern refinement for controlled professional finishing. |
| Use with Coating Systems | The .011-inch 211 configuration is appropriate for compatible lower-viscosity professional finishing materials where controlled delivery is required. Typical applications can include stains, sealers, lacquers and suitable fine-finish coatings. Final tip selection and fluid pressure must be matched to coating viscosity, solids content, desired film build and the coating manufacturer's application requirements. |
| OEM & Brand Information | PK-OC14-PC-211 is manufactured by C.A. Technologies and should not be represented as a Titan-manufactured or Titan OEM system. It combines C.A. Technologies' PEAK Performance Series pump technology with the company's full-size Cougar Air Assist Airless spray gun in a self-contained portable configuration intended for professional finishing. |
| Commercial Benefits | The PC configuration combines pump, compressor, air storage and spray equipment on one compact mobile platform, reducing setup requirements when moving between finishing locations. Its 14:1 stainless-steel pump supports professional material delivery, while the interchangeable Cougar tip system allows the outfit to be adapted for different fan widths and coating-output requirements as production needs change. |
Contractor Selection Insight
Choose PK-OC14-PC-211 when portability and self-contained compressed air are important and your work favors the controlled output of a .011-inch tip with an approximately 4-inch fan. The PC package is fundamentally different from a simple half-inch-inlet pump: it is a portable PEAK outfit with its own compressor and air storage. For wider components, select another compatible Cougar tip while matching orifice size to the coating.
FAQ Section
Quick answers for finishers evaluating the PK-OC14-PC-211 portable PEAK Cougar system.
