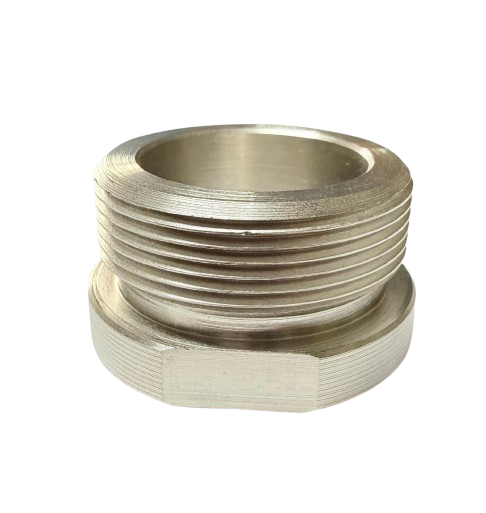

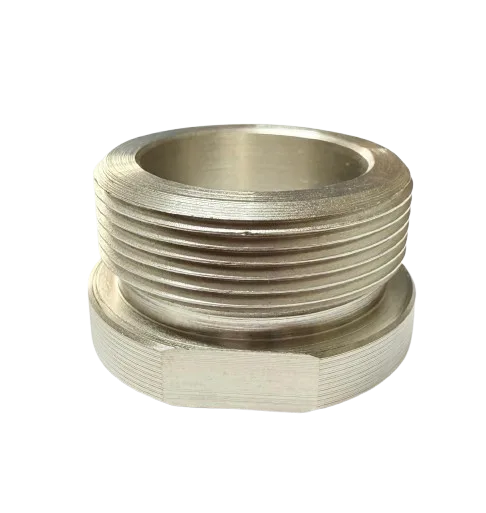

Titan 805-505 Seal Retainer
Maintain the proper positioning of your sprayer's sealing components with the Titan 805-505 Seal Retainer. This genuine Titan replacement part is designed to retain the specified seal within its designated assembly. It provides a targeted repair option when the original retainer is worn, damaged, missing, or no longer suitable for reuse.
Repair Application: Replacement of a damaged, missing, or unsuitable seal retainer.
Service Considerations: Inspect the mating seal, retaining surfaces, and adjacent components.
Fitment: Confirm using the machine's official Titan parts diagram.
Ordering Note: Part number 805-505 identifies the seal retainer only. Do not assume that a seal, fasteners, or other assembly components are included unless the product packaging specifically states otherwise.
Secure the Correct Sealing Arrangement in Your Titan Pump
The Titan 805-505 Seal Retainer is a manufacturer-listed fluid-section component for compatible Titan Impact airless sprayers. Located at the upper end of the fluid-section assembly, it supports the designated seal-retention arrangement. Replacing a damaged or missing retainer helps restore the correct mechanical configuration during pump servicing.
Compatible Titan Impact Sprayers
| Machine | Application | Documentation |
|---|---|---|
| Titan Impact 740 | Fluid section, item 1 | Titan Impact 740 parts list |
| Titan Impact 840 | Fluid section, item 1 | Titan Impact 840 service manual |
For Impact 840I, 840IA or other machine variants, confirm the exact fluid-section assembly and part number before purchase.
What Does the Titan 805-505 Seal Retainer Do?
The seal retainer forms part of the fluid section's mechanical retaining arrangement. It helps maintain the specified position of the associated sealing components within the pump assembly.
During operation, fluid-section packings and related components must remain properly positioned while the piston moves through the pump. Correctly installed retaining components support this assembly arrangement.
A damaged retainer should be evaluated together with the adjacent nut, spacer, packing assembly and housing. Replacing the retainer alone will not correct worn packings, damaged piston rods or defective check valves.
Common Problems & Inspection Points
Bent or Distorted Retainer: Inspect for deformation that prevents proper assembly.
Worn Contact Surfaces: Check for damage where the retainer interfaces with adjacent parts.
Corrosion or Physical Damage: Evaluate whether the part remains suitable for reuse.
Incorrect Assembly: Verify the installation order and orientation of the retaining and packing components.
Fluid Leakage: Inspect the entire sealing arrangement; leakage is not proof that the retainer itself is defective.
Seal Retainer Inspection & Replacement
1. Prepare the sprayer: Disconnect power and complete the manufacturer's pressure-relief procedure.
2. Access the fluid section: Follow the applicable Titan service manual to expose the retaining and packing components.
3. Inspect related components: Examine the knock-off nut, spacer, upper packing and upper housing for wear or damage.
4. Replace the retainer: Install part 805-505 in its specified position using the factory assembly sequence.
5. Reassemble correctly: Observe the manufacturer's packing orientation, lubrication and fastening instructions.
6. Test for proper operation: Prime the sprayer and inspect the fluid section for leakage and correct pressure performance.
Order Titan 805-505 Seal Retainer
Maintain the correct fluid-section assembly with a genuine Titan replacement seal retainer from AllTitanParts. Verify your sprayer's model and parts diagram, inspect the adjacent packing components and order any additional service parts needed for the repair.
Frequently Asked Questions
What is Titan 805-505 Seal Retainer?
It is a fluid-section retaining component used to support the specified sealing arrangement in compatible Titan airless sprayers.
Which Titan machines use seal retainer 805-505?
Titan's Impact 740 and Impact 840 parts manuals identify this component in their fluid-section assemblies.
Where is the seal retainer located?
It is identified as item 1 at the upper end of the referenced fluid-section exploded diagrams.
How many seal retainers does the fluid section use?
The referenced Impact 740 and Impact 840 diagrams specify one seal retainer per fluid section.
Is seal retainer 805-505 included in repacking kit 805-1010?
No. The manufacturer lists 805-505 separately from the components included in repacking kit 805-1010.
Does the retainer include seals or packings?
No additional seals or packings are established as included. They are separately identified fluid-section components.
Can a damaged seal retainer cause leakage?
A defective retaining arrangement may contribute to sealing problems, but leakage can also result from worn packings, piston damage or other fluid-section faults.
Which related components should I inspect?
Inspect the 805-449 knock-off nut, 800-327 spacer, upper packing assembly, 805-435 upper housing and piston rod as appropriate.
