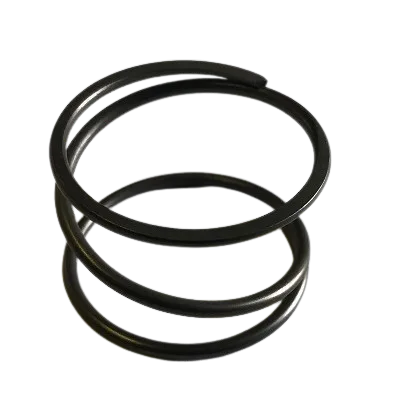

Titan 773-168 Air Cup Spring

Titan 773-168 Air Cup Spring

Sourced From:
Titan Tools Inc.

Part number 773-168 is an air cup spring designed for spray gun air cap assemblies in compatible equipment. This spring component provides proper tension and positioning for the air cap, ensuring consistent air flow and spray pattern formation during operation. It is compatible with HVLP Airspray C100 Gun, HVLP Airspray ProFinish Gun, and HVLP Airspray Profinish TS40 TS 50 models, contributing to reliable spray performance.

Part Number 773-168
Part Description Air Cup Spring
Fits Multiple HVLP Airspray models
Condition New

$20

Air Cup Spring for HVLP Airspray Guns

Part number 773-168 is an air cup spring designed for spray gun air cap assemblies in compatible HVLP equipment. This spring component provides proper tension to maintain correct air cap positioning, ensuring consistent air flow patterns and proper atomization during spraying operations.

A worn or damaged air cup spring can lead to improper air cap positioning, inconsistent spray patterns, or air leakage. Replacement with the correct spring ensures proper air cap function and consistent spray performance.

Installation Note: Ensure proper spring orientation and seating when installing. Check that the air cap moves smoothly and returns to proper position after installation.

What it does and when to replace it

What the spring provides
Proper tension Maintains correct air cap positioning
Consistent performance Ensures uniform air flow for spray patterns
Component alignment Helps maintain proper air cap orientation
When replacement is recommended
Loss of tension Spring no longer provides proper force
Visible damage Corrosion, deformation, or broken coils
Spray issues Inconsistent patterns or air cap movement problems
Missing component Spring lost during disassembly or cleaning

Compatibility

Part number 773-168 is compatible with the following HVLP Airspray gun models. Verify fitment using appropriate documentation for your specific equipment.

Model Component
HVLP Airspray C100 Gun Air Cup Spring
HVLP Airspray ProFinish Gun Air Cup Spring
HVLP Airspray Profinish TS40 TS 50 Air Cup Spring

Related parts commonly serviced together

These components are often addressed together when performing spray gun air system maintenance.

Air cap assembly

The component that the spring positions and tensions.

Nozzle components

Related spray tip and fluid delivery parts.

Seals and gaskets

Components that prevent air leakage in the assembly.

Frequently Asked Questions

It is an air cup spring that provides proper tension and positioning for air cap assemblies in compatible HVLP Airspray guns, ensuring consistent spray performance.

Indicators include loss of spring tension, visible damage such as corrosion or deformation, spray pattern inconsistencies, or when the component is missing after disassembly.

This air cup spring fits multiple HVLP Airspray models including C100 Gun, ProFinish Gun, and Profinish TS40 TS 50.
