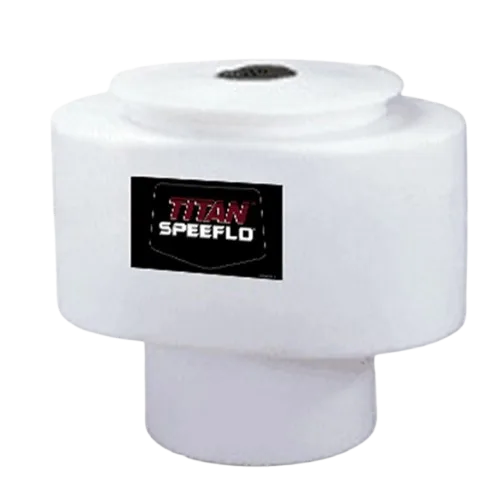

Titan 759-130 12 Gallon Hopper
$244.35
$283.80
Save 14%
Available to Order
Titan PowrLiner Paint Hopper
Titan 759-130 12 Gallon Hopper provides high-capacity paint storage for compatible PowrLiner line stripers. This genuine Titan hopper supports continuous material supply and is documented across multiple PowrLiner generations for professional pavement-marking applications.
Brand: Titan Part Number: 759-130 Type: Paint Hopper Capacity: 12 Gallons
Titan documentation identifies 759-130 as the 12-gallon paint hopper used in numerous PowrLiner assemblies. Verify the exact machine configuration and associated suction, return and mounting components when replacing an existing hopper.
Quantity
Genuine OEM Part
Fast Shipping
Easy Returns
Capacity: 12 Gallons Type: Paint Hopper System: PowrLiner Application: Line Striping Status: Genuine Titan
| Detail | Technical / Commercial Information |
|---|---|
| Product Overview | Titan 759-130 is a genuine 12-gallon paint hopper used as the onboard material reservoir on compatible Titan PowrLiner line-striping equipment. Titan parts manuals identify the hopper as a major machine component, while current accessory literature continues to list 759-130 as the 12-gallon Paint Hopper for professional line-striping applications. |
| Function | Stores pavement-marking coating onboard the line striper and provides a material source for the machine's suction system. The large reservoir allows the pump to draw coating without requiring the operator to work directly from a separate paint pail, supporting an integrated PowrLiner setup and reducing the frequency of material-container changes during production striping. |
| Industrial Applications | Designed for professional pavement-marking operations using compatible Titan PowrLiner equipment. Typical applications include parking lots, roadways, commercial properties, industrial facilities, airports and other line-striping projects where an onboard 12-gallon coating supply supports longer production runs and efficient professional workflow. |
| Accurate Compatible Titan Machines | Titan documentation confirms 759-130 in multiple PowrLiner families, including PowrLiner 4900/4900 XLT, 6900/6900 XLT and 8900/8900 XLT systems, as well as PowrLiner 4950, 6950 and 8950 generations. Titan parts and accessory documentation also associates the hopper with PowrLiner 2850, 3500/3500S, 4955, 6955 and 8955 platforms. Current Titan PowrLiner 3500 72V literature lists 759-130 as an available 12-gallon paint-hopper accessory. |
| Accurate Part Number | 759-130 — Titan 12 Gallon Hopper / Paint Hopper. Titan uses this exact part number in PowrLiner parts manuals and current accessory documentation. It is a paint-material hopper and should not be confused with Titan glass-bead hoppers or bead-dispenser assemblies, which perform a separate reflective-media application function. |
| Compatible Parts & Assemblies | The hopper operates as part of the PowrLiner material-delivery system alongside the machine's suction hose assembly, bleed or return-line assembly, pump/fluid section and cart mounting arrangement. For example, Titan documentation for PowrLiner 4900 XLT places 759-130 with the 103-841-series siphon hose and 840-218 bleed-line assembly, while other PowrLiner generations use their own corresponding suction components. |
| Related Parts Commonly Serviced Together | When replacing or servicing the hopper, inspect the machine's suction hose, inlet screening components, return or bleed hose, hose connections and mounting hardware. Also inspect the pump inlet path for dried coating or contamination. Related component part numbers vary between PowrLiner generations, so use the parts manual for the exact machine rather than assuming every hopper installation uses identical plumbing. |
| Common Problems Solved | Provides a replacement for a damaged, cracked, contaminated or otherwise unserviceable 12-gallon material reservoir on compatible PowrLiner equipment. A sound hopper helps maintain clean material storage and dependable supply to the suction system. Its 12-gallon capacity also provides contractors with greater onboard material volume than working from smaller paint containers. |
| Use with Coating Systems | Designed to hold compatible pavement-marking coatings being sprayed by the host PowrLiner. The hopper itself does not determine allowable coating chemistry, viscosity, spray pressure or tip size; those limits are governed by the specific PowrLiner pump, fluid section, gun and coating requirements. Keep the reservoir and material path clean to reduce contamination and dried-coating buildup. |
| OEM & Brand Information | Genuine Titan Tool line-striping component. Titan repeatedly identifies part 759-130 as the 12-gallon hopper or Paint Hopper in PowrLiner parts and accessory documentation. It has been used across several generations of Titan professional line-striping equipment, making exact machine identification important when selecting the associated suction, return and mounting components. |
| Commercial Benefits | A 12-gallon onboard paint supply helps professional striping crews spend more time spraying and less time changing smaller material containers. For machines originally equipped with 759-130, installing the correct genuine replacement restores the intended integrated material-storage arrangement while maintaining compatibility with the PowrLiner's associated suction and cart systems. |
Contractor Selection Insight
Choose 759-130 when your PowrLiner parts documentation specifies the 12-gallon hopper or when adding the Titan-approved hopper configuration to a compatible machine. The hopper is only one part of the material-feed system, so check the suction hose, return line, inlet components and mounting hardware before ordering—especially when converting a machine that was not previously equipped with the hopper.
FAQ Section
Quick answers for contractors selecting Titan 759-130 for PowrLiner material storage and replacement.
