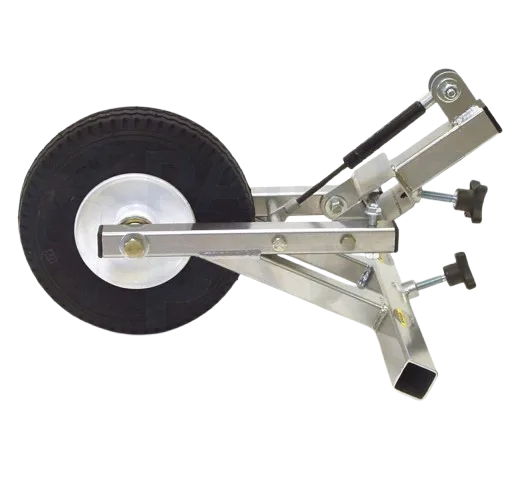

Titan 759-120 Suretrak Floating Gun Mount

Suretrak Floating Gun Mount for PowrLiner 8900, 6900, 6950, and 4900 Series Stripers

The 759-120 Suretrak floating gun mount is a specialized mounting system that allows the spray gun to maintain consistent tip-to-surface distance on compatible PowrLiner striping machines, even when operating over uneven or irregular pavement surfaces. Unlike fixed gun mounts that hold the gun rigidly to the machine frame, this floating mount incorporates vertical movement capability that enables the gun to follow surface contours as the machine moves. This surface-following technology ensures that the distance between the gun tip and the pavement remains constant, which is critical for producing uniform line width and clean edge definition across varying surface conditions.

Fixed gun mounts can cause line width variation when the machine encounters dips, crowns, or uneven sections of pavement. As the machine moves over these irregularities, the fixed gun maintains its position relative to the machine frame rather than the pavement surface, resulting in inconsistent material deposition and ragged line edges. The Suretrak floating mount addresses this challenge by incorporating durable pivot points and spring tension components that allow smooth vertical movement while maintaining precise lateral positioning. This technology is particularly valuable on older pavement surfaces, asphalt repairs, and areas where surface consistency cannot be guaranteed.
