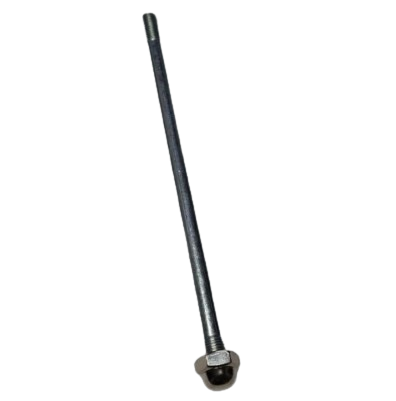

Titan 738-026A Head Bolt Assembly
OEM Titan Air Motor Fastener Component
Titan 738-026A Head Bolt Assembly is an OEM mechanical fastener component used in the air motor assembly of compatible Titan Commander and Admiral air-powered spray systems, ensuring secure clamping of cylinder heads and maintaining proper internal alignment for reliable operation.
Compatibility Overview
Replacement head bolt assembly restores proper clamping force, prevents air leaks, and maintains air motor alignment for consistent sprayer performance.
Titan Air Motor Fastener Component Replacement
Titan 738-026A Head Bolt Assembly for Commander and Admiral Air Motors
Titan 738-026A is an OEM head bolt assembly used in the air motor section of compatible Titan Commander and Admiral air-powered spray systems. This mechanical fastener secures the cylinder head to the air motor body, maintaining proper compression, alignment, and sealing for reliable pneumatic operation.
| Detail | Technical / Commercial Information |
|---|---|
| Product Overview | OEM Titan head bolt assembly used in the air motor section of compatible Commander and Admiral air-powered spray systems. Secures cylinder head components for proper pneumatic operation. |
| Function | Provides secure clamping force to hold the air motor cylinder head in place. Maintains proper compression, alignment, and sealing of internal air passages. Prevents air leaks and ensures efficient pneumatic operation. |
| Compatible Systems | Titan Commander 742-555 and 742-557 Air Motor; Titan Admiral 850-555 and 850-557 Air Motor. Verify fit using your equipment parts diagram before ordering. |
| Related Parts Commonly Serviced Together | Air motor cylinder head, gaskets and seals, washers, and other air motor fasteners. Inspect these components when replacing head bolts. |
| Common Problems Solved | Loose or stretched head bolts causing air leaks, loss of compression, head misalignment, erratic air motor operation, and reduced sprayer performance. |
| Signs Replacement Is Needed | Visible air leaks around the air motor head, loose or stripped bolt threads, bolt stretching or deformation, and difficulty maintaining consistent air pressure. |
| Installation & Maintenance | Torque to manufacturer specifications using a calibrated torque wrench. Follow the correct tightening sequence to ensure even clamping force. Inspect related gaskets and seals during installation and replace if worn or damaged. |
| Commercial Benefits | Restores proper clamping force, prevents air leaks, maintains air motor alignment, and ensures reliable sprayer operation for Commander and Admiral systems. |
The 738-026A Head Bolt Assembly is a critical mechanical fastener for maintaining air motor integrity on Commander and Admiral spray systems. Head bolts are subject to stress from pressure cycling and vibration over time. A loose, stretched, or damaged head bolt can cause air leaks, loss of compression, and erratic air motor operation. When replacing this assembly, inspect the cylinder head, gaskets, and related fasteners for signs of wear. Use a calibrated torque wrench and follow the manufacturer tightening sequence for proper installation. For related Titan air-powered sprayer components, see the Titan Air Powered Airless Sprayer Parts and Air Powered Airless Sprayer Parts collection.
Frequently Asked Questions
Quick contractor-focused answers for confirming fitment, function, and service value.
