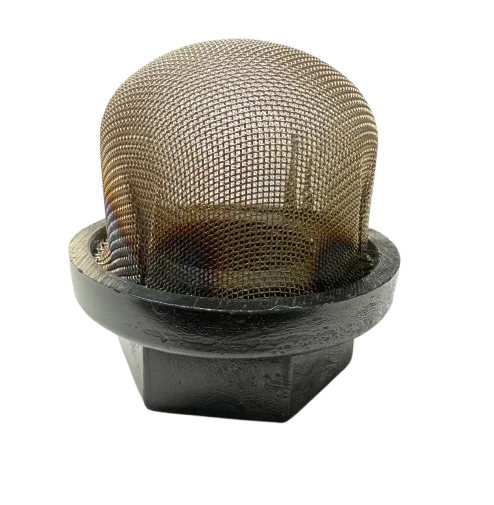

Titan part 710-191A is a 30 mesh inlet screen used to filter paint and coating materials before they enter the pump on compatible Impact, Impact X, and Elite airless sprayers. This direct‑replacement screen helps prevent debris from damaging internal pump components and clogging the spray tip.
| Part Number | 710-191A |
|---|---|
| Part Description | Inlet Screen – 30 Mesh |
| Brand | Titan |
| Fits |
|
| Condition | New |
The Titan 710-191A Inlet Screen (30 Mesh) is a genuine OEM filter that installs at the fluid inlet of compatible airless paint sprayers. Its 30‑mesh opening size captures larger particles, debris, and dried paint skins before they enter the pump, protecting the piston, packings, and spray tip from damage.
A clogged, torn, or missing inlet screen can lead to reduced paint flow, difficulty priming, erratic pressure, or pump failure due to ingested debris. Replacing the screen restores proper filtration and helps maintain sprayer reliability.
| Debris filtration | Captures particles larger than 30 mesh (approx. 600 microns) |
|---|---|
| Pump protection | Prevents abrasive or solid material from scoring the piston or damaging packings |
| Tip clog prevention | Reduces the frequency of tip blockages from large particles |
| Clogged screen | Visible debris buildup that cannot be cleaned thoroughly |
|---|---|
| Torn or damaged mesh | Holes or tears allow unfiltered material to pass through |
| Missing screen | Screen lost during servicing or dislodged from inlet fitting |
| Repeated tip clogs | Despite cleaning, tips clog often – screen may be compromised |
Titan 710-191A is compatible with the following models. Always confirm fitment using the parts diagram for your specific machine.
| Brand / Model | Component |
|---|---|
| Impact 1140 | 30 Mesh Inlet Screen |
| Impact 840 | 30 Mesh Inlet Screen |
| Impact 640 | 30 Mesh Inlet Screen |
| Impact 1140 I | 30 Mesh Inlet Screen |
| Impact 1140 IA | 30 Mesh Inlet Screen |
| Impact 1040 | 30 Mesh Inlet Screen |
| Impact 740 | 30 Mesh Inlet Screen |
| Impact 640 I | 30 Mesh Inlet Screen |
| Impact 640 IA | 30 Mesh Inlet Screen |
| Impact 840 I | 30 Mesh Inlet Screen |
| Impact 840 IA | 30 Mesh Inlet Screen |
| Impact X 540I | 30 Mesh Inlet Screen |
| Impact X 440 | 30 Mesh Inlet Screen |
| Impact X 410 | 30 Mesh Inlet Screen |
| Elite 3500 | 30 Mesh Inlet Screen |
| Elite 3500 72v | 30 Mesh Inlet Screen |
When replacing the inlet screen, these associated components are often inspected or replaced to ensure consistent sprayer performance.
Cracks or damage in the fitting can cause air leaks or poor suction. Inspect when changing the screen.
A primary strainer at the hose end catches larger debris; inspect and clean regularly.
If debris has passed through a damaged screen, inspect the pump for scoring or seal damage.
