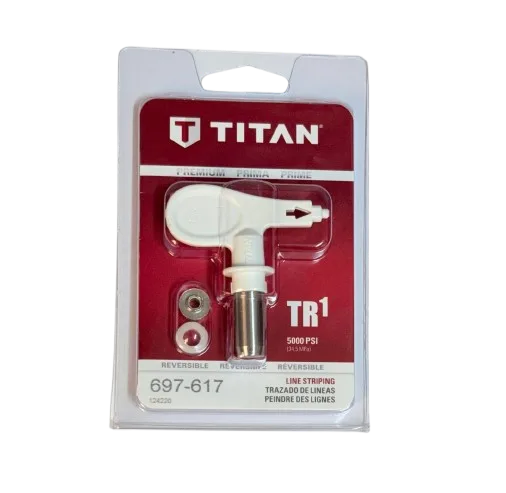

Titan 697-617 TR1 617 Line Striping Tip
TITAN TR1 REVERSIBLE LINE STRIPING TIP
Titan 697-617 TR1 617 Line Striping Tip produces a 6-inch nominal stripe through a .017-inch orifice for light-film application with most traffic paints. Its reversible airless design supports professional pavement marking with controlled coverage across a wider pattern.
Titan places 697-617 in the “Most Traffic Paints” section of its TR1 chart and classifies it for light-film application. It provides a wider 6-inch pattern than the 4-inch 697-417 while retaining the same .017-inch orifice.
| Detail | Technical / Commercial Information |
|---|---|
| Product Overview | Titan 697-617 is a genuine TR1 reversible airless line-striping tip. Titan specifies a 6-inch / 152 mm nominal line width and .017-inch / .43 mm orifice. Official Titan TR1 charts place this configuration under “Most Traffic Paints” and classify it for light-film application. |
| Function | The .017-inch opening meters coating while the tip geometry distributes the material across a 6-inch nominal pattern. Its wider fan produces lighter film than narrower TR1 tips using the same orifice. The reversible design allows the tip to be rotated to help clear certain obstructions during striping. |
| Industrial Applications | Designed for professional pavement and traffic-marking projects where a 6-inch nominal stripe with light film is required. Applications can include parking facilities, commercial properties, industrial pavement and other line-marking projects using traffic paints compatible with a .017-inch airless tip. |
| Accurate Compatible Titan Machines | Titan publishes 697-617 in official TR1 striping-tip charts supplied with multiple PowrLiner families, including PowrLiner 550, PowrLiner 850, PowrLiner 2850 and PowrLiner 3500 documentation. Compatibility requires that the specific machine and gun configuration support a .017-inch tip for the coating being sprayed. |
| Accurate Part Number | Titan 697-617 — TR1 617 Line Striping Tip. Manufacturer documentation verifies a 6-inch / 152 mm nominal stripe and .017-inch / .43 mm orifice. Titan classifies this exact configuration as light film within the “Most Traffic Paints” section of its TR1 chart. |
| Compatible Parts & Assemblies | Use with a compatible Titan airless line-striping spray gun, reversible-tip guard, tip seal, suitable filtration, high-pressure hose and PowrLiner fluid-delivery system. The gun and machine must support the .017-inch opening and the viscosity and solids content of the selected traffic coating. |
| Related Parts Commonly Serviced Together | Inspect the compatible tip guard, tip seal and retainer, gun filter, spray-gun fluid passages, high-pressure hose, machine filtration and gun-positioning hardware when replacing the tip. Worn sealing components, restrictions or incorrect gun height can affect stripe width, coating distribution and line-edge quality. |
| Common Problems Solved | Replacing a worn 697-617 can help restore the intended 6-inch pattern when abrasive wear causes poor fan definition, irregular edges or excessive coating delivery. Its reversible construction also provides a practical method for helping clear certain tip obstructions before returning to the normal spraying position. |
| Use with Coating Systems | Titan places 697-617 in the “Most Traffic Paints” category and specifies light-film application. Confirm that the selected marking paint supports a .017-inch airless opening and follow the coating manufacturer's specifications for filtration, pressure, viscosity, preparation and application conditions. |
| OEM & Brand Information | 697-617 is a genuine Titan Tool TR1 line-striping tip documented in official Titan PowrLiner manuals. Titan's TR1 family provides different fan-width and orifice combinations so contractors can match stripe dimensions and coating deposition to specific professional marking requirements. |
| Commercial Benefits | The 617 combines a wider 6-inch nominal pattern with the controlled delivery of a .017-inch opening. It gives professional contractors a manufacturer-specified light-film choice for compatible traffic paints when wider coverage is needed without increasing to a larger-orifice TR1 tip. |
Contractor Selection Insight
Choose Titan 697-617 when the project requires a 6-inch nominal traffic-marking pattern with light film and the coating supports a .017-inch airless opening. The 697-417 uses the same .017-inch orifice but concentrates material into a 4-inch pattern and is classified as medium film. For more material across a 6-inch pattern, compare the 697-619 with its larger .019-inch opening and medium-film classification.
FAQ Section
Key answers for contractors selecting Titan 697-617 TR1.
