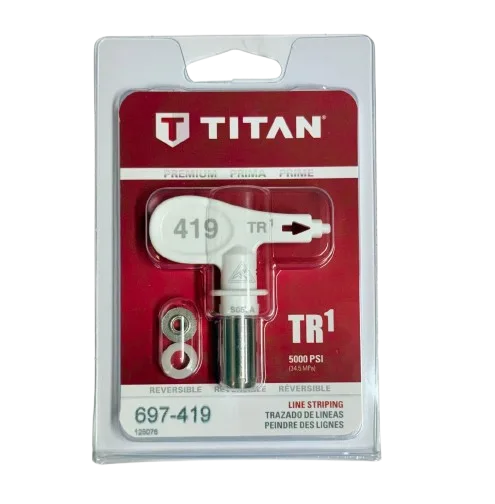

Titan 697-419 TR1 419 Line Striping Tip
TITAN TR1 REVERSIBLE LINE STRIPING TIP
Titan 697-419 TR1 419 Line Striping Tip combines a 4-inch nominal stripe with a .019-inch orifice for heavy-film application with most traffic paints. This genuine Titan reversible airless tip is documented across professional PowrLiner striping systems.
Titan classifies 697-419 for heavy-film use with most traffic paints. Titan service documentation also identifies the 419 as the specified spray tip in PowrLiner 3500/3500S and PowrLiner 4500 gun assemblies.
| Detail | Technical / Commercial Information |
|---|---|
| Product Overview | Titan 697-419 is a genuine TR1 reversible airless line-striping tip. Titan specifies a 4-inch / 102 mm nominal stripe and .019-inch / .48 mm orifice. In Titan's TR1 selection chart, this configuration is categorized for heavy-film application with most traffic paints. |
| Function | The .019-inch opening controls coating delivery while the tip geometry forms the specified 4-inch nominal striping pattern. Compared with smaller-orifice 4-inch TR1 tips, the 419 delivers more material to support heavier film build. Its reversible configuration also helps operators clear certain tip obstructions during production. |
| Industrial Applications | Designed for professional pavement and traffic-marking work requiring a conventional 4-inch nominal stripe with heavy film. Applications can include parking lots, road and traffic markings, commercial properties, industrial facilities and other compatible pavement-marking projects where the coating specification supports a .019-inch airless tip. |
| Accurate Compatible Titan Machines | Titan documents 697-419 in PowrLiner operating literature, including PowrLiner 2850 and PowrLiner 3500 families. Titan service documentation specifically identifies 697-419 as the spray tip used in documented PowrLiner 3500/3500S and PowrLiner 4500 gun assemblies. Additional PowrLiner use depends on machine tip capacity, gun count and coating requirements. |
| Accurate Part Number | Titan 697-419 — TR1 419 Line Striping Tip. Manufacturer documentation verifies a 4-inch / 102 mm nominal line width and .019-inch / .48 mm orifice. Titan categorizes this tip as a heavy-film selection for most traffic paints. |
| Compatible Parts & Assemblies | Titan service documentation pairs 697-419 with tip seal 651-020, tip seal retainer 0297007 and tip guard assembly 0289122 on documented PowrLiner 3500/3500S gun configurations. PowrLiner 4500 documentation likewise specifies the 419 tip with the compatible tip seal, retainer and guard assembly. |
| Related Parts Commonly Serviced Together | Inspect the 0289122 tip guard, 651-020 tip seal, 0297007 tip seal retainer, spray-gun fluid passages, gun filtration, high-pressure hose and machine filtration where applicable. Worn seals, restrictions or incorrect gun positioning can affect line definition, coating delivery and spray-pattern consistency. |
| Common Problems Solved | Replacing a worn 697-419 can help restore the intended 4-inch pattern when abrasive tip wear causes deteriorated edges, excessive material delivery or an enlarged spray pattern. The reversible design also provides a practical way to clear certain tip blockages before returning the tip to its normal spray position. |
| Use with Coating Systems | Titan places 697-419 in the “Most Traffic Paints” section of its TR1 chart and specifies heavy-film application. Always confirm that the selected traffic coating permits a .019-inch airless opening and match pressure, filtration, viscosity and solids content to the coating manufacturer's requirements. |
| OEM & Brand Information | 697-419 is a genuine Titan Tool TR1 line-striping spray tip documented in official Titan PowrLiner manuals and service literature. It belongs to Titan's reversible striping-tip family, providing contractors with specific fan-width and orifice combinations for matching coating delivery to professional marking requirements. |
| Commercial Benefits | The 419 configuration combines a common 4-inch professional stripe width with heavier material delivery from its .019-inch opening. For contractors using compatible traffic paints, it provides a manufacturer-specified heavy-film option while retaining the service convenience of Titan's reversible tip design. |
Contractor Selection Insight
Choose Titan 697-419 when the project requires a standard 4-inch nominal stripe with heavier film build from a compatible traffic paint. The .019-inch opening delivers more material than the .017-inch 697-417, which Titan classifies as medium film. Titan also specifies the 419 in documented PowrLiner 3500/3500S and PowrLiner 4500 gun assemblies, making it an important production striping tip within the TR1 range.
FAQ Section
Key answers for contractors selecting Titan 697-419 TR1.
