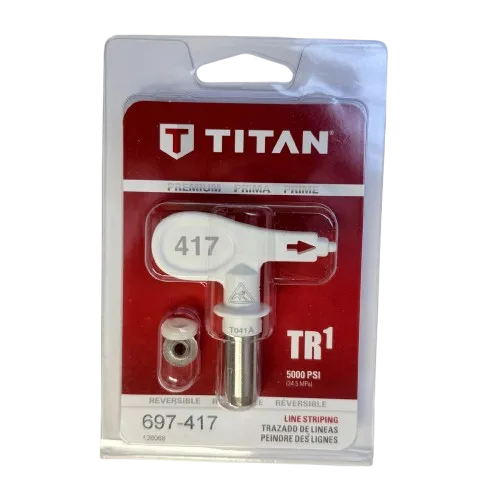

Titan 697-417 TR1 417 Line Striping tip
TITAN TR1 REVERSIBLE LINE STRIPING TIP
Titan 697-417 TR1 417 Line Striping Tip combines a 4-inch nominal stripe with a .017-inch orifice for medium-film application with most traffic paints. Its reversible design supports professional pavement marking, consistent line width, and efficient tip-clearing during striping.
Titan places 697-417 in the “Most Traffic Paints” section of its TR1 chart and specifies medium-film application. It is also documented as the tip assembly used on the PowrLiner 850 spray-gun assembly.
| Detail | Technical / Commercial Information |
|---|---|
| Product Overview | Titan 697-417 is a genuine TR1 reversible airless line-striping tip. Titan specifies a 4-inch / 102 mm nominal line width and .017-inch / .43 mm orifice. It is classified as a medium-film tip in the “Most Traffic Paints” section of Titan's professional striping-tip chart. |
| Function | The .017-inch orifice meters coating while the tip geometry creates the 4-inch nominal striping pattern. The reversible design allows the operator to rotate the tip to help clear certain obstructions and then return it to its normal spraying position, reducing interruption during professional marking work. |
| Industrial Applications | Designed for professional pavement and traffic-marking applications requiring a conventional 4-inch nominal stripe with medium film. Suitable applications can include parking lots, commercial facilities, industrial pavement, traffic-control layouts and other professional line-marking projects using compatible traffic paint. |
| Accurate Compatible Titan Machines | Titan documents 697-417 throughout PowrLiner literature, including PowrLiner 550, PowrLiner 850, PowrLiner 2850 and PowrLiner 3500 documentation. The PowrLiner 850 parts documentation specifically identifies 697-417 as its spray-gun tip assembly. Other PowrLiner use depends on the machine's tip capacity, gun configuration and coating requirements. |
| Accurate Part Number | Titan 697-417 — TR1 417 Line Striping Tip. Manufacturer documentation verifies a 4-inch / 102 mm nominal stripe and .017-inch / .43 mm orifice, with medium-film classification for most traffic paints. |
| Compatible Parts & Assemblies | Titan's PowrLiner 850 spray-gun assembly documents 697-417 with tip guard 0289228, tip seal retainer 0297007, tip seal 651-020, spray-gun assembly 759-369 and white medium filter 581-060. Use only compatible guard, seal and filtration components for the installed Titan gun configuration. |
| Related Parts Commonly Serviced Together | Inspect the reversible-tip guard, tip seal and retainer, gun filter, spray-gun fluid passages, high-pressure hose connections and machine filtration when replacing the tip. On documented PowrLiner 850 assemblies, related components include 0289228, 0297007, 651-020, 759-369 and 581-060. |
| Common Problems Solved | Replacement can help restore the intended spray pattern when a worn tip produces deteriorated line edges, excessive material delivery or inconsistent fan definition. Its reversible construction also provides a convenient method for clearing certain tip obstructions during striping without immediately disassembling the gun. |
| Use with Coating Systems | Titan categorizes 697-417 for medium-film application with most traffic paints. The actual coating must still be approved for a .017-inch airless tip, and correct pressure, filtration, viscosity and solids content should be confirmed from the coating manufacturer's application specifications. |
| OEM & Brand Information | 697-417 is a genuine Titan Tool TR1 line-striping tip documented in official Titan PowrLiner operating and parts literature. It belongs to Titan's professional reversible striping-tip range, which provides different fan widths and orifice sizes for matching coating delivery to specific marking requirements. |
| Commercial Benefits | The 417 configuration pairs a widely used 4-inch nominal marking width with a .017-inch opening and Titan's medium-film classification for most traffic paints. It offers professional striping contractors a balanced choice between the lighter-output 413/415 configurations and heavier-film 419/421 options. |
Contractor Selection Insight
Choose Titan 697-417 when the job calls for the common 4-inch nominal stripe with medium film from a compatible traffic paint. Compared with 697-415, the .017-inch 417 provides greater material delivery; compared with the .019-inch 697-419, it provides less material and carries Titan's medium-film rather than heavy-film classification. This makes the 417 a practical middle selection within Titan's 4-inch TR1 range.
FAQ Section
Key answers for contractors selecting Titan 697-417 TR1.
