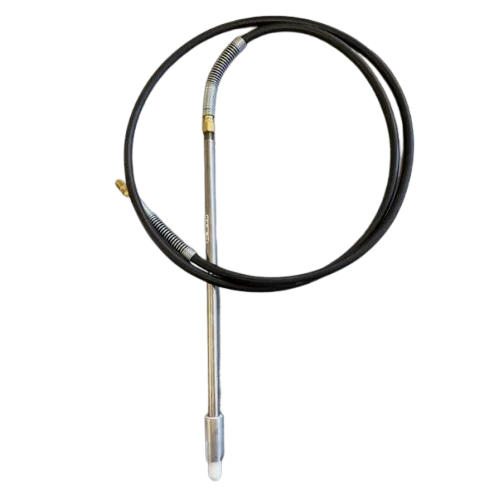

Titan 335-590A Bleed Line Assembly

Bleed Line Assembly for PowrTwin and PowrLiner Series Equipment

The PowrTwin 335-590A Bleed line assembly is a complete fluid conveyance component designed to relieve system pressure and return excess material to the supply tank during recirculation or idle periods. On compatible equipment including the PowrTwin 4900, 6900, 8900, and 12000 Plus, as well as PowrLiner 6950_1, 6950, 4950, 4955, 6955, and 8955 models, this bleed line assembly is essential for proper pressure regulation and material management. When the sprayer or striping machine is not actively spraying, the bleed line allows fluid to recirculate back to the tank, preventing dangerous pressure buildup and reducing material settling. A cracked bleed line creates external leakage, causing material waste and cleanup hazards. A kinked or crushed line prevents proper recirculation, leading to pressure spikes, component stress, or erratic spray performance. A clogged line from dried material can cause complete loss of pressure regulation. Over time, exposure to solvents, abrasives, temperature cycling, and flexing can cause line materials to harden, crack, or become blocked. Replacing a damaged bleed line assembly restores proper pressure relief, recirculation flow, and system protection. This genuine PowrTwin replacement assembly meets original equipment specifications for hose material, inner diameter, length, pressure rating, fitting compatibility, and chemical resistance. When installing a new bleed line assembly, inspect all fittings and connections for damage, route the line away from hot or moving parts, avoid sharp bends or kinking, and secure with appropriate clamps. Users should always verify compatibility with their specific model and revision before installation. Regular inspection of bleed line assemblies for cracks, kinks, or blockages should be part of preventive maintenance programs.
