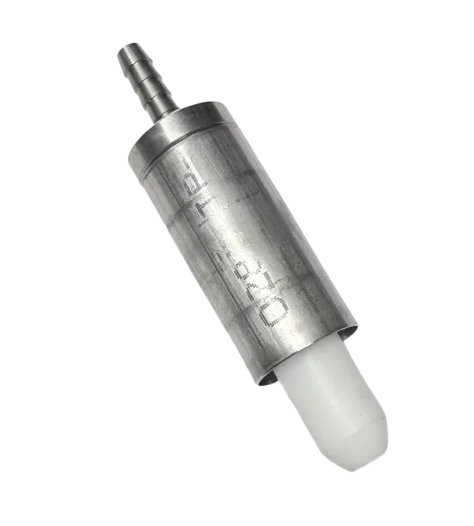

Titan 2424122 Diffuser Assembly
Part 2424122 is a diffuser assembly used to control paint atomization and stabilize spray flow on compatible PowrLiner stripers. This genuine OEM component regulates the paint as it exits the pump, reducing pulsation and ensuring even dispersion for clean, sharp lines. A worn or damaged diffuser can cause uneven patterns, poor coverage, and inconsistent spray pressure. Replacing with this genuine assembly restores factory-level performance and professional-quality finishes on multiple PowrLiner models.
| Part Number | 2424122 |
|---|---|
| Part Description | Diffuser Assembly |
| Brand | PowrLiner (Titan OEM) |
| Fits | PowrLiner 4500, 3000, 3500S (Suffixed Unit), 3500 72v (Honda GXE), 5500 |
| Condition | New |
Diffuser Assembly for PowrLiner Stripers
The 2424122 Diffuser Assembly is a genuine OEM component designed for PowrLiner line striping machines. It plays a vital role in controlling paint atomization and spray pattern by regulating flow as material exits the pump and passes through the spray gun. This precision-engineered assembly ensures balanced atomization, reduced pulsation, and even paint dispersion for clean, sharp lines.
Constructed from corrosion-resistant stainless steel and high-strength polymer materials, this diffuser is built to withstand demanding industrial use . Its precision-machined structure ensures tight sealing, proper fluid control, and minimal turbulence within the spray gun assembly. A worn or damaged diffuser can cause uneven patterns, poor coverage, inconsistent spray pressure, and paint waste . Replacing with this genuine assembly restores optimal spray performance and ensures professional-quality finishes on every job.
What it does and when to replace it
| Atomization control | Regulates paint flow for even dispersion and consistent pattern |
|---|---|
| Pulsation reduction | Minimizes pressure surges that can distort line quality |
| Flow stabilization | Ensures steady material delivery to the spray tip |
| Pattern precision | Maintains sharp, well-defined edges at various walking speeds |
| Uneven patterns | Spray pattern becomes inconsistent or distorted |
|---|---|
| Poor coverage | Material does not apply evenly across the line width |
| Pressure fluctuations | Inconsistent spray pressure during operation |
| Physical wear | Visible damage, cracking, or deterioration of components |
Compatibility
Part 2424122 is compatible with the following PowrLiner models. Always confirm fitment using the correct parts diagram for your exact model and revision.
| PowrLiner Model | Component |
|---|---|
| PowrLiner 4500 | Diffuser Assembly |
| PowrLiner 3000 | Diffuser Assembly |
| PowrLiner 3500S (Suffixed Unit) | Diffuser Assembly |
| PowrLiner 3500 72v (Honda GXE) | Diffuser Assembly |
| PowrLiner 5500 | Diffuser Assembly |
Related parts commonly serviced together
When replacing the diffuser assembly, consider inspecting these associated components.
Check for wear that could affect pattern quality with new diffuser.
Ensure clean material supply to protect new diffuser from debris.
Inspect for leaks at diffuser mounting points.
