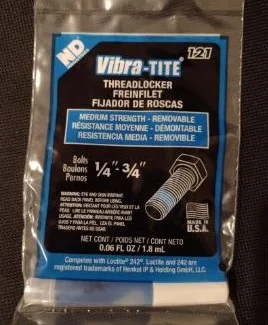

Titan 12118 Vibra Tite Thread Locker, 1.8ml Blue Bullet Tube
OEM Titan Threadlocker Compound
Titan 12118 Vibra Tite Thread Locker is a medium-strength anaerobic compound supplied in a 1.8ml blue bullet tube. It locks and seals threaded fasteners against shock and vibration while allowing disassembly with standard hand tools.
Specifications
For use on clean, dry, oil-free threads. Apply to threaded components under 1 inch in diameter. Allows disassembly with standard hand tools when service is required.
Titan Adhesives and Sealants
Titan 12118 Vibra Tite Thread Locker for Sprayer Fastener Service
Titan 12118 is a Vibra-Tite 121 medium-strength anaerobic threadlocker supplied in a 1.8ml blue bullet tube. It locks and seals threaded fasteners against shock and vibration while remaining removable with standard hand tools for service and repair.
| Detail | Technical / Commercial Information |
|---|---|
| Product Overview | Vibra-Tite 121 medium-strength anaerobic threadlocking compound in a 1.8ml blue bullet tube. Designed for locking threaded fasteners that require disassembly with standard hand tools. |
| Function | Locks and seals threaded fasteners against loosening caused by shock and vibration. The anaerobic formula cures in the absence of air between mating threads, filling the thread gap to create a solid assembly. |
| Technical Specifications | Chemical Type: Anaerobic. Color: Blue. Viscosity: 900 to 1,500 cP at 25°C. Specific Gravity: 1.00. Fixture Time: 15 to 20 minutes at 72°F. Full Cure: 24 hours at 72°F. Temperature Range: -60°F to 300°F. |
| Performance Data | Breakaway strength on 3/8 inch plain steel nut and bolt: 50 to 150 lb-in at 1 hour, 75 to 150 lb-in at 24 hours. Zinc finish: 60 to 100 lb-in at 24 hours. Resistant to heat, engine oil, brake fluid, water, and fuels. |
| Recommended Applications | Threaded components under 1 inch in diameter. Suitable for aluminum, steel, plated parts, stainless steel, and special alloy parts. Common uses include sprayer pump fasteners, manifold bolts, and valve body screws where vibration resistance is required. |
| Specifications Met | MIL-S-46163A, ASTM D-5363, and NSF non-food listings. |
| Instructions for Use | Ensure parts are clean, dry, and free from oil and grease. Apply compound to threaded components. Assemble and tighten to specification. Allow 15 to 20 minutes fixture time before handling, and 24 hours for full cure before subjecting to full load. |
| Target Users / Markets | Painting contractors, rental fleets, maintenance crews, and repair shops servicing Titan airless sprayers and related equipment. |
| Commercial Benefits | Provides reliable vibration-resistant fastener locking, allows service disassembly with hand tools, and eliminates the need for lock washers or mechanical locking devices. |
The 12118 Vibra Tite Thread Locker is a medium-strength compound intended for fasteners that may require future disassembly. For permanent locking applications, a high-strength threadlocker should be used instead. Always clean threads thoroughly before application to ensure proper cure and adhesion.
