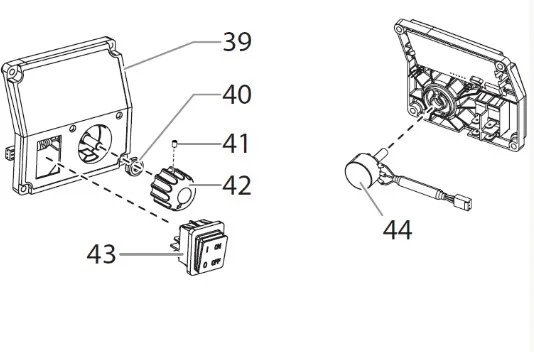

Titan 0552550A Control Panel Assembly

Titan 0552550A Control Panel Assembly

Sourced From:
Titan Tools Inc.



Impact part 0552550A is a complete control panel assembly used to manage and monitor sprayer operations on compatible Impact models. When the original control panel becomes damaged, malfunctions, or develops electrical issues, it can cause operational failures, inaccurate readings, or loss of control functions. This assembly restores proper interface functionality, electrical controls, and operational monitoring for reliable sprayer performance.

Assembly Includes:
  • Control panel housing and mounting frame
  • All switches, buttons, and control interfaces
  • Indicator lights and display components
  • Wiring harness with connectors
  • Circuit boards and electronic controls
  • All necessary mounting hardware
  • Labels and instructional markings
Part Number 0552550A
Part Description Control Panel Assembly
Brand Impact
Fits Impact 740, 1040
Condition New

Retail Price: $262.2
You save: $36.45 (13.90%)
Our Price: $225.75



Complete Control Panel Assembly for Impact 740 & 1040 Sprayers

The Impact 0552550A Control Panel Assembly is the central command interface for compatible Impact sprayers. This complete assembly provides operators with all necessary controls, indicators, and monitoring capabilities to operate the sprayer efficiently and safely. It integrates electrical controls, safety features, and operational feedback in one comprehensive unit.

A malfunctioning control panel can lead to operational failures, inaccurate pressure readings, safety system bypasses, or complete loss of sprayer control. Replacing the complete assembly ensures all interface components, electrical connections, and control systems are properly integrated and functioning as designed.

Electrical Safety Note: Always disconnect power before servicing control panel components. The control panel manages critical safety functions including emergency shutdown, pressure limits, and motor controls. Proper installation is essential for safe operation.

What it does and when to replace it

What the control panel assembly does
Operation control Manages all sprayer functions including power, pressure, and flow
Safety management Controls emergency stops, overload protection, and safety interlocks
System monitoring Provides status indicators, pressure readings, and fault diagnostics
User interface Offers intuitive controls and feedback for operator efficiency
When replacement is recommended
Multiple failures Several controls or indicators malfunction simultaneously
Water/chemical damage Corrosion or contamination affecting multiple components
Physical damage Cracked housing, broken switches, or damaged connectors
Electrical issues Intermittent power, shorts, or unresolved electrical faults

Compatibility

Impact part 0552550A is designed specifically for the following model series. This complete assembly includes all necessary components and hardware for a full control panel replacement.

Model Component
Impact 740 Complete Control Panel Assembly
Impact 1040 Complete Control Panel Assembly

Related parts commonly serviced together

When replacing a control panel assembly, these related electrical and control components are often inspected or replaced to ensure complete system functionality.

Wiring harness

The complete wiring system connecting the control panel to other components.

Pressure gauge

Instrument that provides pressure readings to the control panel.

Circuit breakers/fuses

Protection devices that work with the control panel's safety systems.

Frequently Asked Questions

The complete assembly includes: control panel housing and mounting frame, all switches, buttons, and control interfaces, indicator lights and display components, wiring harness with connectors, circuit boards and electronic controls, all necessary mounting hardware, and labels/instructional markings. This provides a complete replacement for the operator interface portion of compatible Impact sprayers.

Complete assembly replacement is recommended when: multiple controls or indicators are malfunctioning, there's evidence of water or chemical damage affecting several components, the housing is physically damaged compromising the entire assembly, or when there are persistent electrical issues that can't be traced to a single component. Replacing the complete assembly ensures compatibility between all components and often proves more cost-effective than replacing multiple individual parts separately.

Installation requires electrical knowledge and understanding of sprayer control systems. If you have experience with electrical components, can follow wiring diagrams, and understand safety procedures, you may be able to install it yourself. However, professional installation is recommended for most users because: 1) The control panel manages critical safety functions, 2) Proper wiring connections are essential for safe operation, 3) Calibration may be required for pressure gauges or sensors, and 4) Testing of all safety functions should be performed after installation.

After installation, several procedures are recommended: 1) Verify all wiring connections are secure and properly routed, 2) Test each control function individually (power switches, pressure controls, safety stops), 3) Check indicator lights and displays for proper operation, 4) Calibrate pressure gauges if they show inaccurate readings, 5) Test the emergency stop function to ensure it works properly, and 6) Perform a full operational test of the sprayer. Consult your Impact sprayer service manual for specific calibration procedures for your model.
