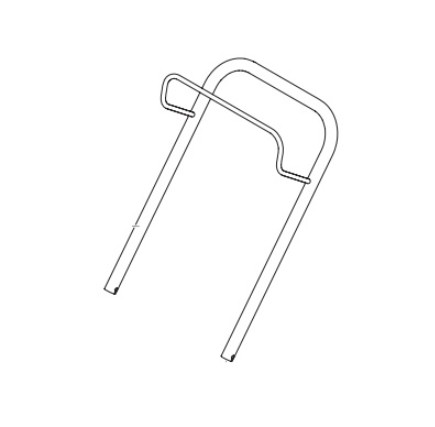

Part number 0537215A is a packaged Handle assembly that provides the primary operator interface and structural support for compatible Elite series sprayer systems. This complete assembly enables safe maneuverability and precise control of the unit during operation and transport.
| Part Number | 0537215A |
|---|---|
| Part Description | Handle PKGD |
| Fits | Elite 3500 72v; Elite 3500; Elite 5500 |
| Condition | New |
Part number 0537215A is a complete packaged Handle assembly specifically engineered for the Titan Elite 3500 72v battery-powered sprayer, the Elite 3500, and the Elite 5500 gas-powered sprayer systems. The Elite 3500 72v features advanced PermaStroke Technology with no piston, packings, or clutch to wear out, and is powered by a Honda eGX brushless DC motor that closely matches the performance of a conventional gas engine [citation:1][citation:3][citation:5]. The Elite 5500 is a gas engine-driven high-pressure paint sprayer that delivers up to 3300 psi for demanding professional applications [citation:2]. This handle assembly provides the primary operator interface, enabling safe maneuverability of the unit across job sites and precise control during spraying operations.
Fabricated from heavy-duty materials with a durable finish, this handle withstands the rigors of continuous professional use. The packaged assembly includes all necessary mounting hardware for a complete, ready-to-install replacement. The ergonomic design ensures comfortable grip and optimal control, reducing operator fatigue during extended spraying sessions. The handle also serves as a mounting point for the control panel, keeping all operator controls within easy reach.
This handle assembly is subjected to continuous stress during transport over rough terrain and operation. Failure modes include bending or cracking from impact, corrosion, and wear of mounting points. A damaged or missing handle compromises operator safety and equipment maneuverability. Replacement with genuine 0537215A handle restores proper control and ensures safe, reliable operation of Elite series sprayers.
| Operator Interface | Provides ergonomic grip for maneuvering and controlling the sprayer |
|---|---|
| Control Panel Mounting | Secures operator controls within easy reach during operation |
| Structural Support | Withstands transport and operational stresses |
| Physical Damage | Handle is bent, cracked, or has broken mounting points |
|---|---|
| Corrosion | Severe rust has compromised structural integrity |
| Loose Mounting | Mounting holes are elongated or stripped, preventing secure attachment |
| Instability | Handle wobbles or does not provide stable control |
Part number 0537215A is specifically designed for the Titan Elite 3500 72v battery-powered sprayer, the Elite 3500, and the Elite 5500 gas-powered sprayer systems. The Elite 3500 72v features PermaStroke Technology and is powered by a Honda eGX brushless DC motor [citation:1][citation:3][citation:5]. The Elite 5500 is a gas engine-driven high-pressure sprayer delivering up to 3300 psi [citation:2]. These professional units share common handle architecture requiring this specific assembly. Always confirm fitment using the correct parts diagram for your exact model and serial number.
| Compatible Models | Component |
|---|---|
| Elite 3500 72v | Handle PKGD |
| Elite 3500 | |
| Elite 5500 |
The handle assembly is the foundation of the operator control station. When servicing this component, these related parts are often inspected or replaced at the same time.
The control panel mounts directly to the handle. Inspect for damage and ensure all fasteners are secure.
Bolts, washers, and lock nuts securing the handle to the frame. Replace if corroded or damaged.
Often mounted on handle. Inspect for damage during handle replacement.
