Titan 0522027 Capacitor Assembly

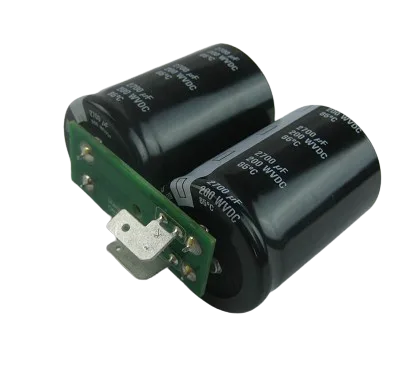

Maintain the specified motor electrical system with the Titan 0522027 Capacitor Assembly, a replacement electrical component identified in the Titan Impact 740 drive assembly. Designed for the machine's motor circuitry, this assembly supports the manufacturer's intended electrical configuration and provides a targeted replacement when capacitor failure has been confirmed through proper diagnosis.
Documented Fitment: Titan Impact 740, subject to machine revision.
Related Components: Titan 805-265A Motor Assembly and 805-839 Motor Controller.
Repair Application: Replacement of a diagnosed defective capacitor assembly.
Ordering & Safety Note: Match part number 0522027 to your sprayer's official parts diagram. Capacitors can retain hazardous electrical charge after power is disconnected. Electrical diagnosis and replacement should be performed by qualified service personnel.
Maintain the Electrical Integrity of Your Titan Impact Sprayer
The Titan 0522027 Capacitor Assembly is a manufacturer-listed electrical replacement component for compatible Titan Impact 740 and Impact 840 airless paint sprayers. Identified in the motor and drive assembly diagrams, this capacitor forms part of the machine's electrical system. When testing confirms capacitor failure, the correct replacement helps restore the specified electrical configuration and supports reliable operation of the sprayer's motor system.
Compatible Titan Airless Sprayers
| Titan Machine | Documented Application | Fitment Status |
|---|---|---|
| Impact 740 | Drive assembly, item 13 | Listed in Titan service manual |
| Impact 840 | Drive assembly, item 13 | Listed in Titan parts documentation |
Additional models or production variants should not be assumed compatible unless their manufacturer parts diagrams specifically identify 0522027.
What Does Titan 0522027 Capacitor Assembly Do?
A capacitor is an electrical component that stores and releases electrical energy. Titan identifies capacitor assembly 0522027 as part of the motor and drive electrical arrangement used in the documented Impact machines.
Within motor circuits, capacitors may perform functions such as electrical filtering, suppression, or motor-operation support, depending on the circuit design. The specific function of this assembly must be established from Titan's electrical schematic rather than assumed from its product name alone.
Replacing a failed capacitor assembly can correct a fault attributable to that component, but will not repair unrelated problems involving the motor, controller, wiring, power supply, or pressure-control system.
Signs That the Capacitor Assembly May Need Inspection
Motor Does Not Start: A capacitor or another electrical component may be defective. Proper diagnosis is required.
Intermittent Operation: Damaged wiring, loose terminals, faulty controllers, or capacitor defects may produce inconsistent operation.
Visible Electrical Damage: Physical distortion, leakage, corrosion, or heat damage should be evaluated by a qualified technician.
Repeated Electrical Shutdown: Check the broader electrical system rather than assuming the capacitor is responsible.
Previous Incorrect Replacement: Verify that the installed component matches the manufacturer-specified part number and electrical requirements.
Capacitor Assembly Inspection & Replacement
1. Disconnect the sprayer. Turn off and unplug the machine. Follow the pressure-relief instructions in the Titan service manual.
2. Observe capacitor safety. Capacitors can retain dangerous electrical charge after power is disconnected. Do not touch terminals or attempt informal discharge methods.
3. Confirm the correct part. Compare the machine's model, production configuration, and service diagram with part number 0522027.
4. Diagnose the circuit. A qualified service technician should test the electrical system using manufacturer-approved procedures and suitable equipment.
5. Replace the failed assembly. Install the specified part using Titan's electrical schematic, mounting arrangement, and service instructions.
6. Verify safe operation. Restore all covers and guards, inspect the electrical connections, and complete the required operational checks before returning the machine to service.
Related Parts Commonly Inspected During Electrical Repairs
These are related service components, not confirmed contents of the 0522027 package.
Order Titan 0522027 Capacitor Assembly
Find the correct replacement capacitor assembly for your compatible Titan Impact 740 or Impact 840 at AllTitanParts. Verify your machine's parts diagram, confirm the diagnosed electrical fault, and order the required service components for a complete, manufacturer-aligned repair.
Frequently Asked Questions
Answers about compatibility, electrical operation, package contents, and safe replacement.
What is Titan 0522027 Capacitor Assembly?
It is an electrical capacitor assembly identified in the motor and drive parts diagrams for compatible Titan Impact airless sprayers.
Which Titan machines use capacitor assembly 0522027?
Titan's parts documentation lists it for the Impact 740 and Impact 840. Confirm the exact machine revision before ordering.
How many capacitor assemblies are used?
The referenced drive assembly diagrams specify one capacitor assembly per machine.
Is this a motor start capacitor or a run capacitor?
The parts list identifies it as a capacitor assembly without establishing its precise circuit classification. Confirm the function and specifications from the applicable electrical documentation.
Will replacing the capacitor fix a motor that will not start?
Only if diagnosis confirms capacitor failure as the cause. A motor, controller, wiring, power supply, or sensor problem can produce similar symptoms.
Does the assembly include the motor controller?
No motor controller is established as part of the capacitor package. Titan lists the controller as a separate service component.
Can I replace it with a capacitor that looks similar?
Do not substitute based on appearance. Electrical rating, terminal arrangement, and manufacturer compatibility must be verified.
Who should replace Titan 0522027?
An authorized service center or qualified electrical service technician should perform diagnosis and replacement because capacitors can retain hazardous electrical charge.
No reviews yet. Be the first to review this product!
